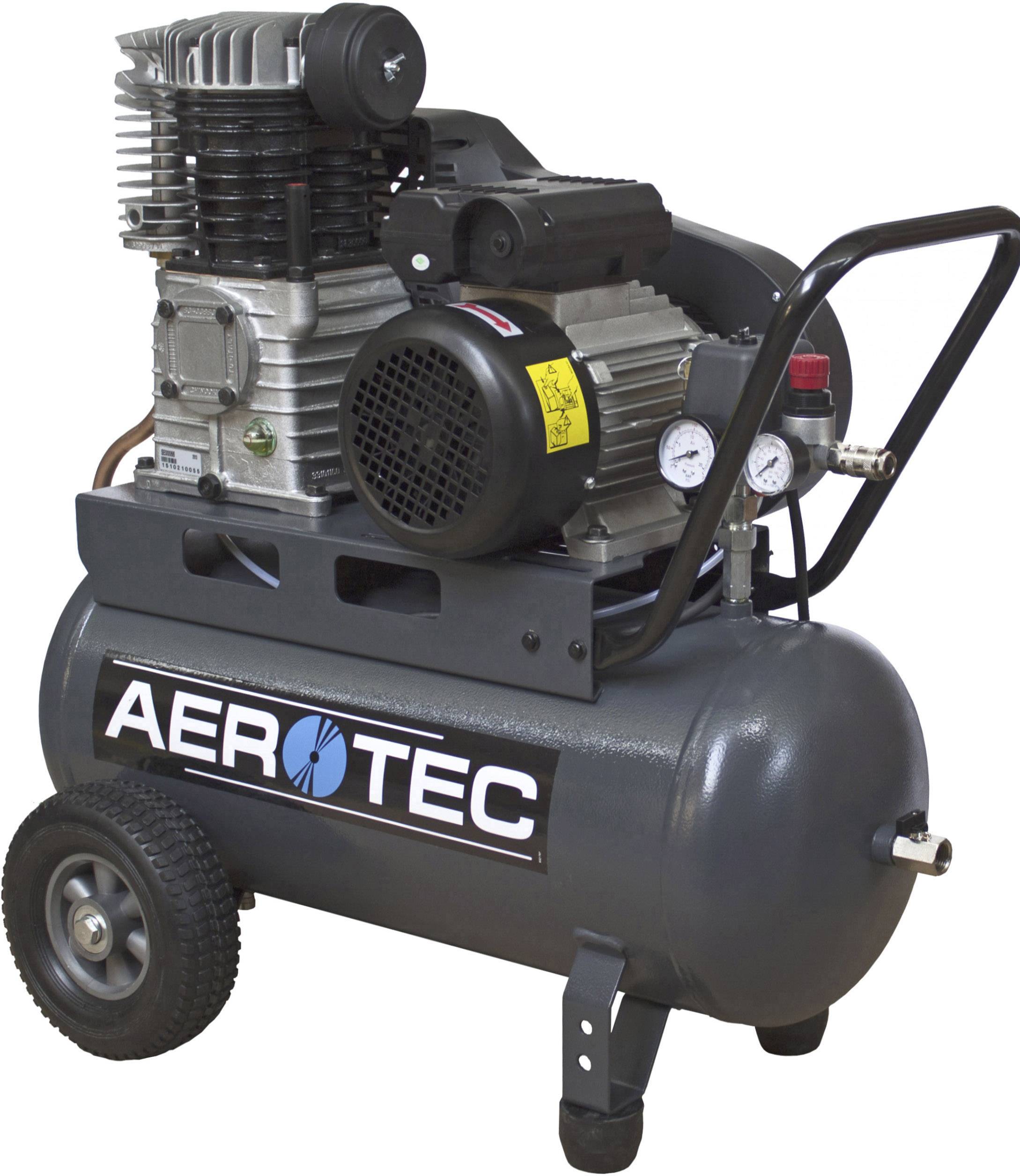

Aerotec Air compressor 550-50 PRO CT3 50 l 10 bar
EAN:
Part number:
Item no:
Highlights & Details
Compressor 550-50 PRO CT3
- Contents: 50 l
Technical specifications
- Product type
Air compressor
- No. of cylinders
2
3 BHP
- Vaccum power
550 l/min
- Flow rate
330 l/min
- Operation pressure
10 bar
- Rotational speed (max.)
1200 U/min
- Boiler volume
50 l
- Operating voltage
400 V
- Length
860 mm
- Width
380 mm
- Height
770 mm
- Weight
56 kg
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1591713 Aerotec Air compressor 550-50 PRO CT3 50 l 10 bar
Description
Compressor with v-belt-operating industrial unit 1-stage of the PRO series with a very high degree of efficiency. Very quiet and for the toughest of conditions in the manual work.
Features
- Pressure gauge and pressure regulator are safe to tank console vertaut. With extra large pressure regulator and 63 mm pressure gauges
- wheeled piston compressor in oil-lubricated industrial design
- V-belt-operated 2-Cylinder Longlife-unit with very high degree of efficiency
- Including Pressure reducer for exact output pressure setting
- Anlaufentlasstung via Condor Pressure Switch
- With large profiled, ball-bearing rubber wheels
- Condensate drain is done with the ball valve.
Hints
This text is machine translated.
