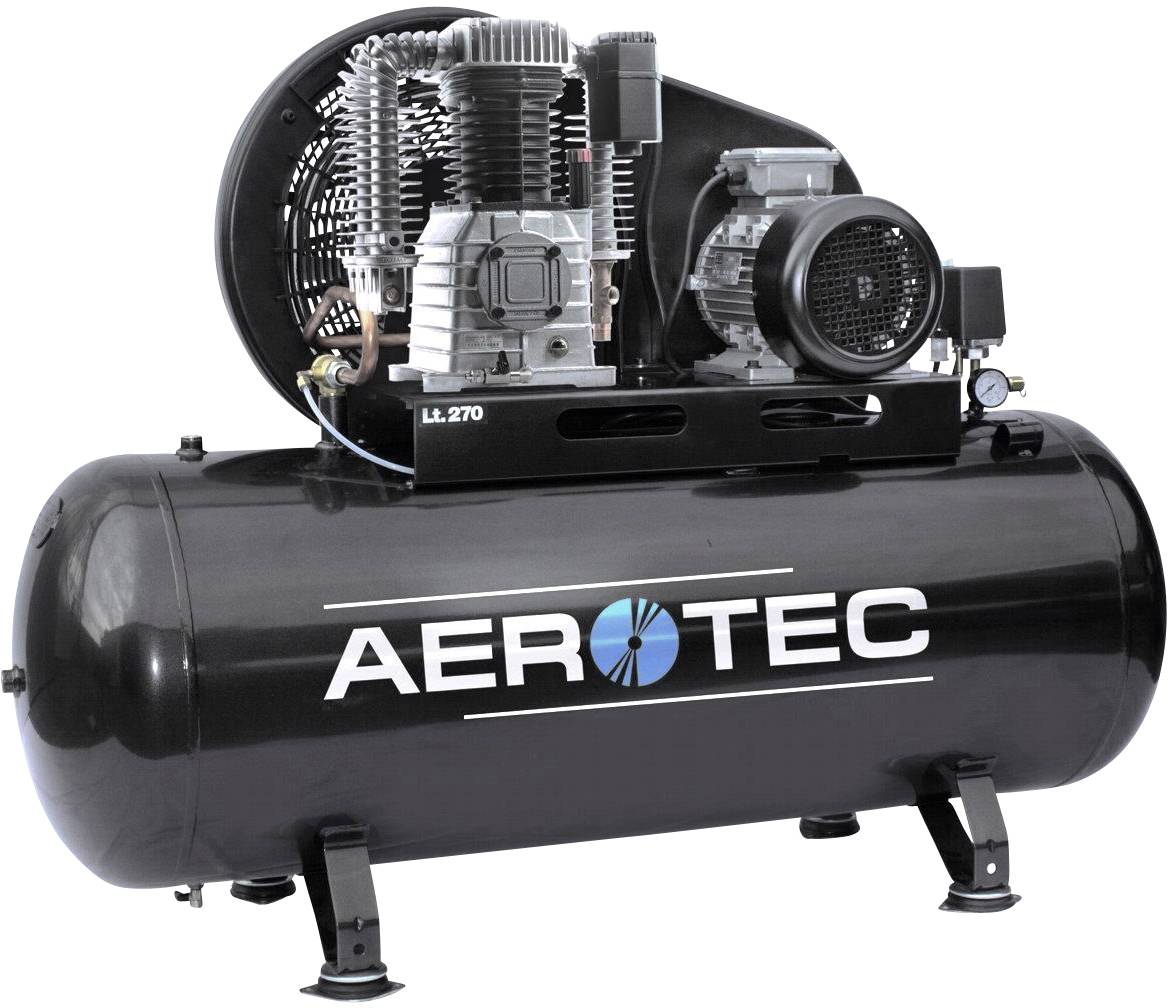

Aerotec Air compressor 650-270 PRO-10 270 l 10 bar
EAN:
Part number:
Item no:
Highlights & Details
AEROTEC 650-270 PRO-10 bar lying AD2000 -K25
- Boiler volume: 270 l
Technical specifications
- Product type
Air compressor
- No. of cylinders
2
4 kW
- Vaccum power
620 l/min
- Flow rate
490 l/min
- Operation pressure
10 bar
- Rotational speed (max.)
1200 U/min
- Boiler volume
270 l
- Operating voltage
400 V
- Length
1570 mm
- Width
590 mm
- Height
1150 mm
- Weight
180 kg
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2187775 Aerotec Air compressor 650-270 PRO-10 270 l 10 bar
Description
Features
- Compressor system with attached compressed air tank
- Oil-lubricated 2-stage unit
- Supplied with vibration damper set for vibration-free operation
- All systems are equipped with a Condor pressure switch
- The condensate drain is done by means of a ball valve
- Automatic boiler drainage for all compressors available under article no.: 2009698.
- This text is machine translated.
