Aerotec Air compressor 820-90 PRO 90 l 10 bar
EAN:
Part number:
Item no:
Highlights & Details

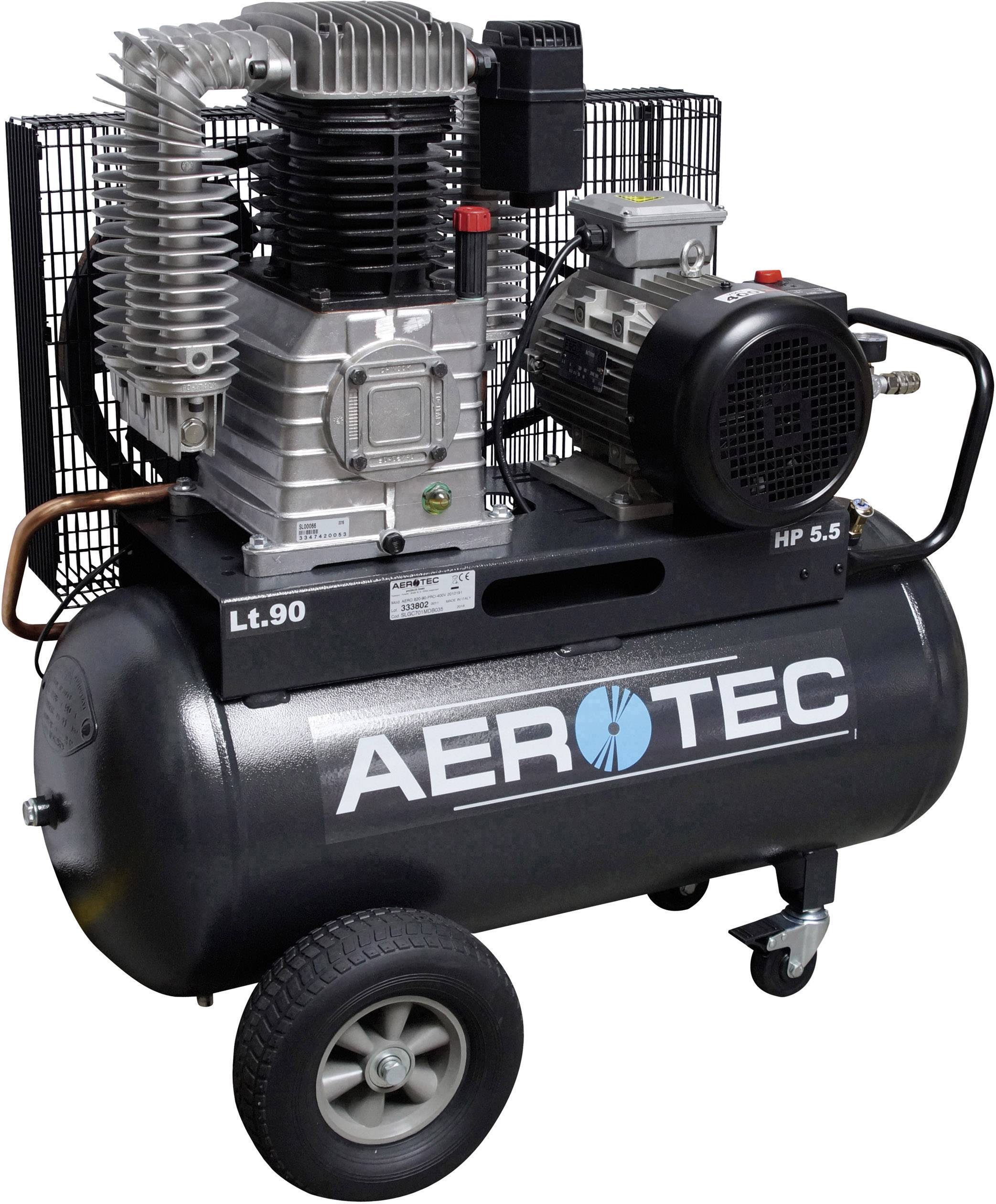

Compressed air piston compressor 820-90 PRO
- Contents: 90 l
Technical specifications
- Product type
Air compressor
- No. of cylinders
2
4000 W
- Vaccum power
750 l/min
- Flow rate
580
- Operation pressure
10 bar
- Rotational speed (max.)
900 U/min
- Boiler volume
90 l
- Operating voltage
400 V
- Length
950 mm
- Width
450 mm
- Height
1070 mm
- Weight
90 kg
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1591715 Aerotec Air compressor 820-90 PRO 90 l 10 bar
Description
This piston compressor from the PRO-series is equipped with a particularly robust unit that is specifically designed for the sophisticated application designed the PRO series is characterised by its very good performance and easily keeps the daily stress in use!
Features
- Wheeled Industrial piston compressor in oil-lubricated 2-stage design
- V-belt-operated 2 cylinder series unit
- load at start-up via Condor Pressure Switch
- With large hard rubber wheels for easy transport
- the condensate drain takes place by means of ball valve
- Delivery including phase inverter plug
- 2 swivel castors at the front side for a perfect handling.
