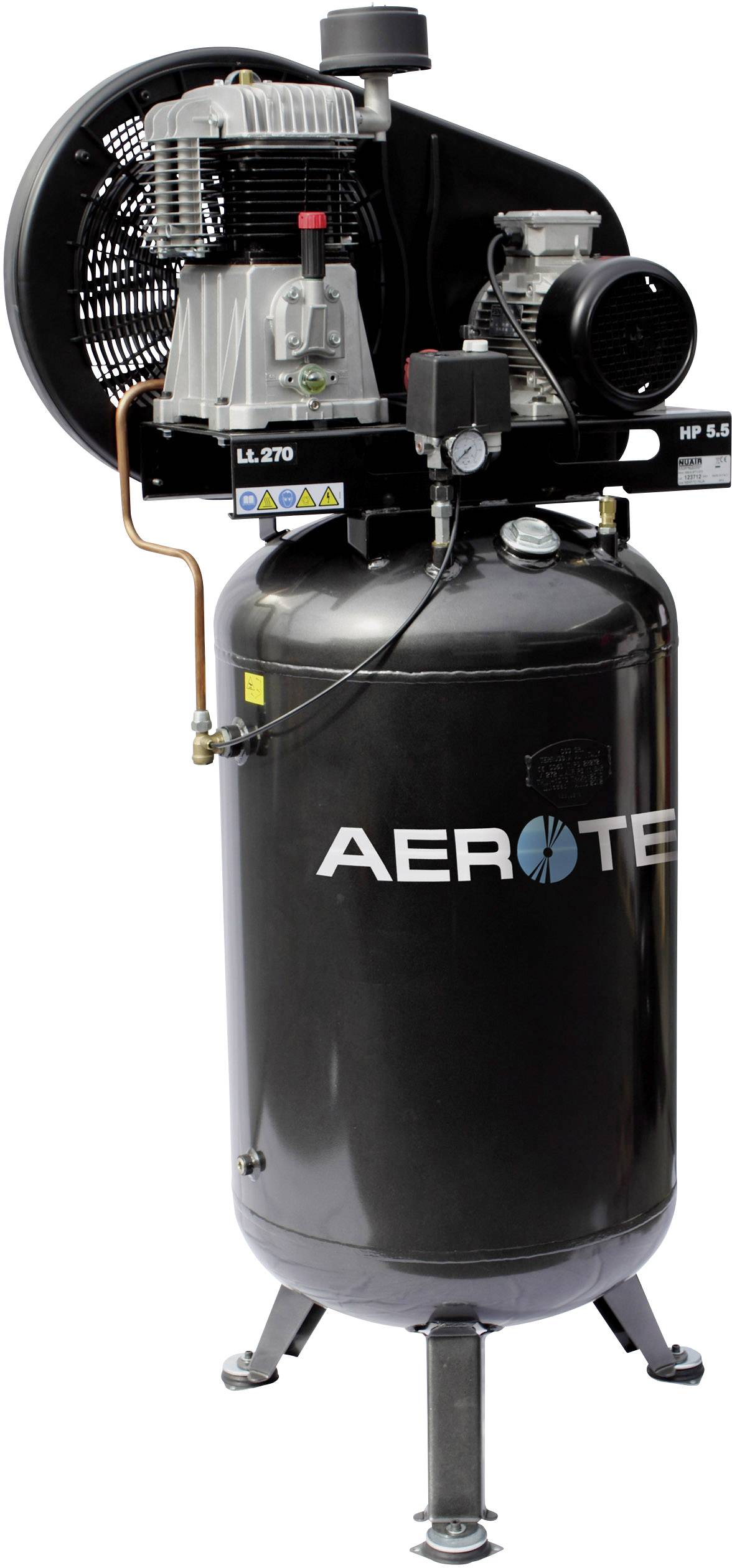

Aerotec Air compressor Aerotec N59-270 PRO 270 l 10 bar
EAN:
Part number:
Item no:
Highlights & Details
AEROTEC N59-270 PER standing
- Boiler volume: 270 l
Technical specifications
- Product type
Air compressor
- No. of cylinders
2 pc(s)
4 kW
- Vaccum power
690 l/min
- Flow rate
520 l/min
- Operation pressure
10 bar
- Rotational speed (max.)
1200 U/min
- Boiler volume
270 l
- Operating voltage
400 V
- Length
800 mm
- Width
595 mm
- Height
1800 mm
- Weight
140 kg
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2187822 Aerotec Air compressor Aerotec N59-270 PRO 270 l 10 bar
Description
Features
- Compressor system with space-saving compressed air tank in vertical design
- Oil-lubricated 2-stage unit
- Slow running 2 cylinder series unit with high efficiency
- Supplied with vibration damper set for vibration-free operation
- The condensate is drained by means of a ball valve.
