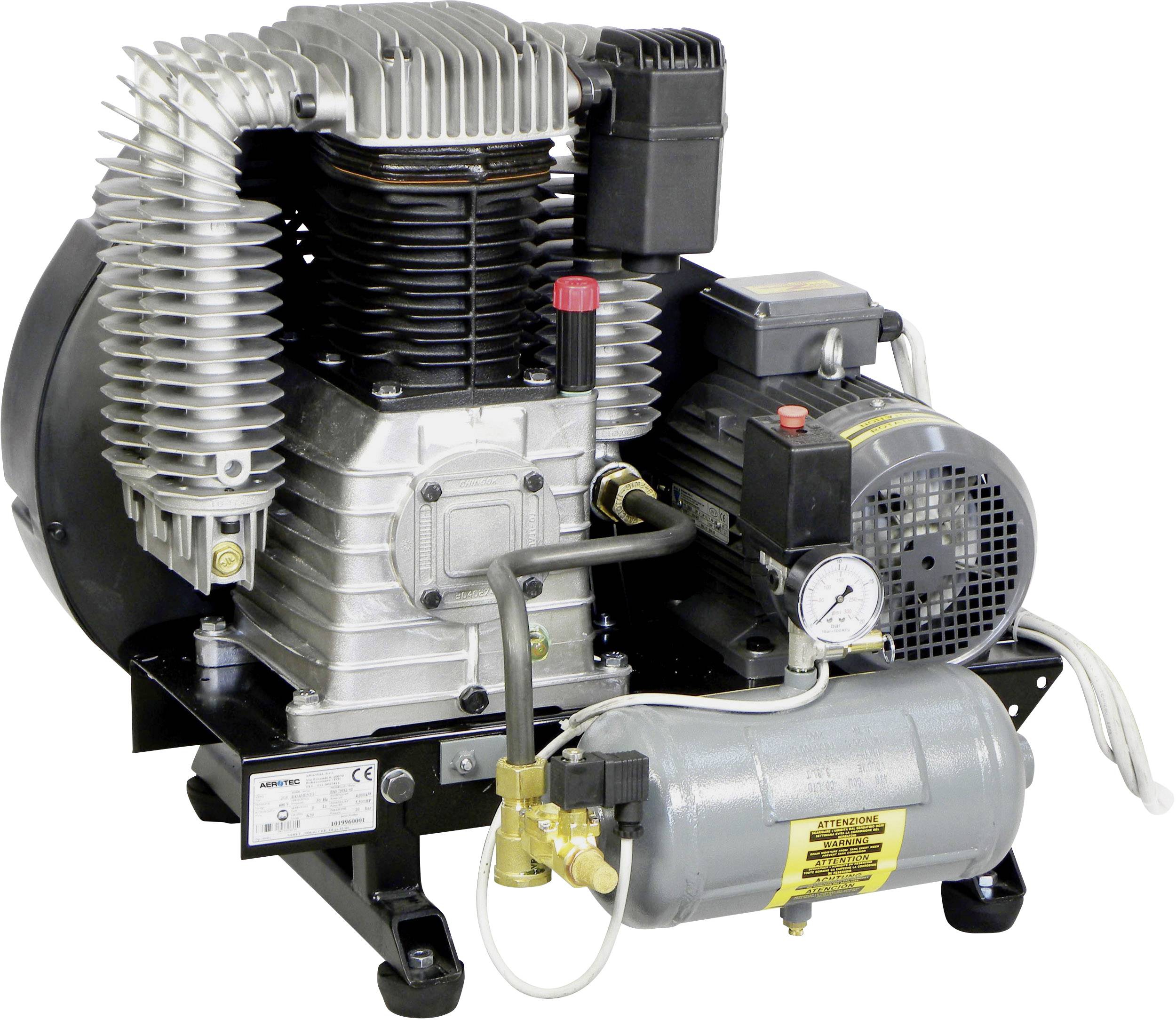

Aerotec Air compressor AK50 3 l 10 bar
EAN:
Part number:
Item no:
Highlights & Details
AEROTEC side plate base AK50 - 7.4 KW
- Boiler volume: 3 l
Technical specifications
- Product type
Air compressor
- No. of cylinders
2 pc(s)
7.4 kW
- Vaccum power
1250 l/min
- Flow rate
980 l/min
- Operation pressure
10 bar
- Rotational speed (max.)
1150 U/min
- Boiler volume
3 l
- Operating voltage
10
- Length
1100 mm
- Width
650 mm
- Height
1000 mm
- Weight
140 kg
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2187863 Aerotec Air compressor AK50 3 l 10 bar
Description
Features
- Side compressor for industrial use
- The new industrial piston series is characterized by a very good efficiency
- Each side compressor is equipped with a 3 liter buffer tank and a pressure switch control, so that further boilers can be connected and put into operation directly without additional attachments
- The base is equipped with vibration damping buffers.
- This text is machine translated.
