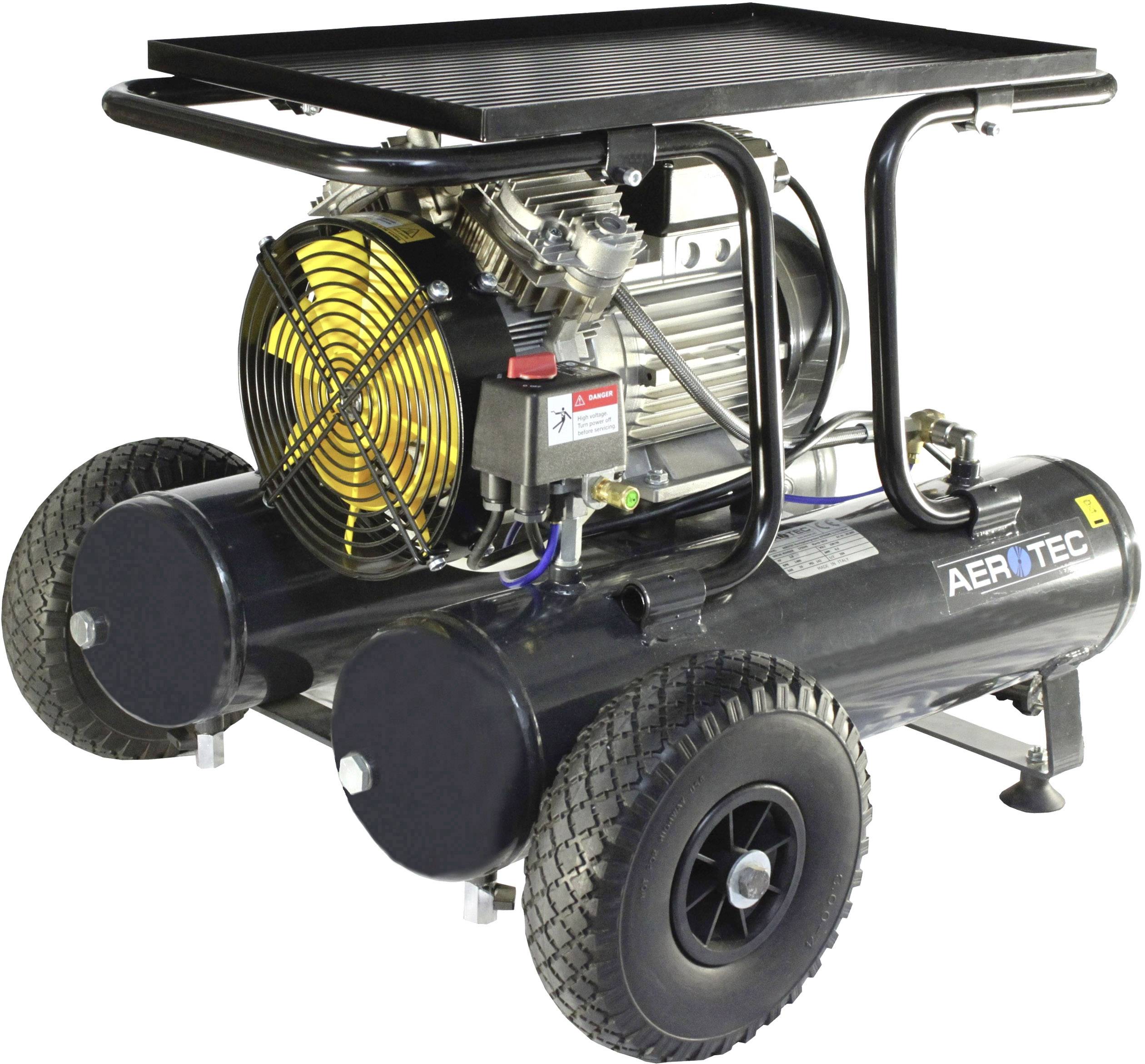

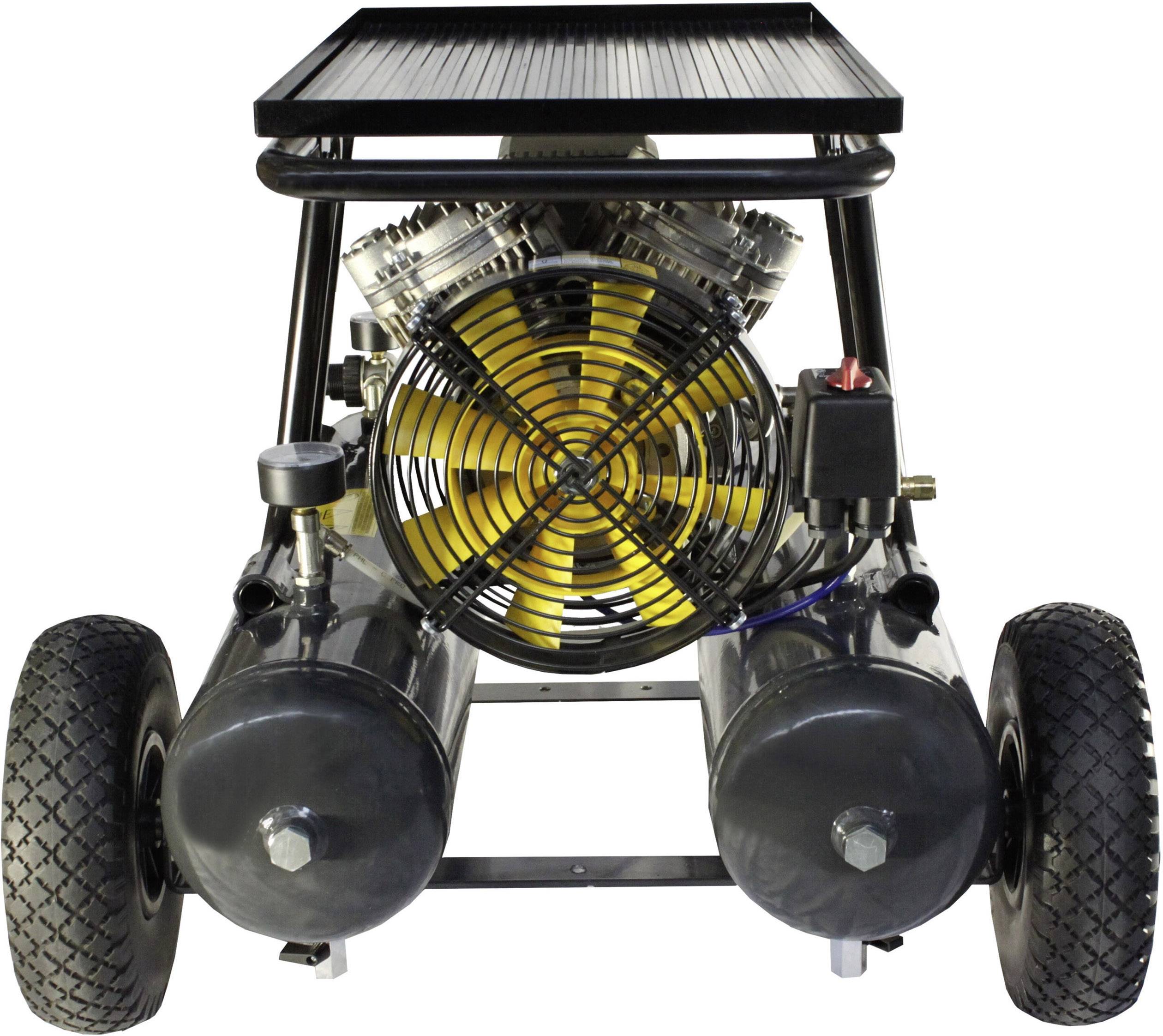

Aerotec Air compressor Extrem 11+11 22 l 10 bar
EAN:
Part number:
Item no:
Highlights & Details
Mounting compressor extremely 11+11
- Contents: 22 l
Technical specifications
- Product type
Air compressor
- No. of cylinders
2
2 BHP
- Vaccum power
300 l/min
- Flow rate
205 l/min
- Operation pressure
10 bar
- Rotational speed (max.)
1450 U/min
- Boiler volume
22 l
- Operating voltage
230 V
- Length
750 mm
- Width
560 mm
- Height
670 mm
- Weight
55 kg
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1591716 Aerotec Air compressor Extrem 11+11 22 l 10 bar
Description
Robust compact-oil-free-maintenance-free
the oil-free unit has a patented inlet manifold, therefore, the aspirated warm air is not routed directly through the valve plates but only through the housing of the crank shaft into the valve plate system thus reduces the wear and damage due to overheating. The imported air is cooled by a separate fan in addition and the inlet temperature in addition to reduce it. The device is equipped with a special suction system because of this, no air filters are required and it accounts for additional maintenance costs. Continuous operation!
the oil-free unit has a patented inlet manifold, therefore, the aspirated warm air is not routed directly through the valve plates but only through the housing of the crank shaft into the valve plate system thus reduces the wear and damage due to overheating. The imported air is cooled by a separate fan in addition and the inlet temperature in addition to reduce it. The device is equipped with a special suction system because of this, no air filters are required and it accounts for additional maintenance costs. Continuous operation!
Features
- Wheeled piston compressor with high-performance unit
- Oil-free piston compressor
- tube frame in the Wheelbarrow form protection the compressor and the fittings from damage
- Convenient Tray surface for tools
- Slow-running 2-cylinder V-unit with a high degree of efficiency
- No-load at start-up via Condor Pressure Switch
- with precisely adjustable pressure controller
- Patented intake air cooling for the toughest, daily use.
Hints
This text is machine translated.
