Aerotec Air compressor KELVIN 22-10 500 l 10 bar
EAN:
Part number:
Item no:
Highlights & Details

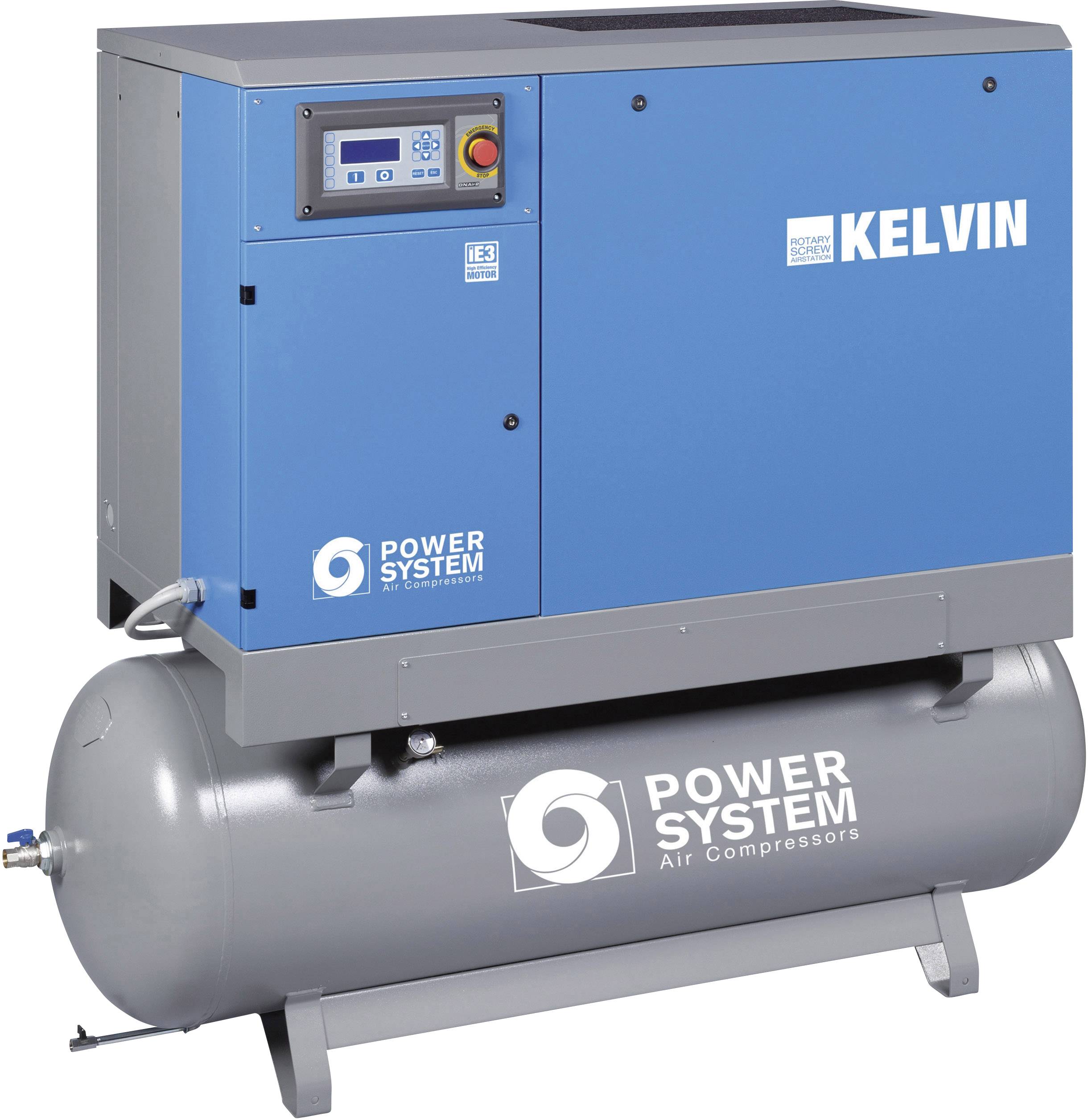

Screw compressor KELVIN 22-10 500L tank with dryer
- Boiler volume: 500 l
Technical specifications
- Product type
Air compressor
22 kW
- Flow rate
3000 l/min
- Operation pressure
10 bar
- Boiler volume
500 l
- Operating voltage
400 V
- Length
1980 mm
- Width
730 mm
- Height
1750 mm
- Weight
615 kg
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2187834 Aerotec Air compressor KELVIN 22-10 500 l 10 bar
Description
This series of screws makes no compromises, it is worth bearing the name of one of the brightest minds in the world.
This text is machine translated.
This text is machine translated.
Features
- Screw compressor "KELVIN" with microprocessor control "DNair2"
- The controller speaks "plain text" all important operating states can be read directly
- The controller has a CAN bus interface, so that several compressors can be connected in series with each other so that the existing controller can also be used as a higher-level controller when purchasing another system
- Compact in the smallest of spaces: Compressor + boiler + cooling dryer incl. 2-way filtration according to DIN ISO 8753-1 thus without any additional cost of acquisition a perfect air quality from the start
- With fork attachment for easy transport with a forklift
- Microprocessor control and direction of rotation control, thanks to 2-way double fan system, no overheating problems are guaranteed
- Super-sound-insulated screw compressor with drive via low-maintenance Poly-V belt
- The compressors are very quiet and designed for continuous operation. A separate radial fan and a generously dimensioned heat exchanger ensure low operating temperatures
- Thanks to the sophisticated design, all maintenance-relevant parts are easily accessible
- The screw compressor is equipped with a highly efficient IE3 motor, which enables significant energy savings
- 24h operation possible
- Compressor block SF50
- Separate radial fan for optimum cooling
- Very good accessibility for maintenance work
- Direction of rotation monitoring by means of phase sequence relay
- With microprocessor control for monitoring all operating parameters.
