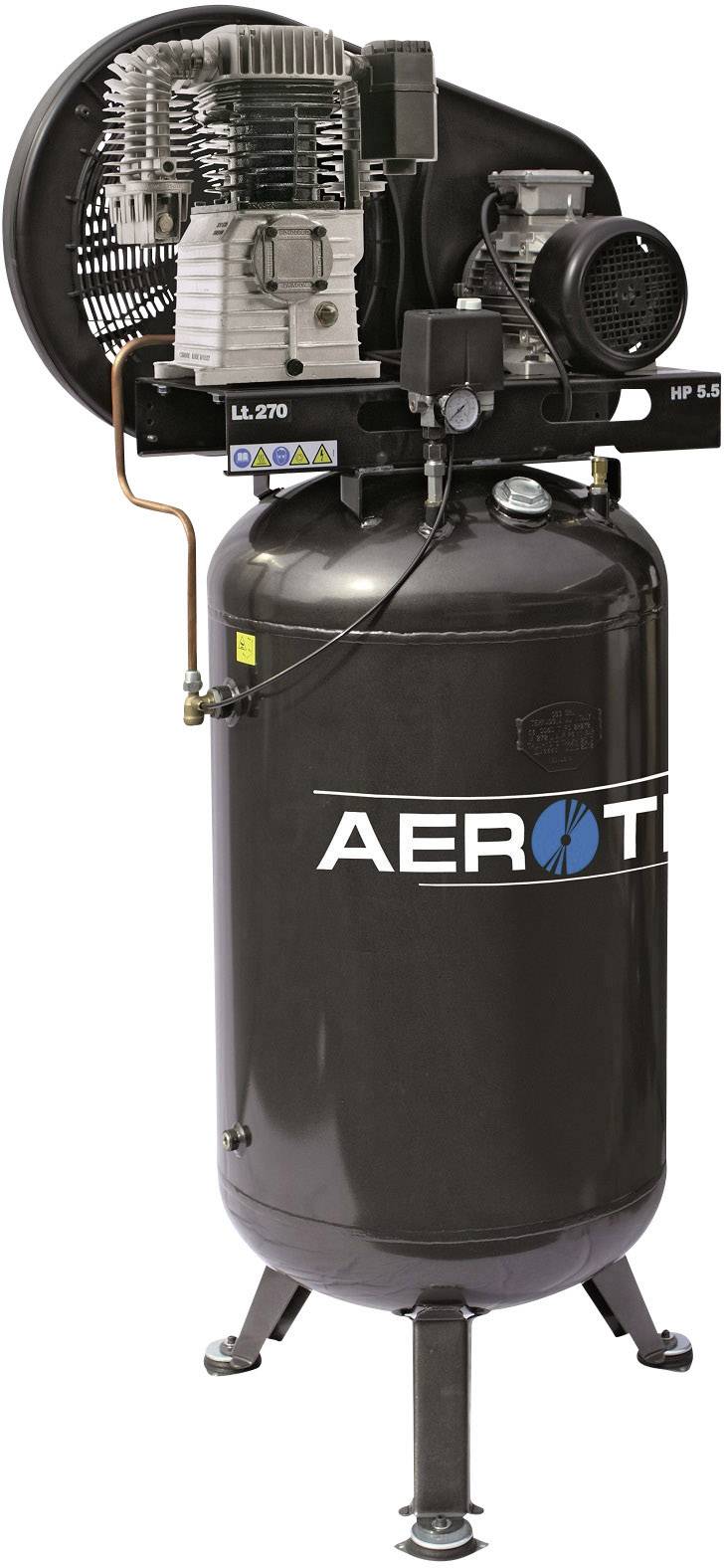

Aerotec Air compressor N59-270 PRO AD2000 270 l 15 bar
EAN:
Part number:
Item no:
Highlights & Details
Compressor N 59-270 per standing AD 2000
- Contents: 270 l
Technical specifications
- Product type
Air compressor
- No. of cylinders
2
5.5 BHP
- Vaccum power
690 l/min
- Flow rate
520 l/min
- Operation pressure
15 bar
- Rotational speed (max.)
1200 U/min
- Boiler volume
270 l
- Operating voltage
400 V
- Length
800 mm
- Width
595 mm
- Height
1800 mm
- Weight
140 kg
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1591718 Aerotec Air compressor N59-270 PRO AD2000 270 l 15 bar
Description
Features
- Compressor systems with space-saving compressed air tank in the standing design
- oil lubricated 2 stages aggregates in different power classes
- slow running 2 cylinder series units with a high degree of efficiency
- Supplied with vibration damper set for vibration-free operation
- the condensate drain is done with the ball valve.
Hints
This text is machine translated.
