Aerotec Air compressor PRO B-AK25-15 15 bar
EAN:
Part number:
Item no:
Technical specifications
- Product type
Air compressor
- No. of cylinders
2
4 kW
- Vaccum power
400 l/min
- Flow rate
310 l/min
- Operation pressure
15 bar
- Operating voltage
400 V
- Length
850 mm
- Width
620 mm
- Height
1100 mm
- Weight
147 kg
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2187726 Aerotec Air compressor PRO B-AK25-15 15 bar
Description
Features

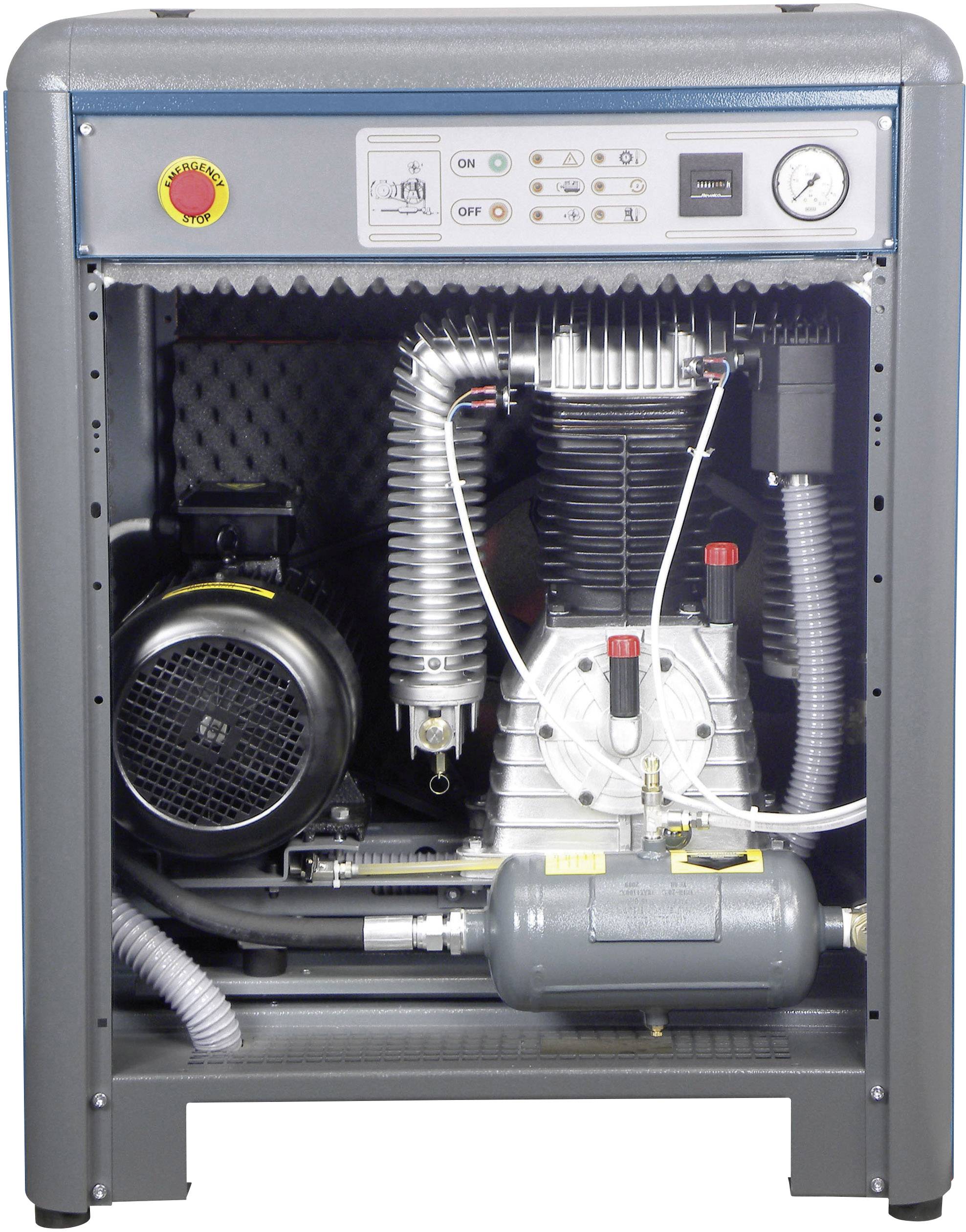

- Two-stage industrial piston compressor
- With integrated additional fan for optimum ventilation and cooling of the compressor
- Heavy-duty industrial piston compressor for the automotive and industrial sectors
- With 3 liter pressure reservoir for direct connection of a separate compressed air tank
- 2 cylinders 2 stages unit
- V-belt drive
- Particularly smooth running due to low speed
- Large fan wheel for optimum cooling
- With heat sensors that control the cooling of the auxiliary fans
- With 3 liter pressure vessel
- Operating hours meter and WIKA glycerin manometer
- Rugged design
- Quiet, reliable and durable.
- This text is machine translated.
