Aerotec Air compressor PRO K-AK30-10 - 270 270 l 10 bar
EAN:
Part number:
Item no:
Highlights & Details

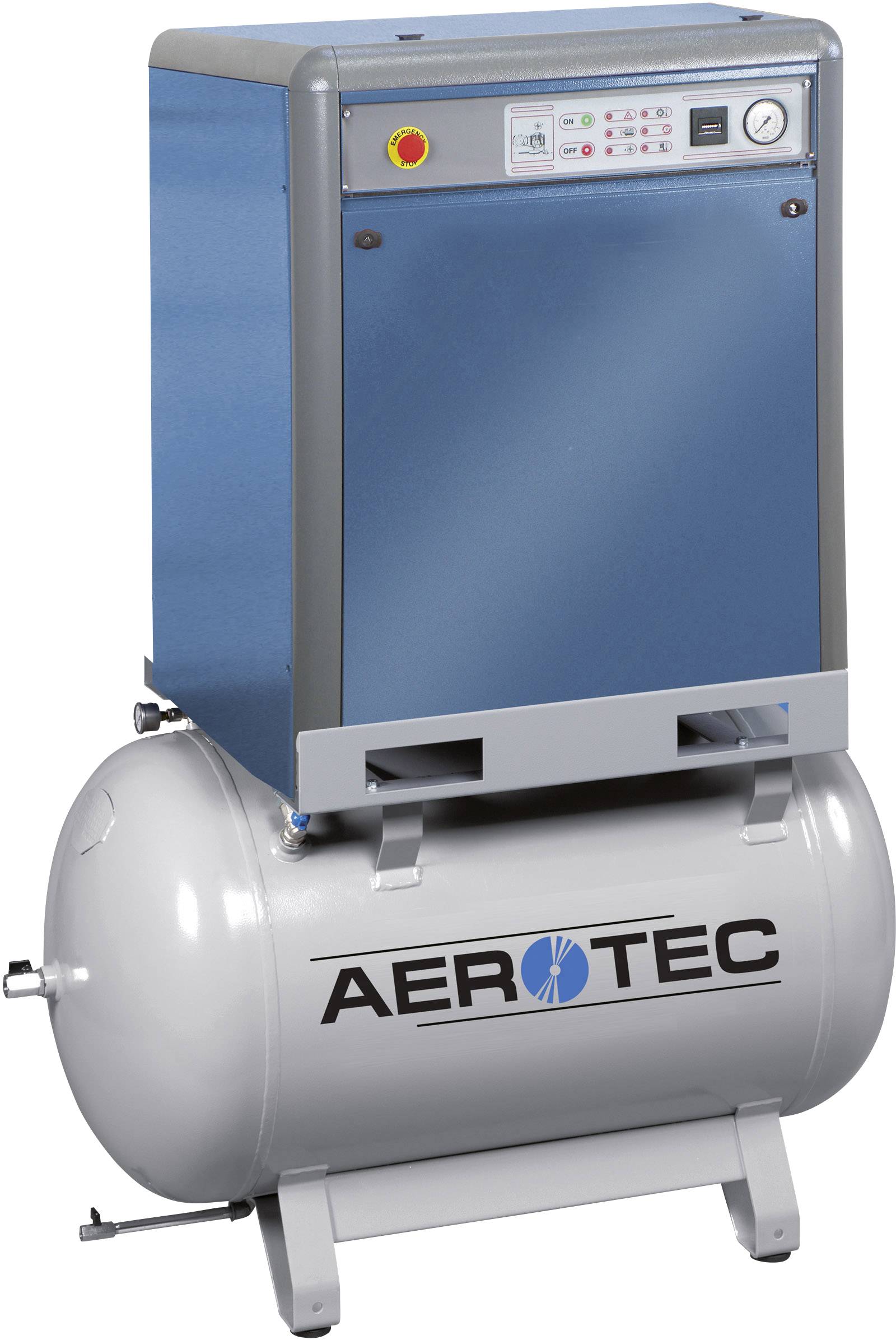

AEROTEC Silent piston compressor PER K-AK30-10 - 270 - 5.5 KW - with ST circuit 10 bar
- Boiler volume: 270 l
Technical specifications
- Product type
Air compressor
- No. of cylinders
2 pc(s)
5.5 kW
- Vaccum power
880 l/min
- Flow rate
700 l/min
- Operation pressure
10 bar
- Boiler volume
270 l
- Operating voltage
400 V
- Length
1150 mm
- Width
700 mm
- Height
1750 mm
- Weight
337 kg
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2187839 Aerotec Air compressor PRO K-AK30-10 - 270 270 l 10 bar
Description
Features
- 2-stage industrial piston compressor
- With integrated additional fan for optimum ventilation and cooling of the compressor
- Heavy-duty industrial piston compressor for the automotive and industrial sectors
- 2 cylinders 2 stages unit
- V-belt drive
- Particularly smooth running due to low speed
- Large fan wheel for optimum cooling
- With heat sensors that control the cooling of the auxiliary fans
- Operating hours meter and WIKA glycerin manometer
- Rugged design
- Quiet, reliable and durable
- Incl. Star-triangle connection.
- This text is machine translated.
