Aerotec Pneumatic rotary-screw compressor mini JUNIOR 2,2-10 / 400 V 10 bar
EAN:
Part number:
Item no:
Technical specifications
- Product type
Pneumatic rotary-screw compressor
2.2 kW
- Flow rate
261 l/min
- Operation pressure
10 bar
- Operating voltage
400 V
- Length
780 mm
- Width
460 mm
- Height
600 mm
- Weight
68 kg
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3735242 Aerotec Pneumatic rotary-screw compressor mini JUNIOR 2,2-10 / 400 V 10 bar
Description

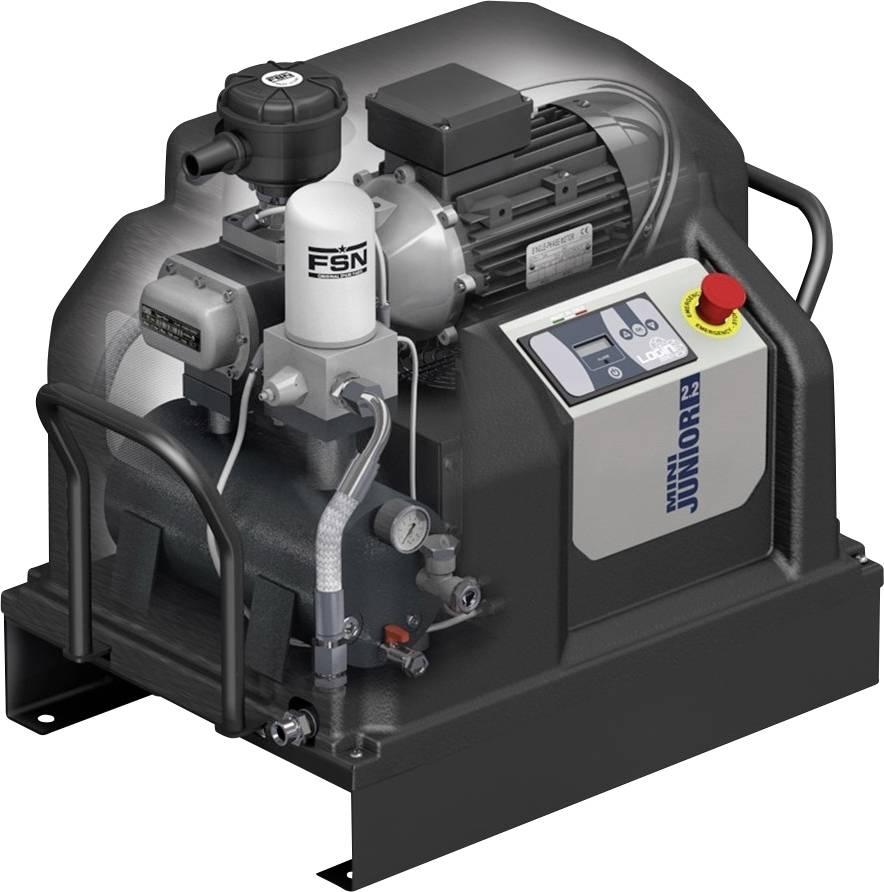

The directly driven screw compressor "mini JUNIOR" convinces by its compact design, which makes it Ideal for use in the smallest of spaces. This series was developed especially for continuous operation in the industry and thus offers a reliable power for demanding applications. Thanks to the direct connection of the compressor stage and the electric motor, an optimum transmission efficiency is achieved.
Features:
The Block POWERSYSTEM compressor forms the core of the compressor. Two side-mounted carrying handles make it easy to transport, while the very good accessibility simplifies all maintenance work considerably. The compressor also has an integrated digital direction of rotation monitoring, which together with the control of the most important operating parameters provides for a safe and efficient operation.
This text is machine translated.
Features:
The Block POWERSYSTEM compressor forms the core of the compressor. Two side-mounted carrying handles make it easy to transport, while the very good accessibility simplifies all maintenance work considerably. The compressor also has an integrated digital direction of rotation monitoring, which together with the control of the most important operating parameters provides for a safe and efficient operation.
This text is machine translated.
