Name: AG Neovo TX-2401w Touchscreen EEC E (A - G) 60.5 cm (23.8 inch) 1920 x 1080 p 16:9 5 ms
Brand: AG Neovo
SKU: 3843212

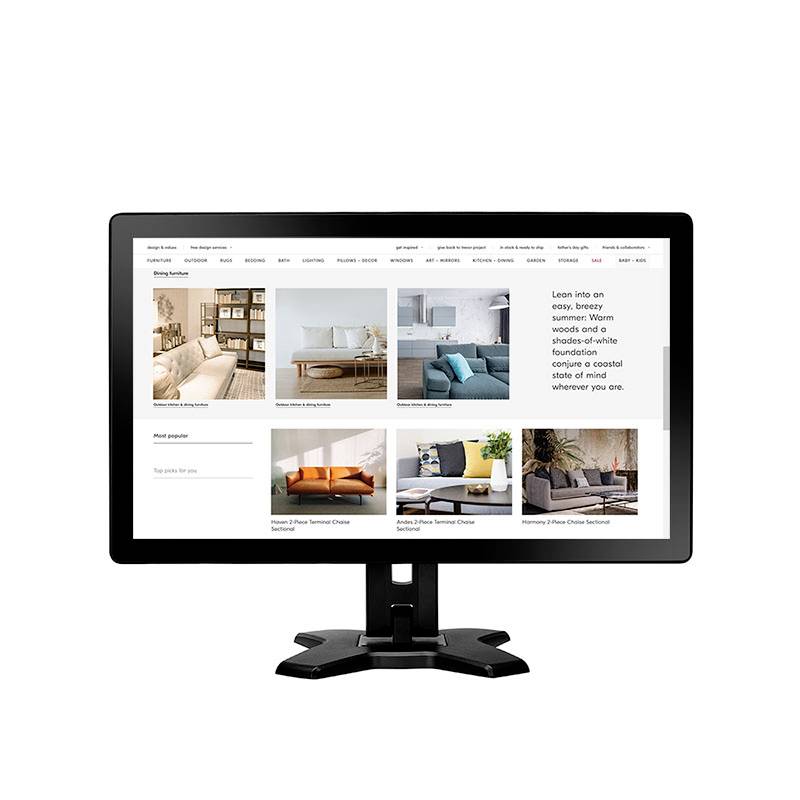

Computer monitor displaying a furniture shopping webpage with sofa and chair product photos and the text 'Lean into an easy, breezy summer...'<br>

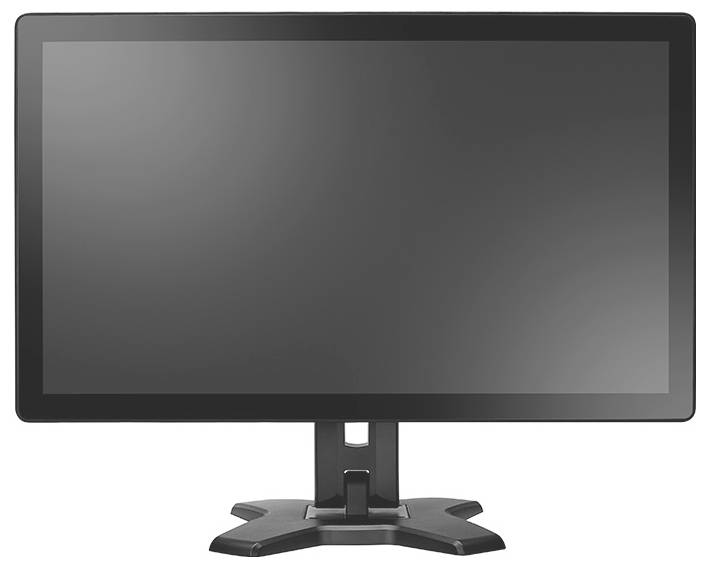

Blank black computer monitor on a stand against a white background.

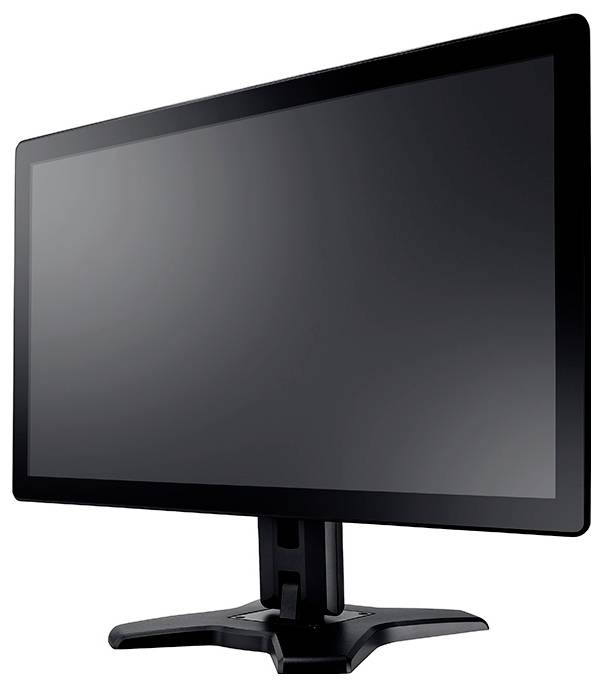

Black flat-screen monitor on a stand, shown front view against a white background.

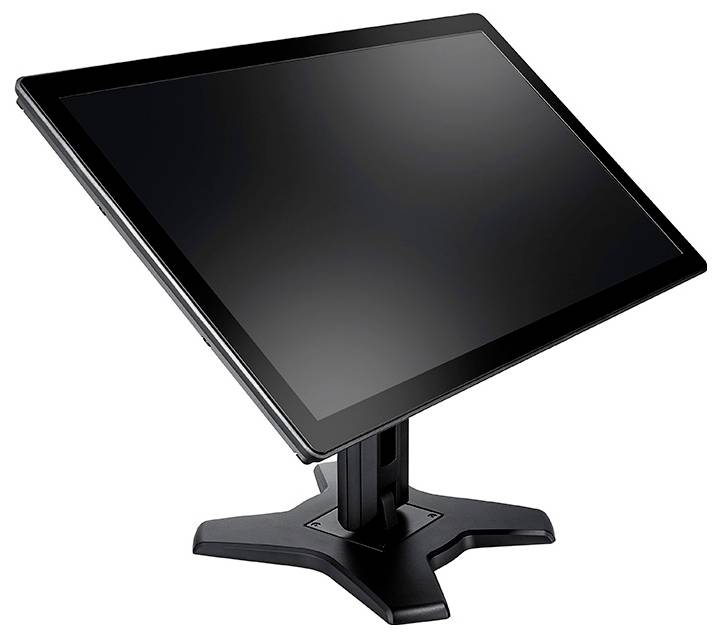

Black flat-panel monitor on an adjustable stand, shown angled on a white background.

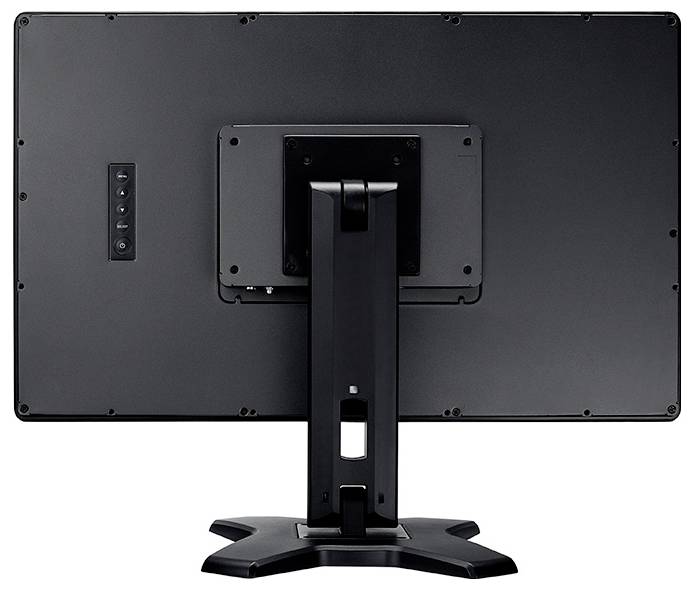

Back view of a flat-screen monitor on a stand, showing the central mount and control buttons on the left side.

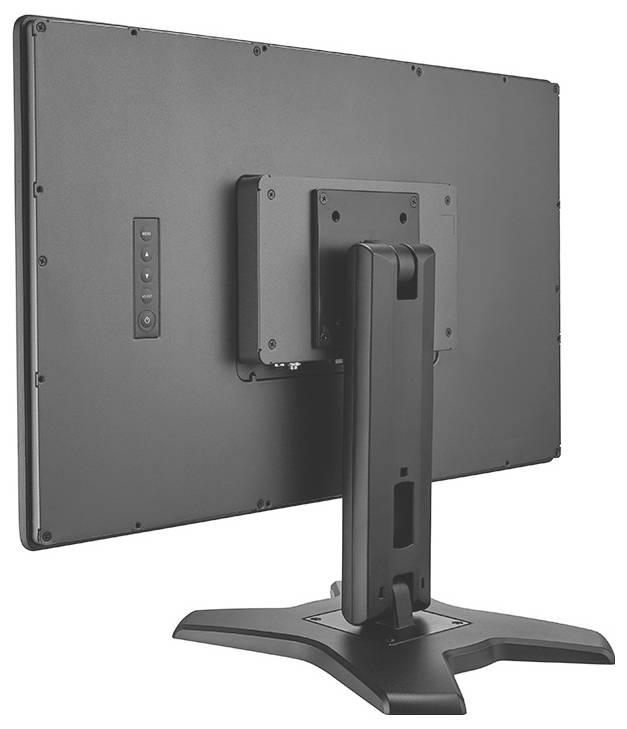

Back view of a flat-screen monitor on a stand, showing the attached V-shaped base and rear mounting bracket with side control buttons.

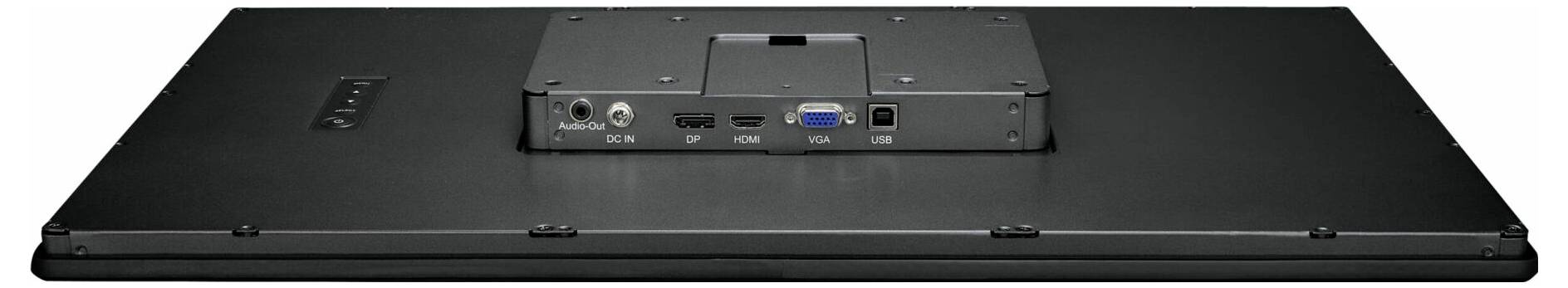

Back of a flat-panel monitor showing input ports on the rear control panel, including audio, HDMI, VGA, and USB connections.

1/7

Product data sheet

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

AG Neovo TX-2401w Touchscreen

Screen size 60.5 cm (23.8 inch) Full HD, 1920 x 1080 p;Response time: 5 msEnergy efficiency rating (calc): E (A - G)
Interfaces:

Technical specifications

Screen technology: LED
Panel type VA
Contrast ratio: 3000:1
0.274 x 0.274 mm pixel distance
Market Positioning: Business
HDMI Version 1.3
Tilt angle range -5 - 180°
Energy efficiency rating (HDR): Not available

Product type: Touchscreen

Resolution (max.): 1920 x 1080 p

Screen size diagonal (inches): 23.8 inch

Screen size diagonal (inches): 24 inch

Image format: 16:9

Touchscreen (display): Yes

Frame rate: 60 Hz

Response time: 5 ms

Brightness: 250 cd/m²

Factory colour: Black

No. of DisplayPort: 1 x

No. of HDMI ports: 1 x

No. of VGA ports: 1 x

Power consumption (standby): 0.4 W

Hor. viewing angle: 178°

Vertical viewing angle: 178°

Width: 575.1 mm

Height: 451.3 mm

Depth: 279.7 mm

Weight: 7.8 kg

Dim: (W x H x D) 575.1 x 451.3 x 279.7 mm

Display size: 24 inch - 29 inch

Display type: Touch display

Display resolution mode: Full HD

: E (A - G)

Display: 60.5 cm (23.8 inch)

Display (cm): 60.5 cm

Power consumption (off): 0.2 W

Power consumption (ON): 17 W

Device depth (without stand): 42.4 mm

Display resolution: 1920 x 1080 Pixel

: IP65

Material (details): Metal

Height (without base): 347 mm

Type: External

: 100 x 100 mm

Operating temperature (T-T): 0 - 40 °C

Number of simultaneous touchpoints: 10

Headphone out: yes

Weight (without stand): 5.7 kg

Width (without stand): 575.1 mm

Cable lock slot: yes

Storage relative humidity (H-H): 10 - 90 %

VESA mounting: yes

Height adjustment: no

NVIDIA G-SYNC: no

Built-in USB hub: no

Headphone outputs: 1

Built-in speaker(s): no

Digital horizontal frequency: 30 - 84 kHz

Digital vertical frequency: 56 - 76 Hz

AMD FreeSync: no

Cable management: yes

NTSC coverage (typical): 72 %

Power adapter included: yes

USB Touch port: yes

USB Touch ports quantity: 1

Quick start guide: yes

Energy consumption (SDR) per 1000 hours: 17 kWh

HDMI: yes

Operating relative humidity (H-H): 20 - 80 %

Storage temperature (T-T): -20 - 60 °C

Package weight: 11.4 kg

Built-in camera: no

Glass thickness: 3.3 mm

Tilt adjustment: yes

Detachable stand: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3843212 AG Neovo TX-2401w Touchscreen EEC E (A - G) 60.5 cm (23.8 inch) 1920 x 1080 p 16:9 5 ms

Description

The TX-2401 touchscreen monitor uses PCAP touch technology. This is relatively insensitive to surface contamination and offers 10-point multi-touch functions for precise and quick-response touch control, which also reacts when used with latex gloves. The TX-2401 White offers versatile connection possibilities (e.g. DisplayPort, HDMI and VGA-inputs) and can be used maximum versatile. The front-certified IP65 and IK08 protection classes, the white metal housing and the borderless 7H hard glass cover ensure problem-free cleaning and long life for continuous operation.

The Touch screen TX-2401 uses PCAP-Touch technology with 10-point multitouch and is thus relatively insensitive to contamination. It offers a fast, precise and responsive touch experience. The operation is easy and comparable with that of smartphones and tablets and can even be used with latex gloves.

EASY MAINTENANCE AND CLEANING
Commercial grade panel, high-quality components and a scratch-resistant 7H hard glass screen ensure that the 24/7 display is ready for use around the clock. The touchscreen can be cleaned regularly with alcohol.

FRONT SIDE IP65 DUST AND SPLASH-WATER PROTECTION
The white multi-touch monitor TX-2401 with front-side IP65 protection class is protected against dust and spilling liquids and thus Ideal in frequently used working areas.

PROTECTED AGAINST IMPACT
The touch display with IK08 rating and robust metal housing prevent damage from accidental impacts in busy environments, thereby ensuring a long service life.

VERSATILE APPLICATIONS
Thanks to VESA mounting brackets, the TX-2401 White offers flexible fixing options, such as mounting on the table, fixing to a monitor arm. The one included in the delivery Ergonomic pedestal enables an inclination of -2 to 180 degree and thus high flexibility while using. The display has a wide viewing angle of 178 degrees for a stable color reproduction.

VERSATILE CONNECTIVITY
The TX-2401 White offers versatility to connect signal sources via DisplayPort, HDMI or VGA inputs.

CABLE MANAGEMENT
The monitor stand with integrated cable management ensures order and prevents cables from getting in the way when adjusting the screen.

NATHLESS INTEGRATION
The touch screen works with various operating systems and ensures compatibility with Windows, Linux, MacOS and various Android versions.

This text is machine translated.
