Name: AG Neovo X-17E LED EEC E (A - G) 43.2 cm (17 inch) 1280 x 1024 p 5:4 3 ms
Brand: AG Neovo
SKU: 3843250

There is a Conrad shop in your region. You can shop in your own language, have access to your local customer service and enjoy local transport for your purchase.

Go to local shop

Conrad
To search for the product, enter a catchphrase, an article number, an EAN or a part number
My account

Log in / Register
Shopping cart

Subscribe to the newsletter and receive a €5 voucher Subscribe to the newsletter and receive a €5 voucher
Procurement

Order & eProcurement

All order and procurement services
Services

All Services
Offers %

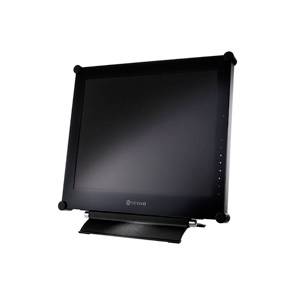

Black square tabletop monitor or display screen on a stand, shown on a white background.

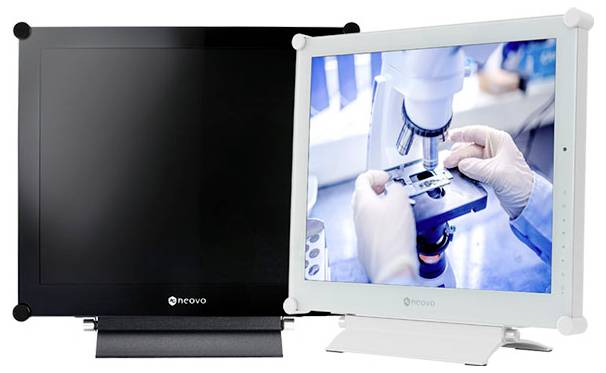

Two medical monitors side by side, one showing a blank black screen and the other displaying gloved hands using a microscope in a lab.

1/2

Product data sheet

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

AG Neovo X-17E LED

Screen size 43.2 cm (17 inch) SXGA, 1280 x 1024 p;Response time: 3 msEnergy efficiency rating (calc): E (A - G)
Interfaces: Built-in speakers

Technical specifications

Screen technology: LED
Panel type TN
Contrast ratio: 1000:1
Contrast ratio (dynamic): 20000000:1
0.264 x 0.264 mm pixel distance
Market positioning: Industrial
HDMI Version 1.4
Panel-mounting interface 75 x 75.100 x 100 mm
Tilt angle range 0 - 20°

Product type: LED

Resolution (max.): 1280 x 1024 p

Screen size diagonal (cm): 43.2 cm

Screen size diagonal (inches): 17 inch

Screen size diagonal (inches): 17 inch

Image format: 5:4

Touchscreen (display): No

Frame rate: 60 Hz

Response time: 3 ms

Brightness: 250 cd/m²

Factory colour: Black

No. of DisplayPort: 1 x

No. of HDMI ports: 1 x

No. of VGA ports: 1 x

Features: Built-in speakers

Audio power (max.): 4 W

Power consumption (standby): 0.5 W

Hor. viewing angle: 170°

Vertical viewing angle: 160°

Width: 409.4 mm

Height: 398.2 mm

Depth: 175 mm

Weight: 6 kg

Dim: (W x H x D) 409.4 x 398.2 x 175 mm

Display size: - 23 inch

Display resolution mode: SXGA

: E (A - G)

Display: 43.2 cm (17 inch)

Display (cm): 43.2 cm

Power consumption (off): 0.3 W

Power consumption (ON): 19 W

Device depth (without stand): 64.5 mm

Display resolution: 1280 x 1024 Pixel

Material (details): Metal

Height (without base): 361.9 mm

Type: External

Number of speakers: 2

Stand included: yes

Operating temperature (T-T): 0 - 40 °C

Weight (without stand): 5.2 kg

Width (without stand): 409.4 mm

Cable lock slot: yes

Storage relative humidity (H-H): 5 - 95 %

VESA mounting: yes

Height adjustment: no

NVIDIA G-SYNC: no

Built-in USB hub: no

DVI port: yes

Built-in speaker(s): yes

Digital horizontal frequency: 24 - 83 kHz

Digital vertical frequency: 50 - 75 Hz

DVI-D ports quantity: 1

AMD FreeSync: no

Picture-in-Picture: yes

NTSC coverage (typical): 72 %

Horizontal scan range: 15 - 81 kHz

Flicker-free technology: yes

Quick start guide: yes

Energy consumption (SDR) per 1000 hours: 13 kWh

HDMI: yes

Operating relative humidity (H-H): 10 - 90 %

Storage temperature (T-T): -20 - 60 °C

3D: no

Package weight: 7.5 kg

Built-in camera: no

Tilt adjustment: yes

Vertical scan range: 50 - 85 Hz

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3843250 AG Neovo X-17E LED EEC E (A - G) 43.2 cm (17 inch) 1280 x 1024 p 5:4 3 ms

Description

The X-series displays are designed for reliable 24/7 operation in demanding environments. With selectable gamma correction and a wide range of connectivity options, the enhanced X-Series models provide an optimal visual field of work with excellent control of color, brightness and contrast ratios. The NeoV™ optical glass and metal housing protect it from scratches and other damage and make the X Series ideal for public, commercial, laboratory and industrial applications.

HIGH RELIABILITY
Designed for product durability in 24/7 operation – protected with rugged metal enclosures and NeoV™ Optical Glass and using selected components.

VERSATILITY, PRODUCTIVITY AND COMPATIBILITY
Visualize critical data Simultaneous interaction of multiple video sources or PC applications with versatile connectivity including DisplayPort and HDMI, and PIP/PBP to increase productivity and efficiency. Selectable page ratio and integrated zoom function ensure compatibility with different video sources.

IMPROVED GAMMA SELECTION
Selectable gamma curves optimize visually different types of images. The special AG Neovo image settings improve the reproduction of color, brightness, sharpness and contrast ratios and thus optimize light, shade and shadow or also the color balance during the video playback.

This text is machine translated.
