Name: AG Neovo X-22EW LED EEC E (A - G) 54.6 cm (21.5 inch) 1920 x 1080 p 16:9 3 ms
Brand: AG Neovo
SKU: 3843245

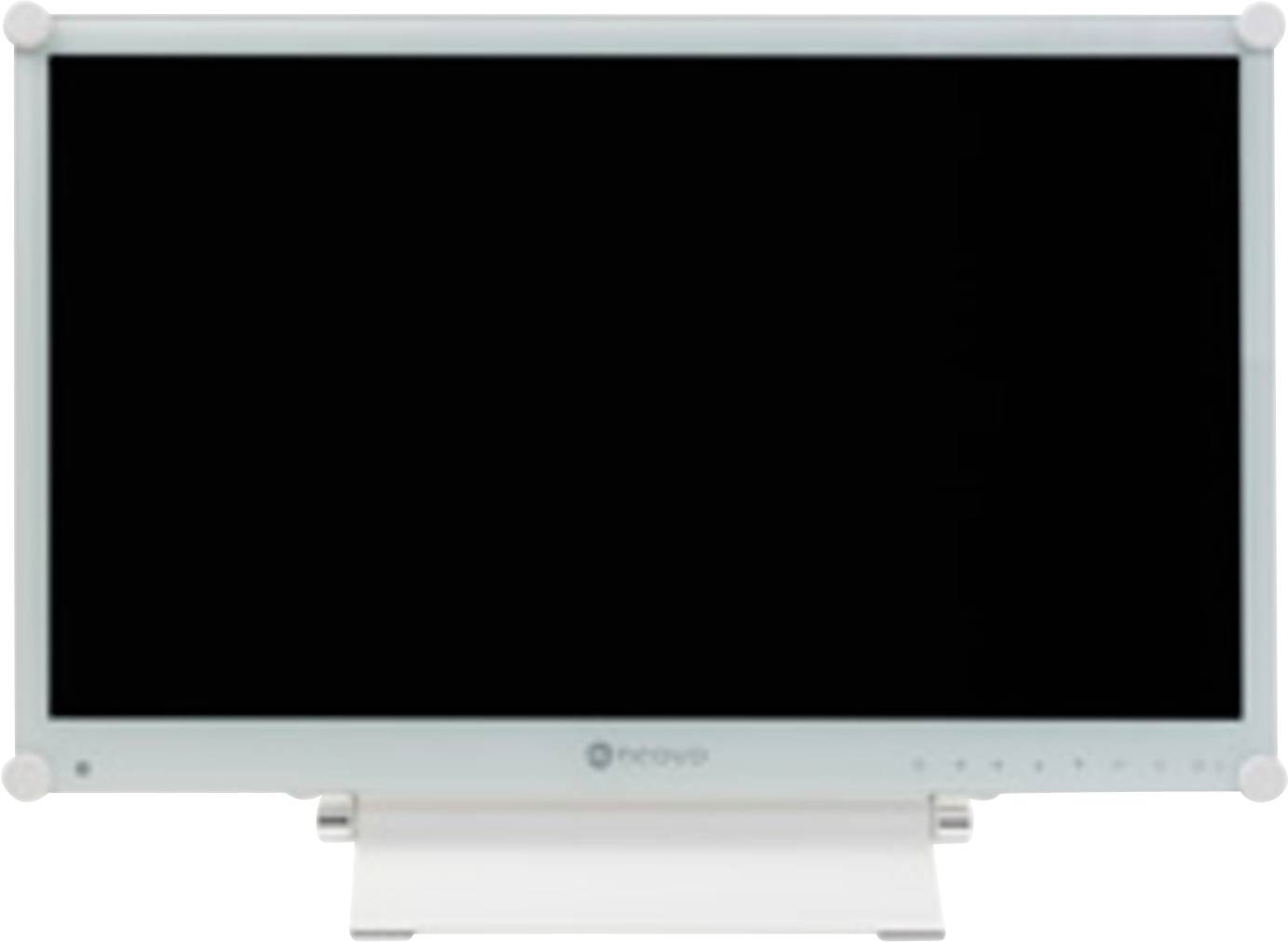

A blank computer monitor with a black screen on a stand.

Product data sheet

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

AG Neovo X-22EW LED

Screen size 54.6 cm (21.5 inch) Full HD, 1920 x 1080 p;Response time: 3 msEnergy efficiency rating (calc): E (A - G)
Interfaces: Built-in speakers

Technical specifications

Screen technology: LED
Panel type TN
Contrast ratio: 1000:1
Contrast ratio (dynamic): 2000000:1
0.2482 x 0.2482 mm pixel distance
Market positioning: Industrial
HDMI Version 1.4
Panel-mounting interface 75 x 75.100 x 100 mm
Tilt angle range 0 - 15°
Energy efficiency rating (HDR): Not available
Package weight: 8.7 kg

Product type: LED

Resolution (max.): 1920 x 1080 p

Screen size diagonal (cm): 54.6 cm

Screen size diagonal (inches): 21.5 inch

Screen size diagonal (inches): 21 inch

Image format: 16:9

Touchscreen (display): No

Frame rate: 60 Hz

Response time: 3 ms

Brightness: 250 cd/m²

Factory colour: Black

No. of DisplayPort: 1 x

No. of HDMI ports: 1 x

No. of VGA ports: 1 x

Features: Built-in speakers

Audio power (max.): 4 W

Power consumption (standby): 0.5 W

Hor. viewing angle: 170°

Vertical viewing angle: 160°

Width: 513.2 mm

Height: 368.5 mm

Depth: 155 mm

Weight: 6.7 kg

Dim: (W x H x D) 513.2 x 368.5 x 155 mm

Display size: - 23 inch

Display resolution mode: Full HD

: E (A - G)

Display: 54.6 cm (21.5 inch)

Display (cm): 54.6 cm

Power consumption (off): 0.3 W

Power consumption (ON): 18 W

Bluetooth: No

Device depth (without stand): 56.2 mm

Display resolution: 1920 x 1080 Pixel

Material (details): Metal

Height (without base): 324.3 mm

Type: External

Wi-Fi: No

Number of speakers: 2

Stand included: yes

Operating temperature (T-T): 0 - 40 °C

Weight (without stand): 6.1 kg

Width (without stand): 513.2 mm

Ethernet LAN: no

Cable lock slot: yes

Storage relative humidity (H-H): 5 - 95 %

Wall mountable: yes

VESA mounting: yes

Height adjustment: no

NVIDIA G-SYNC: no

TV tuner integrated: no

Built-in USB hub: no

DC-in jack: yes

DVI port: yes

Built-in speaker(s): yes

Digital horizontal frequency: 24 - 83 kHz

Digital vertical frequency: 50 - 75 Hz

DVI-D ports quantity: 1

AMD FreeSync: no

Picture-in-Picture: yes

NTSC coverage (typical): 72 %

PC Audio in: yes

Power adapter included: yes

Quick start guide: yes

Energy consumption (SDR) per 1000 hours: 15 kWh

HDMI: yes

On/off switch: yes

Operating relative humidity (H-H): 10 - 90 %

Storage temperature (T-T): -20 - 60 °C

3D: no

Built-in camera: no

Tilt adjustment: yes

Vertical scan range: 50 - 85 Hz

Detachable stand: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3843245 AG Neovo X-22EW LED EEC E (A - G) 54.6 cm (21.5 inch) 1920 x 1080 p 16:9 3 ms

Description

The X-series displays are designed for reliable 24/7 operation in demanding environments. With selectable gamma correction and a wide range of connectivity options, the enhanced X-Series models provide an optimal visual field of work with excellent control of color, brightness and contrast ratios. The NeoV™ optical glass and metal housing protect it from scratches and other damage and make the X Series ideal for public, commercial, laboratory and industrial applications.

HIGH RELIABILITY
Designed for product durability in 24/7 operation – protected with rugged metal enclosures and NeoV™ Optical Glass and using selected components.

VERSATILITY, PRODUCTIVITY AND COMPATIBILITY
Visualize critical data Simultaneous interaction of multiple video sources or PC applications with versatile connectivity including DisplayPort and HDMI, and PIP/PBP to increase productivity and efficiency. Selectable page ratio and integrated zoom function ensure compatibility with different video sources.

IMPROVED GAMMA SELECTION
Selectable gamma curves optimize visually different types of images. The special AG Neovo image settings improve the reproduction of color, brightness, sharpness and contrast ratios and thus optimize light, shade and shadow or also the color balance during the video playback.
