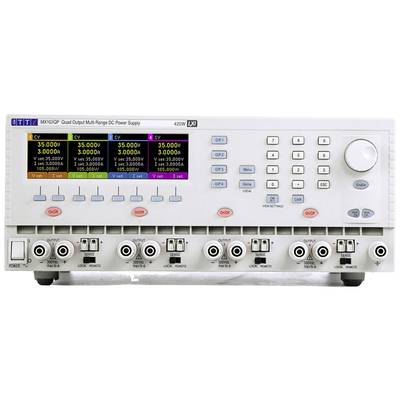

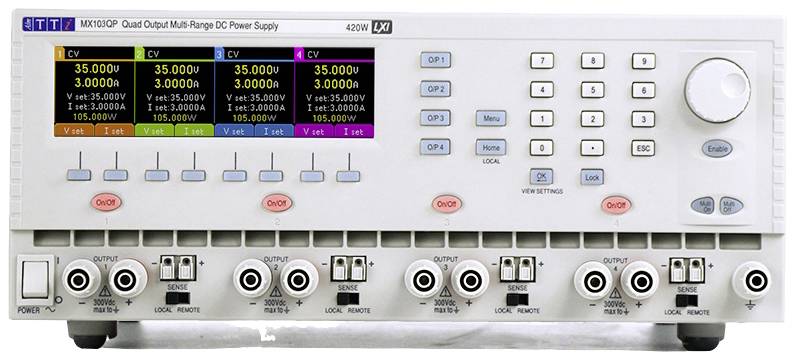

Multi-channel laboratory power supply with control buttons. LCD displays voltage values and current levels for different channels.

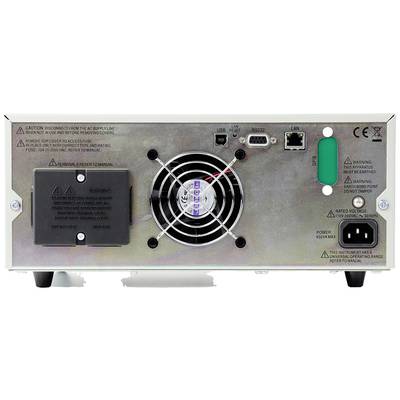

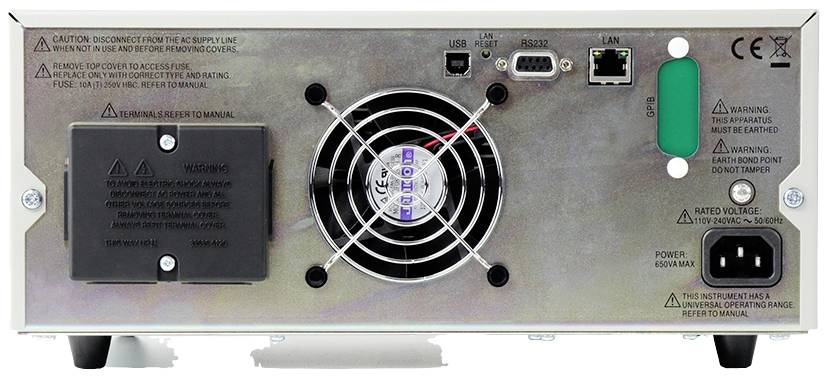

'Rear view of an electronic device with fan, power connection, USB, RS232 and LAN ports, along with safety instructions.'

Aim TTi MX103QP-S2 Bench PSU (adjustable voltage) 0 - 35 V DC 0 - 6 A 420 W RS232, USB , LAN, GPIB No. of outputs 4 x-2

Aim TTi MX103QP-S2 Bench PSU (adjustable voltage) 0 - 35 V DC 0 - 6 A 420 W RS232, USB , LAN, GPIB No. of outputs 4 x-3

Aim TTi MX103QP-S2 Bench PSU (adjustable voltage) 0 - 35 V DC 0 - 6 A 420 W RS232, USB , LAN, GPIB No. of outputs 4 x-4

1/5

Datasheet (PDF)

Sales and shipping:

Number

Piece(s)

Total (€ 1,995.80 / piece)

€

Report legal concerns

Highlights & Details

MX103QP Quad PSU DC Power SUPPLY 4 OUTPUT PROGRAM

No. of outputs 4 x
0 - 35 V DC / 0 - 6 A
0 - 35 V DC / 0 - 6 A
0 - 35 V DC / 0 - 6 A
0 - 35 V DC / 0 - 3 A
420 W
RS232, USB , LAN, GPIB

Technical specifications

5.2" TFT LCD, 480x128 pixels

Type: MX103QP-S2

Product type: Bench PSU (adjustable voltage)

No. of outputs: 4 x

: 420 W

Interfaces: RS232
USB
LAN
GPIB

Dim: (L x W x H) 375 x 320 x 130 mm

: Manufacturer's standards (no certificate)

Input voltage: 110 V AC
240 V AC

Weight: 7.5 kg

Output voltage (max.): 35 V DC

Output voltage (min.): 0 V DC

Output voltage 2 (max.): 35 V DC

Output voltage 2 (min.): 0 V DC

Output voltage 3 (max.): 35 V DC

Output voltage 3 (min.): 0 V DC

Output voltage 4 (max.): 35 V DC

Output voltage 4 (min.): 0 V DC

Max. output current: 6 A

Output current (min.): 0 A

Output current 2 (max.): 6 A

Output current 2 (min.): 0 A

Output current 3 (max.): 6 A

Output current 3 (min.): 0 A

Output current 4 (max.): 3 A

Output current 4 (min.): 0 A

Width: 320 mm

Height: 130 mm

Length: 375 mm

Residual ripple: 1 mV

Max. temperature: +40 °C

Min. temperature: +5 °C

Documents & Downloads

Datasheet

Datasheet 3131387 Aim TTi MX103QP-S2 Bench PSU (adjustable voltage) 0 - 35 V DC 0 - 6 A 420 W RS232, USB , LAN, GPIB No. of outputs 4 x

User & Safety Instructions

User & Safety Instructions 3131387 Aim TTi MX103QP-S2 Bench PSU (adjustable voltage) 0 - 35 V DC 0 - 6 A 420 W RS232, USB , LAN, GPIB No. of outputs 4 x

Description

The MX-series uses the mixed-mode regulation in order to deliver an output of up to 420 W, which is divided on up to four outputs, whereby all the outputs offer the full performance. Each output has a simultaneous high resolution measurement, switchable remote sensing, OVP and OCP trigger, CV or CI mode and an individual output switch. To increase the ability to adapt to a wide range of applications, each output has more than one range that allows you to choose higher voltage or higher current.

This text is machine translated.

Features

Four independent and full-fledged outputs
Simultaneous display of measured values and settings for all outputs
Immediate access to the voltage/current setting for each output

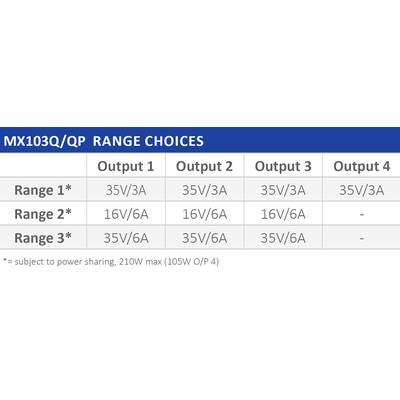

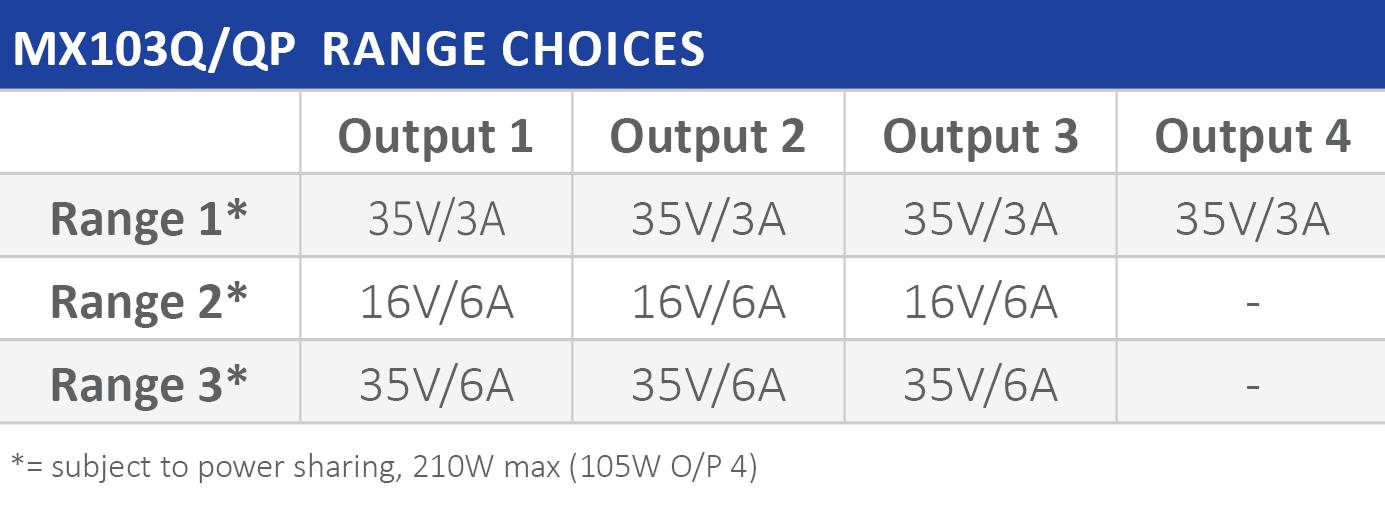

Multiple ranges at each output for wider voltage/current selection
Immediate individual on/off control as well as multi-on/off control that can be sequenced
Up to 250 setting memories for single or multiple outputs
Range switching enables variable voltage/current combinations
Low output noise and low ripple by linear regulation
High setting resolution of up to 1 mV and 0.1 mA
Variable OVP and OCP triggers at all outputs
Selectable voltage monitoring (insulated monitoring)
Selectable mean value formation for ammeter
Switchable remote sense ability
Simultaneous output measurement for all outputs
Numerical or rotary wheel control for all parameters
Single or combined switching on and off of the outputs with programmable delay sequence
Intelligent fan control, which monitors the ambient temperature as well as power consumption
3U ½ rack or ¾ rack enclosure for table or rack mounting
