Aim TTi PLH250 Bench PSU (adjustable voltage) 0 - 250 0 - 0.375 A 94 W No. of outputs 1 x
EAN:
Part number:
Item no:
Number
Total (€ 609.24 / piece)
€ 609.24
plus VAT.
Only 2 Piece(s) available
Highlights & Details

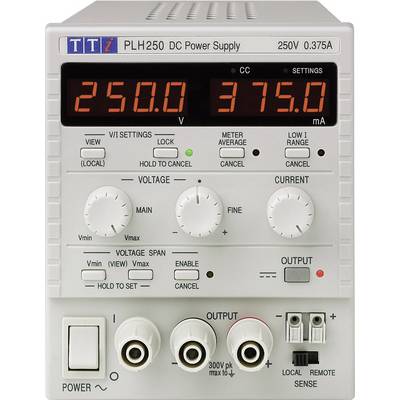

Laboratory power supply aim TTi PLH 250, 0 to 250 V/0 to 0.375 A, 94 W
- No. of outputs 1 x
- 0 - 250 / 0 - 0.375 A
- 94 W
Technical specifications
- Type
PLH250
- Product type
Bench PSU (adjustable voltage)
- No. of outputs
1 x
94 W
Manufacturer's standards (no certificate)
- Input voltage
115 V AC
230 V AC
- Connections
Pole terminal
- Output voltage (max.)
250 V
- Output voltage (min.)
0 V
- Max. output current
0.375 A
- Output current (min.)
0 A
- Max. temperature
+40 °C
- Min. temperature
+5 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1418439 Aim TTi PLH250 Bench PSU (adjustable voltage) 0 - 250 0 - 0.375 A 94 W No. of outputs 1 x
Information
Information 1418439 Aim TTi PLH250 Bench PSU (adjustable voltage) 0 - 250 0 - 0.375 A 94 W No. of outputs 1 x
Conformity certificate
Conformity certificate 1418439 Aim TTi PLH250 Bench PSU (adjustable voltage) 0 - 250 0 - 0.375 A 94 W No. of outputs 1 x
Description
PLH is a further development of the AIM series-TTi PL. The ultra-compact design, the high power density and the intelligent analogue control elements of the PL were integrated into the plh voltages up to 250 V, which also offers applications, which were so far beyond the capabilities of traditional desktop power supplies, as well as areas such as magnetic applications.
This text is machine translated.
This text is machine translated.
Features
- Max. Input power: 280 VA
- Low output noise and short recovery time after interference pulses.
- High power density - up to 94 W per quarter frame, CASING 3HE
- Unusually small table dimensions and for applications with rack mounting up to 4 devices can be mounted in a simple slot
- Excellent Line and load regulation, simple switching remote scanning
- Highly accurate 4-digit display with fixed resolution, low power range, averaging of the current measuring device
- Fast and intuitive adjustment of voltage and current
- Special Lock function to lock of voltage and current settings at the touch of a button
- Unique V-clamping function enables a complete turn of the voltage controller by 300°, in order to cover any voltage range
- DC output switch allows a set of voltage and current, before the load is connected
- Operating temperature range: +5 °C to +40 °C, 20% to 80% relative air humidity
- Storage temperature range: -40 °C to +70 °C
- Suitable for use in closed rooms at high up to 2000 m, pollution degree 2
- Intelligent quiet fan with variable speed in support of the convection cooling
