Aim TTi PLH250-P Bench PSU (adjustable voltage) 0 - 250 0 - 0.375 A 94 W No. of outputs 1 x
EAN:
Part number:
Item no:
Number
Total (€ 869.75 / piece)
€ 869.75
plus VAT.
Highlights & Details

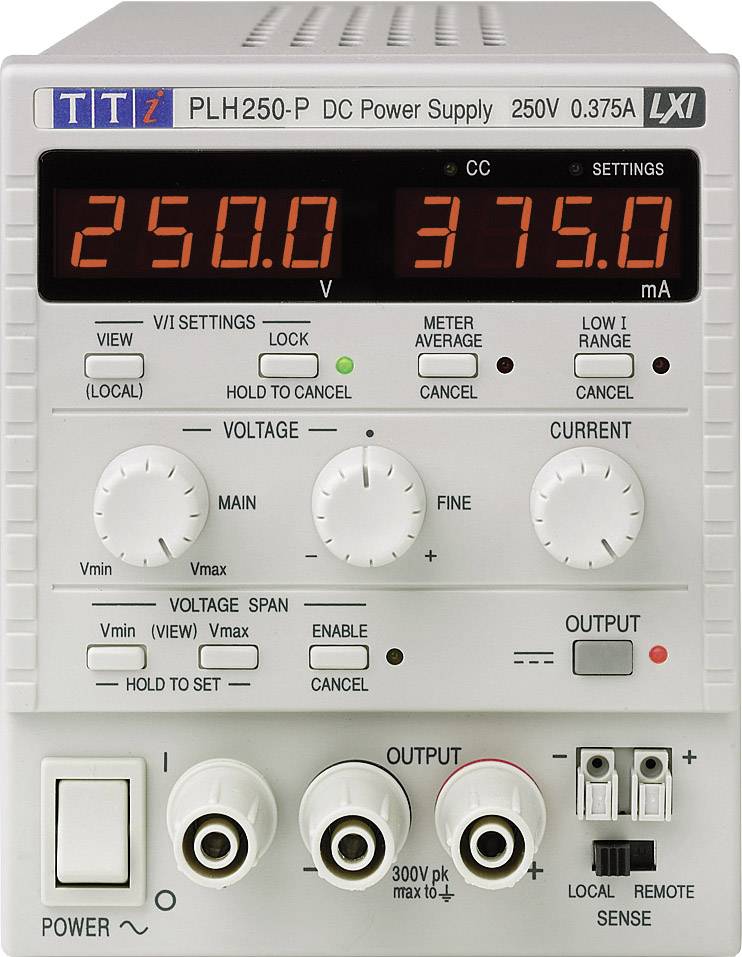

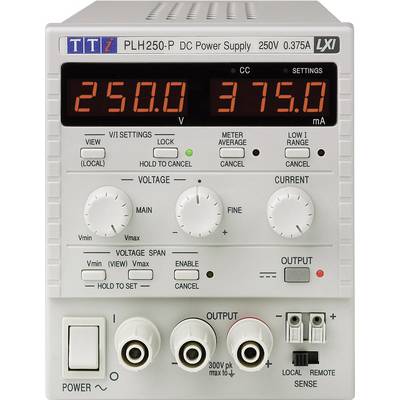

Laboratory power supply AIM-TTi PLH250P, 0 to 250V / 0 to 0.375A, 94W
- No. of outputs 1 x
- 0 - 250 / 0 - 0.375 A
- 94 W
Technical specifications
- Type
PLH250-P
- Product type
Bench PSU (adjustable voltage)
- No. of outputs
1 x
94 W
Manufacturer's standards (no certificate)
- Input voltage
115 V AC
230 V AC
- Connections
Pole terminal
- Output voltage (max.)
250 V
- Output voltage (min.)
0 V
- Max. output current
0.375 A
- Output current (min.)
0 A
- Max. temperature
+40 °C
- Min. temperature
+5 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1418462 Aim TTi PLH250-P Bench PSU (adjustable voltage) 0 - 250 0 - 0.375 A 94 W No. of outputs 1 x
Information
Information 1418462 Aim TTi PLH250-P Bench PSU (adjustable voltage) 0 - 250 0 - 0.375 A 94 W No. of outputs 1 x
Conformity certificate
Conformity certificate 1418462 Aim TTi PLH250-P Bench PSU (adjustable voltage) 0 - 250 0 - 0.375 A 94 W No. of outputs 1 x
Description
The PLH-P includes all manual control features of the PLH, but also offers full remote control and readout for table and system applications with RS-232, USB and Ethernet (LAN/LXI). PLH is a further development of the AIM-TTi PL series. The PL's ultra-compact design, high power density, and intelligent analogue controls have been integrated into the PLH, which also provides voltages up to 250V to handle applications that were previously outside the capabilities of traditional desktop power supplies, as well as areas such as magnetic applications.
This text is machine translated.
This text is machine translated.
Features
- Max. Input power: 280 VA
- low output noise and short recovery time after interference pulses
- high power density – up to 94 W per quarter-rack, housing 3 HE
- unusually small table dimensions and, for applications with rack mounting, up to 4 devices can be mounted in a single slot
- excellent mains and load control, Simple switching Remote sensing
- High-precision 4-digit fixed resolution displays, low current range, averaging of the current meter
- Fast and intuitive setting of voltage and current
- Special locking function for locking voltage and current settings at the push of a button
- Unique V-Span function enables a complete rotation of the voltage regulator by 300°, To cover any voltage range
- DC output switch allows setting voltage and current before the load is connected
- Operating temperature range: +5 °C to +40 °C, 20% to 80% relative humidity
- Storage temperature range: -40 °C to +70 °C
- suitable for use in closed rooms at heights up to 2000 m, pollution degree 2
- intelligent, low-noise fan with variable speed to support convection cooling
