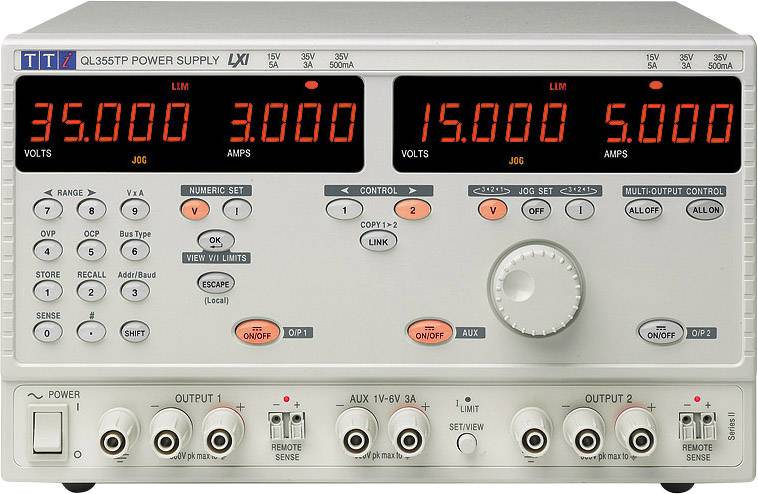

Aim TTi QL355T SII Bench PSU (adjustable voltage) 0 - 35 0 - 3 A 228 W No. of outputs 3 x
EAN:
Part number:
Item no:
Number
Total (€ 1,301.68 / piece)
€ 1,301.68
plus VAT.
Highlights & Details
3-channel laboratory power supply aim TTi QL 355 T, 0 to 15 V, 0 to 35 V, 1 to 6 V
- Control via a PC
- Sense function
- Outputs: 3 x
- Max power: 640W
- Voltage setting range(s):
- Current setting range(s):
- PSU Technology: Switched Mode
- Type: Bench
Technical specifications
- Type
QL355T SII
- Product type
Bench PSU (adjustable voltage)
- No. of outputs
3 x
228 W
- Dim
(L x W x H) 290 x 280 x 160 mm
Manufacturer's standards (no certificate)
- Input voltage
115 V AC
230 V AC
- Weight
10.5 kg
- Connections
Pole terminal
- Type
Bench
- Output voltage (max.)
35 V DC
- Output voltage (min.)
0 V DC
- Output voltage 2 (max.)
35 V DC
- Output voltage 2 (min.)
0 V DC
- Output voltage 3 (max.)
6 V DC
- Output voltage 3 (min.)
0 V DC
- Max. output current
3 A
- Output current (min.)
0 A
- Output current 2 (max.)
3 A
- Output current 2 (min.)
0 A
- Output current 3 (max.)
3 A
- Output current 3 (min.)
0 A
- Inputs
IEC C14
- Type
Switched Mode
- Width
280 mm
- Height
160 mm
- Length
290 mm
- Residual ripple
0.35 MV RMS
- Max. temperature
+40 °C
- Min. temperature
+5 °C
640 W
- Output rating
640 W
- Input voltage
88 - 264 V AC
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1418426 Aim TTi QL355T SII Bench PSU (adjustable voltage) 0 - 35 0 - 3 A 228 W No. of outputs 3 x
Information
Information 1418426 Aim TTi QL355T SII Bench PSU (adjustable voltage) 0 - 35 0 - 3 A 228 W No. of outputs 3 x
Description
A range of state-of-the-art power supplies. More powerful and more features than the EA-PS 2000 series. The units are closed at the top and bottom and do not have external heat sinks and are therefore particularly suited to educational and training settings. The output values (voltage+current) and the preset values (voltage, current and OVP) are displayed separately. Voltage drops in the output cables can be corrected using the sense function. Front-mounted interface connector with analogue input and output for external control and monitoring. (Universal USB to analogue interface EA-UTA 12 for external control by a Windows PC is optional). The 640 VA devices are designed using switched-mode power supply technology with PFC.
Features
- More than 100 W per main output
- Several areas for greater flexibility in the output currents
- Setting by numeric entry or with a dial
- Several non-volatile memory setting
- Selectable identification terminals; compact modular design with a width suitable for table or frame
Scope of delivery
- DC bench power supply
