Aim TTi QPX1200S Bench PSU (adjustable voltage) 0 - 60 0 - 50 A 1200 W No. of outputs 1 x
EAN:
Part number:
Item no:
Number
Total (€ 1,810.92 / piece)
€ 1,810.92
plus VAT.
Highlights & Details

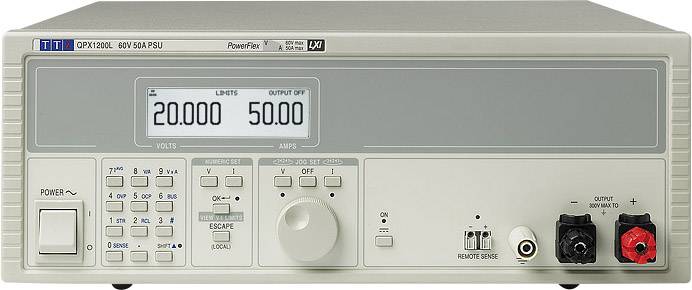

Laboratory power supply aim TTi QPX1200S, 0 to 60 V/0 to 50 A, 1200 W
- No. of outputs 1 x
- 0 - 60 / 0 - 50 A
- 1200 W
Technical specifications
- Type
QPX1200S
- Product type
Bench PSU (adjustable voltage)
- No. of outputs
1 x
1200 W
- Dim
(L x W x H) 413 x 350 x 130 mm
Manufacturer's standards (no certificate)
- Input voltage
115 V AC
230 V AC
- Weight
8.8 kg
- Output voltage (max.)
60 V DC
- Output voltage (min.)
0 V DC
- Max. output current
50 A
- Output current (min.)
0 A
- Width
350 mm
- Height
130 mm
- Length
413 mm
- Residual ripple
3 mVrms
- Max. temperature
+40 °C
- Min. temperature
+5 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1418448 Aim TTi QPX1200S Bench PSU (adjustable voltage) 0 - 60 0 - 50 A 1200 W No. of outputs 1 x
Information
Information 1418448 Aim TTi QPX1200S Bench PSU (adjustable voltage) 0 - 60 0 - 50 A 1200 W No. of outputs 1 x
Description
For the work place or system use with connection strips on the front and rear side. The powerflex design offers current and voltage combinations between 60 V/20 A and 20 V/50 A. The Mixed Mode Control with linear output level enables low output noise.
This text is machine translated.
This text is machine translated.
Features
- The powerflex design offers variable voltage/current combinations
- Up to 60 V and up to 50A within the envelope performance
- Setting by numeric entry or with a dial
- Height Adjustment Resolution 1 mV
- 3U enclosure for table case or rack mounting, connection terminals at the front and rear
- Analogue remote control interface
