Aim TTi QPX750SP Bench PSU (adjustable voltage) 80 V (max.) 750 W LAN, LXI, USB , GPIB No. of outputs 1 x
EAN:
Part number:
Item no:
Number
Total (€ 1,873.11 / piece)
€ 1,873.11
plus VAT.
Highlights & Details
750W DC Laboratory power supply
- No. of outputs 1 x
- 80 V (max.) /
- 750 W
- LAN, LXI, USB , GPIB
Technical specifications
- Type
QPX750SP
- Product type
Bench PSU (adjustable voltage)
- No. of outputs
1 x
750 W
- Technology
SMPSU
- Interfaces
LAN
LXI
USB
GPIB
- Dim
(L x W x H) 413 x 320 x 130 mm
Manufacturer's standards (no certificate)
- Input voltage
110 V AC
240 V AC
- Connections
4mm juice and binding post
- Output voltage (max.)
80 V
- Load balance
0.01 %
- Width
320 mm
- Height
130 mm
- Length
413 mm
- Residual ripple
3 mVrms
- Max. temperature
40 °C
- Min. temperature
5 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2361758 Aim TTi QPX750SP Bench PSU (adjustable voltage) 80 V (max.) 750 W LAN, LXI, USB , GPIB No. of outputs 1 x
Description

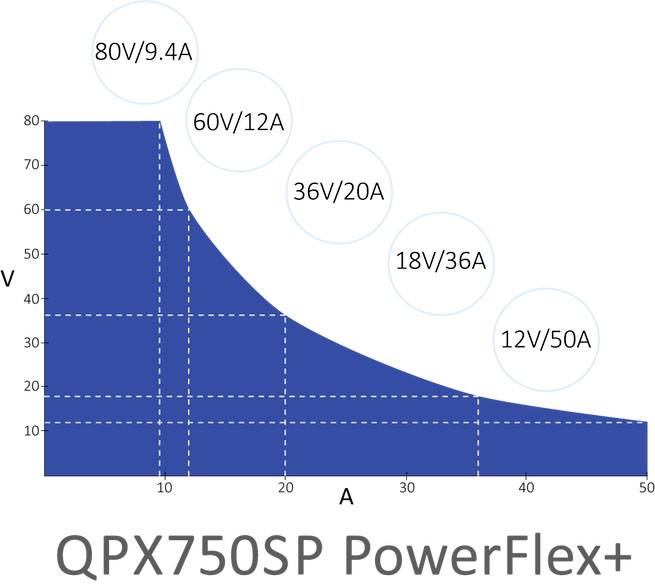

Counter range Powerflex+ operation
This text is machine translated.
This text is machine translated.
Features
- logging and sequencing test bridge software provided.
