Aim TTi TSX1820 Bench PSU (adjustable voltage) 0 - 18 0 - 20 A 360 W No. of outputs 1 x
EAN:
Part number:
Item no:
Number
Total (€ 928.57 / piece)
€ 928.57
plus VAT.
Highlights & Details

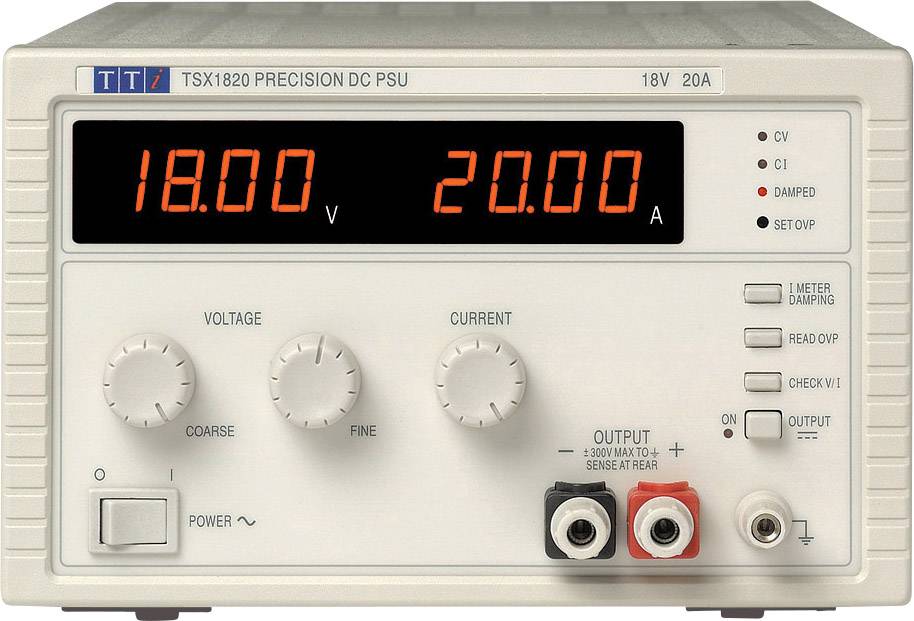

Laboratory power supply aim TTi TSX1820, 18 V/20 A, 360 W
- No. of outputs 1 x
- 0 - 18 / 0 - 20 A
- 360 W
Technical specifications
- Type
TSX1820
- Product type
Bench PSU (adjustable voltage)
- No. of outputs
1 x
360 W
- Dim
(L x W x H) 130 x 350 x 210 mm
Manufacturer's standards (no certificate)
- Input voltage
115 V AC
230 V AC
- Weight
5.0 kg
- Connections
Screw connector
- Output voltage (max.)
18 V DC
- Output voltage (min.)
0 V DC
- Max. output current
20 A
- Output current (min.)
0 A
- Width
350 mm
- Height
210 mm
- Length
130 mm
- Max. temperature
+40 °C
- Min. temperature
+5 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1418443 Aim TTi TSX1820 Bench PSU (adjustable voltage) 0 - 18 0 - 20 A 360 W No. of outputs 1 x
Information
Information 1418443 Aim TTi TSX1820 Bench PSU (adjustable voltage) 0 - 18 0 - 20 A 360 W No. of outputs 1 x
Description
Desktop power supplies with output higher than 350W in a compact, lightweight case. Available with analogue control or with digital control and comprehensive busprogrammierung as well as with 2 output combinations.
This text is machine translated.
This text is machine translated.
Features
- Very accurate indicator of the digital output
- Surge protection and connection terminals for sense line
- Constant current or constant voltage operation with automatic switch-over
- Provides up to 20 A
- Simultaneous display of voltage and current
- Signal transmitter for constant current/constant voltage modes and output status and display damping
- Adjustable overvoltage trigger, control over temperature and current drift
- Mains connector on the rear panel and connection terminals for sense line
- Wxdxh: 130 x 210 x 350 mm
