Aim TTi USB 5 MHz (max) Sinus, Rectangle, Pulse, Triangle
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

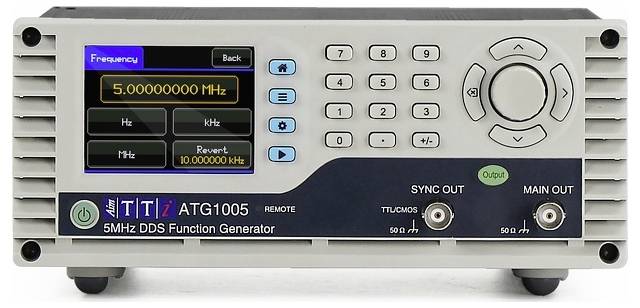

ATG1005 a series
- 1 MHz to 5 MHz function generator
- Amplitude from 1 mVss to 10 Vss (at 50 Ω) with 1 mV resolution
- Dedicated sync output
- Intuitive operation via touch-screen
- Linear/logarithmic sweep with single or double flank
- Sweep and FSK/PSK modulation
- Adjustable display colors
- Compact footprint, aluminum housing (213 x 230 x 98 mm (WxDxH)
- Kensington lock connection
- USB-interface for remote control, SCPI-compatible
- Free Test Bridge Control Software
Technical specifications
- Product type
USB
- Frequency range
5 MHz (max)
- Signal output types
Sinus
Rectangle
Pulse
Triangle
- Frequency range (sine)
1 mHz - 5 MHz
- Display
Touchscreen
Manufacturer's standards (no certificate)
- Dim
(W x H) 213 mm x 98 mm
- Weight
1.2 kg
- Max. frequency
5 MHz
- Features
Modulation
- Reading category
CAT II
- Width
213 mm
- Height
98 mm
- Interfaces
USB
- Voltage supply
230 V/AC
- Type
53100-0170
Documents & Downloads
Datasheet
Datasheet 3734913 Aim TTi USB 5 MHz (max) Sinus, Rectangle, Pulse, Triangle
User & Safety Instructions
User & Safety Instructions 3734913 Aim TTi USB 5 MHz (max) Sinus, Rectangle, Pulse, Triangle
Description
The ATG1005 Series Function Generators are the first models in the new A Series from Aim-TTi. Developed to meet the high requirements in the fields of design, testing and training, the ATG1005 offers high-quality DDS waveforms including sweep and FSK/PSK modulation.
