Akyga AK-CH-22 USB charger 25 W 1x USB-C® Power Delivery White Indoors
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.08
3
4% = € 0.41
€ 9.67
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.08 / piece)
€ 10.08
plus VAT.
Only 7 Piece(s) available

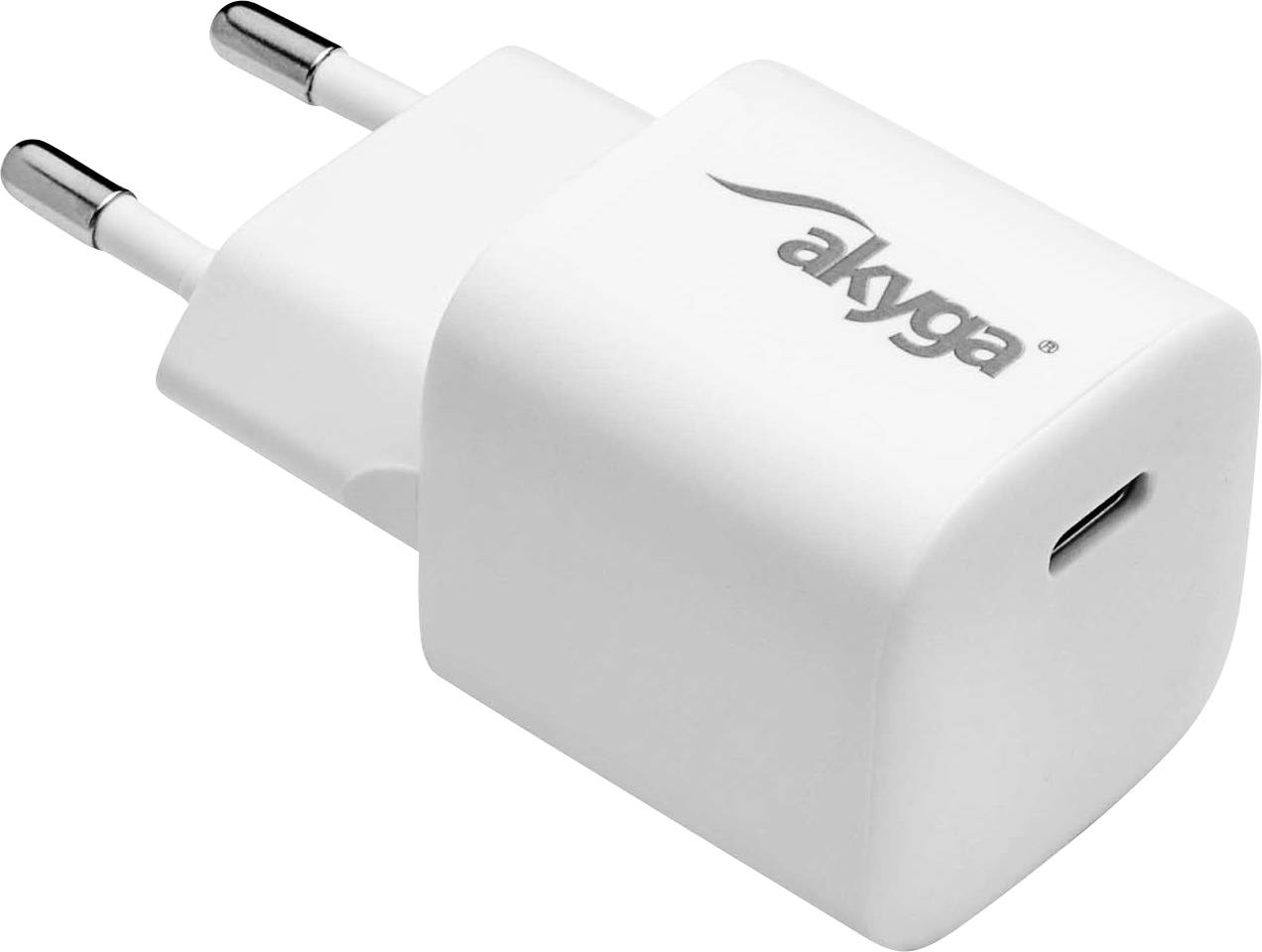

Akyga AK-CH-22 USB charger
Technical specifications
- Product Colour: White
- Packaging dimensions (L x B x H) 160 x 86 x 40 mm
- Net weight: 44 g
- Gross weight 79 g
- Power supply voltage 110-240 V/50/60 Hz
- Maximum force 25 W
- Manufacturing material: ABS
- Operating temperature 5 °C - 50 °C
- Product dimensions (L x W x H) 70 x 35 x 32 mm
- Power supply line: CEE 7/16 (Europlug)
- Earthing: Without (II protection class)
- Series: Universal
- Power input < 0.5 A.
- Mechanical shut-off switch: Without
- OVP fuse: Yes
- OCP Backup: Yes
- OTP fuse: Yes
- SCP fuse: Yes
- Display: No.
- MTBF: 100000 h
- Standard: Quick charge 3.0, Power delivery 3.0, GaN
- Product type
USB charger
25 W
- Inputs
Europlug
- Input voltage
240 V AC
- No. of outputs
1 x
- Outputs
1x USB-C®
- Output voltage
5 V /
12 V
- Output current (max.) - rounded
3 A
- Max. output current
3 A
- Type
AK-CH-22
- Suitable for
Smartphone
Tablet
- Suitable for
Universal
- Dim
(L x W x H) 70 x 35 x 32 mm
- Height
32 mm
- Length
70 mm
- Width
35 mm
- Factory colour
White
- Used at
Indoors
- Charging method
Power Delivery
- Type
Power supply unit
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3338501 Akyga AK-CH-22 USB charger 25 W 1x USB-C® Power Delivery White Indoors
User & Safety Instructions
User & Safety Instructions 3338501 Akyga AK-CH-22 USB charger 25 W 1x USB-C® Power Delivery White Indoors
Description
The Akyga® AK-CH-22 USB-C charger is a modern device that combines innovation with a practical and compact design. Thanks to the GaN technology it is much more efficient than conventional chargers. Gallium nitride enables lower energy loss, WAS results in lower heat release, greater efficiency and a smaller size of the device. This makes the charger an ideal solution for home use as well as while traveling.
The GaN charger is equipped with a USB Type-C connector that provides versatility and compatibility with most of the electronic devices available on the market. The maximum output power is 25 W, WAS guarantees fast and efficient charging. Thanks to the Qualcomm Quick Charge 3.0 technology, the charger can charge devices up to four times faster than conventional mobile phone chargers. And with Power Delivery (PD) support, the USB-C cube adjusts the charging power to the specifications of the connected device, ensuring a safe charging process. These technologies make it easy for the USB-C charger to charge devices such as smartphones, tablets, headphones, or a wireless mouse.
The mobile charger does not have an integrated USB cable, so that users can individually select the length and type of cable end, WAS further increases its versatility and adaptability to individual needs.
The USB-C wall charger is a synonym for modernity and functionality. Thanks to the advanced GaN technology, compact design and quick charging, this product meets the expectations of even the most demanding users. It is the perfect solution for all, who are looking for an efficient and versatile tool for charging their electronic devices under all conditions
The Akyga® AK-CH-22 USB-C charger is a modern device that combines innovation with a practical and compact design. Thanks to the GaN technology it is much more efficient than conventional chargers. Gallium nitride enables lower energy loss, WAS results in lower heat release, greater efficiency and a smaller size of the device. This makes the charger an ideal solution for home use as well as while traveling.
This text is machine translated.
The GaN charger is equipped with a USB Type-C connector that provides versatility and compatibility with most of the electronic devices available on the market. The maximum output power is 25 W, WAS guarantees fast and efficient charging. Thanks to the Qualcomm Quick Charge 3.0 technology, the charger can charge devices up to four times faster than conventional mobile phone chargers. And with Power Delivery (PD) support, the USB-C cube adjusts the charging power to the specifications of the connected device, ensuring a safe charging process. These technologies make it easy for the USB-C charger to charge devices such as smartphones, tablets, headphones, or a wireless mouse.
The mobile charger does not have an integrated USB cable, so that users can individually select the length and type of cable end, WAS further increases its versatility and adaptability to individual needs.
The USB-C wall charger is a synonym for modernity and functionality. Thanks to the advanced GaN technology, compact design and quick charging, this product meets the expectations of even the most demanding users. It is the perfect solution for all, who are looking for an efficient and versatile tool for charging their electronic devices under all conditions
The Akyga® AK-CH-22 USB-C charger is a modern device that combines innovation with a practical and compact design. Thanks to the GaN technology it is much more efficient than conventional chargers. Gallium nitride enables lower energy loss, WAS results in lower heat release, greater efficiency and a smaller size of the device. This makes the charger an ideal solution for home use as well as while traveling.
This text is machine translated.
