Akyga AK-EC-12 eMobility charging cable 5 m LED charging display (voltage/amperage/power)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Grounding: YesOVP fuse: YesOCP fuse: YesOPP fuse: YesOTP fuse: YesSCP fuse: YesManufacturing material: ABSProduct color: BlueDisplay: YesPackaging: Protective bagProduct dimensions (L x W x H): 5000 x 150 x 85 mmGross weight: 3.4 kgHandle on padlock: No.Cable material: CopperInsulation material TPE
- Product type
eMobility charging cable
- Type A
CEE 16 A
- Type B
Type 2
- No. of phases
3-phase
- Charging mode
Mode 2
- Cable length
5 m
- Cable features
LED charging display (voltage/amperage/power)
- Core layout
5 x 2.5 mm2 + 2 x 0.5 mm2
- Nominal voltage
450 V
- Nominal current
16 A
- Nominal current - rounded value
16 A
IP54
- Min. temperature
-30 °C
- Max. temperature
+50 °C
- Charging capacity
11 kW
- Charging current
16 A
Documents & Downloads
Datasheet
Datasheet 2588265 Akyga AK-EC-12 eMobility charging cable 5 m LED charging display (voltage/amperage/power)
User & Safety Instructions
User & Safety Instructions 2588265 Akyga AK-EC-12 eMobility charging cable 5 m LED charging display (voltage/amperage/power)
Warranty Terms
Warranty Terms 2588265 Akyga AK-EC-12 eMobility charging cable 5 m LED charging display (voltage/amperage/power)
Description

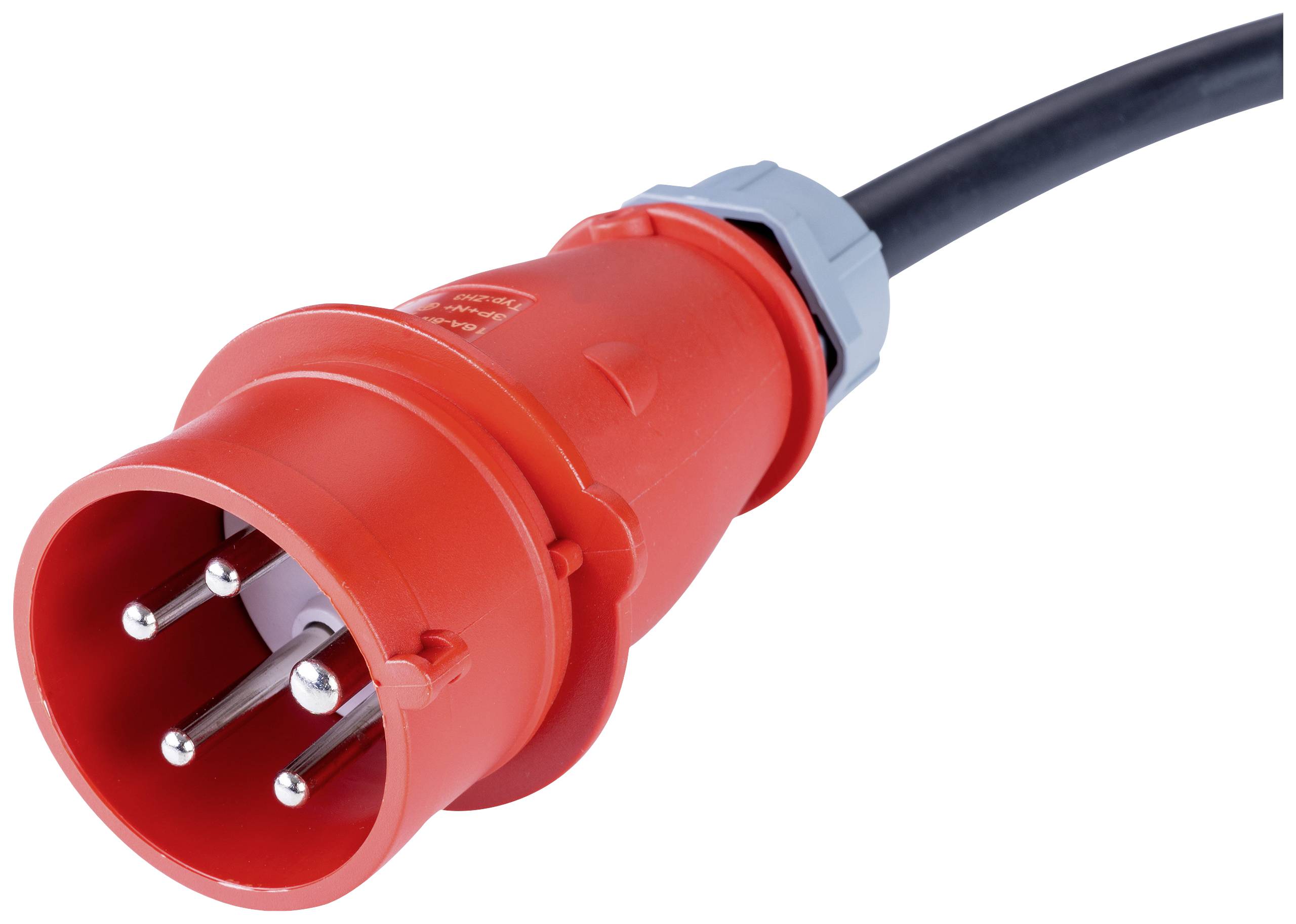

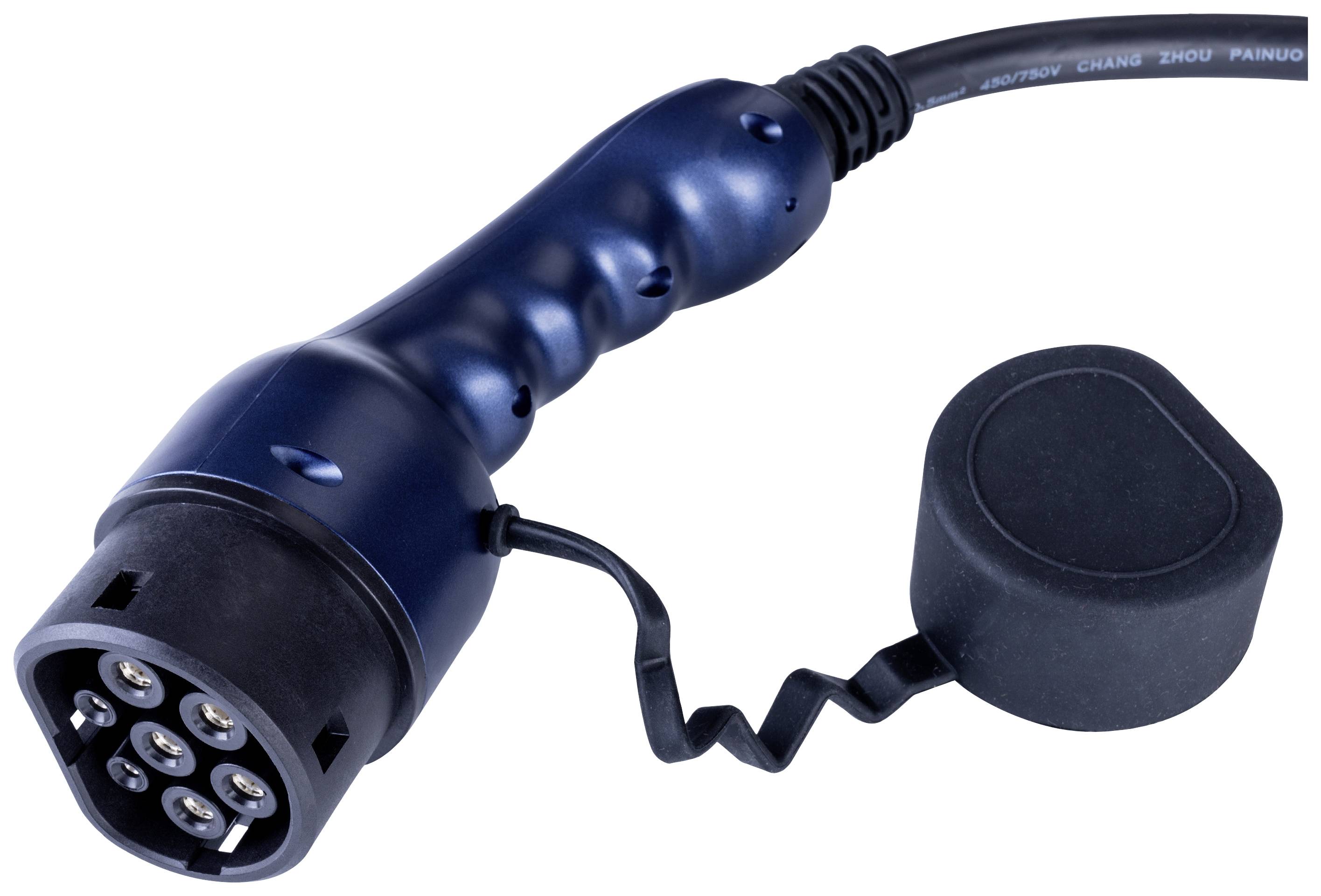

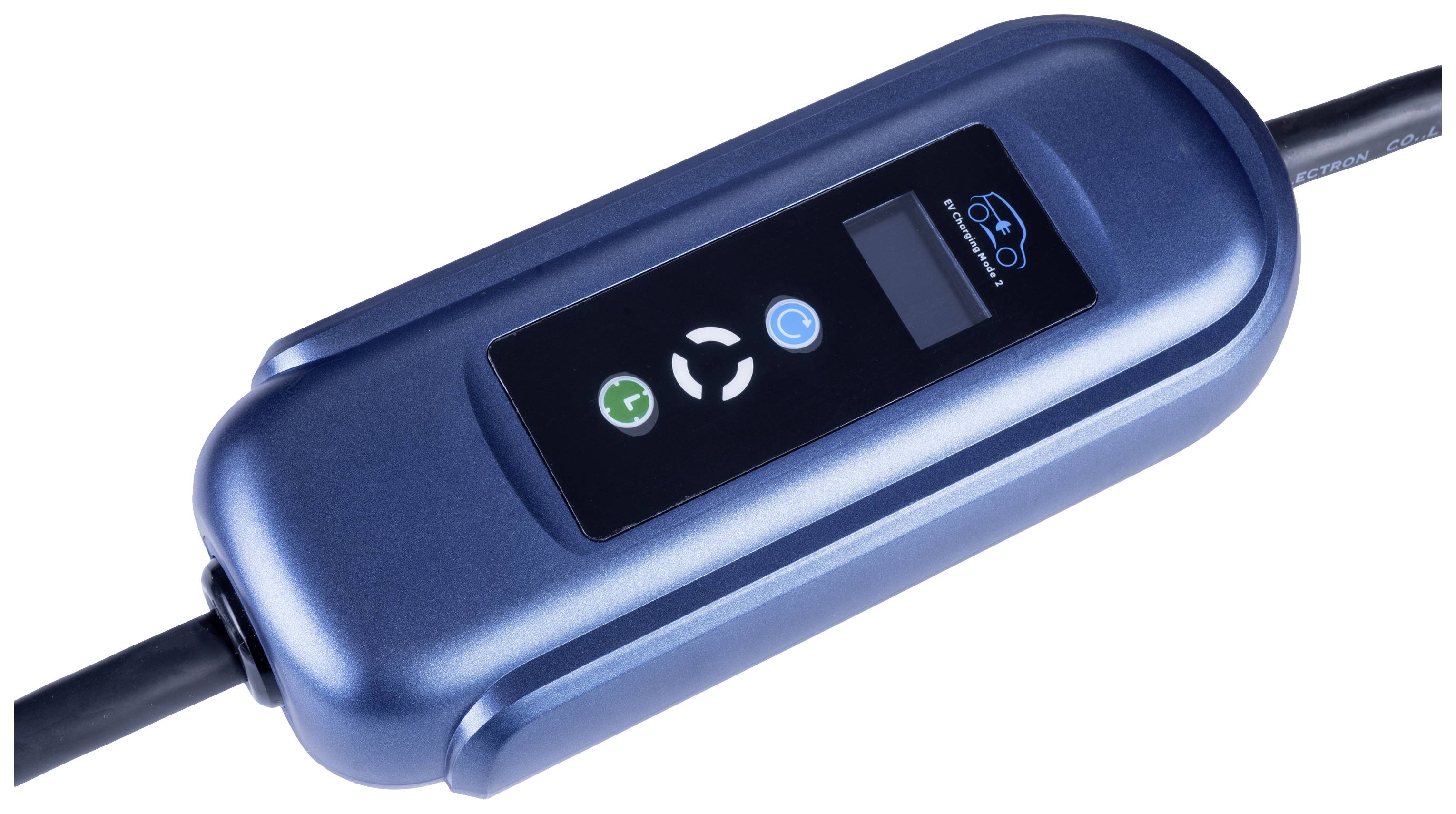

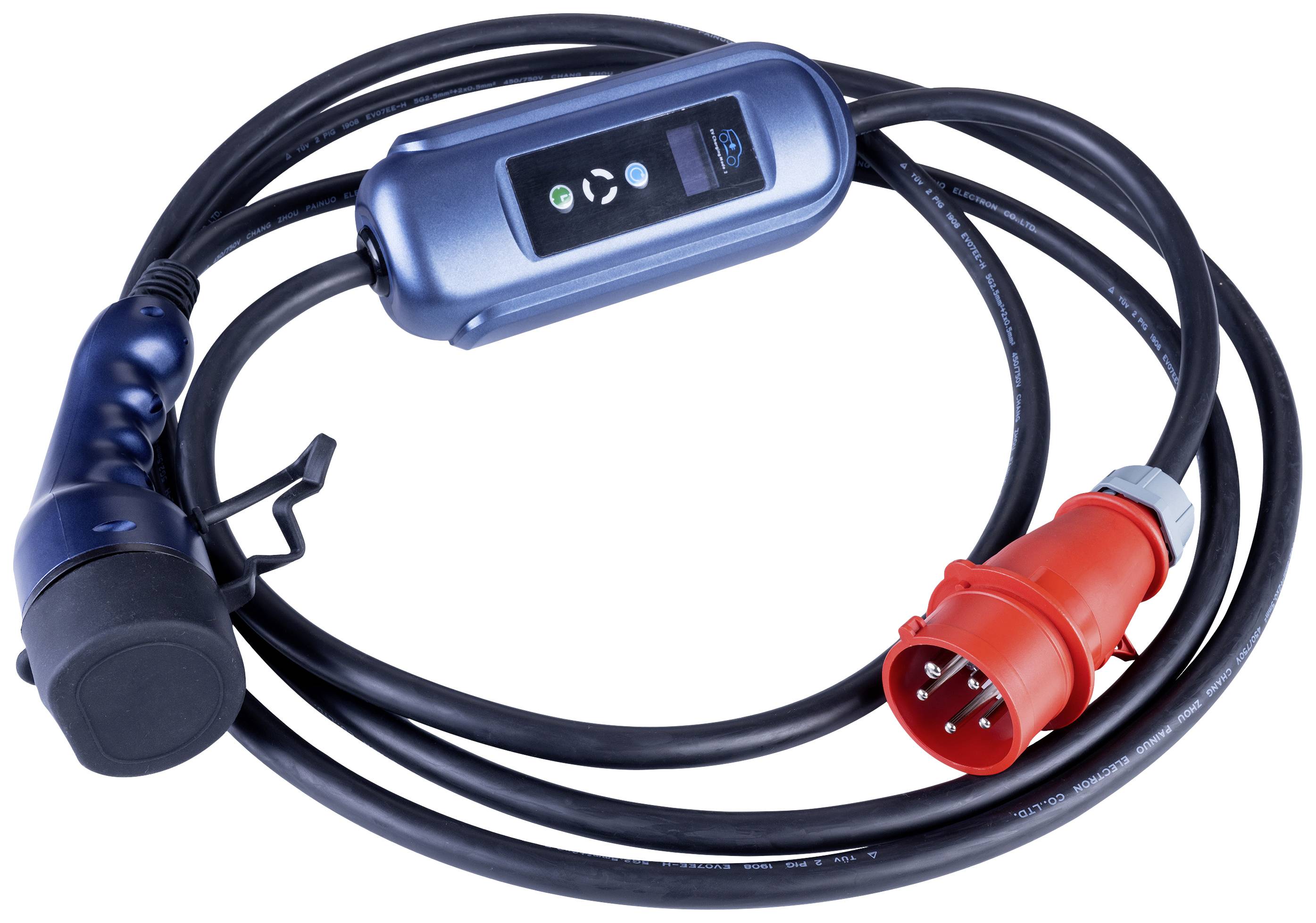

Akyga® AK-EC-12 is a three-phase charger for electric vehicles. The 5 m long cable ends with two plugs.The first has a Type 2 plug, which is recognized as a standard car charger in Europe, and the second one with a 5-CEE-pin plug, which enables charging with 400 V. The high quality of the cables usedGuarantees a stable connection when charging with a power of up to 11 kW. This way you can charge your electrician quicklyAnd without restrictions at home at a socket in the garage.The AK-EC-12 charger is basically a portable EVSE charging station. It has the most important features thatIn Wallbox stations. These include protection functions (OVP, OCP, OPP, OTP, SCP), among other thingsProtect hohem and voltage, and from overheating of the charger and vehicle battery. AboveIt is also possible to set the charging current via a button on the control panel called ControlBox. Omogućuje vamOdabir struje od: 6, 8, 10, 13 and 16 A as well as the setting of the charging time of 1 to 10 hours. The also has theControlBox via a built-in LCD display. It shows the current charging parameters, such as: Charging current and power,Mains voltage, total energy consumed by the device, charger temperature and charging time.The product will be useful when charging the batteries of electric cars, such as: Audi A3 e-Tron, BMW i3,BMW i8, Chevrolet Spark, Mercedes B Klasa E-Celi, Mercedes S500 PHEV, Mercedes SLS EV, Mercedes Vito E-Cell Van,Porsche Panamera S PHEV, Volkswagen e-Up, Volkswagen e- Golf, Volvo V60 PHEV.
