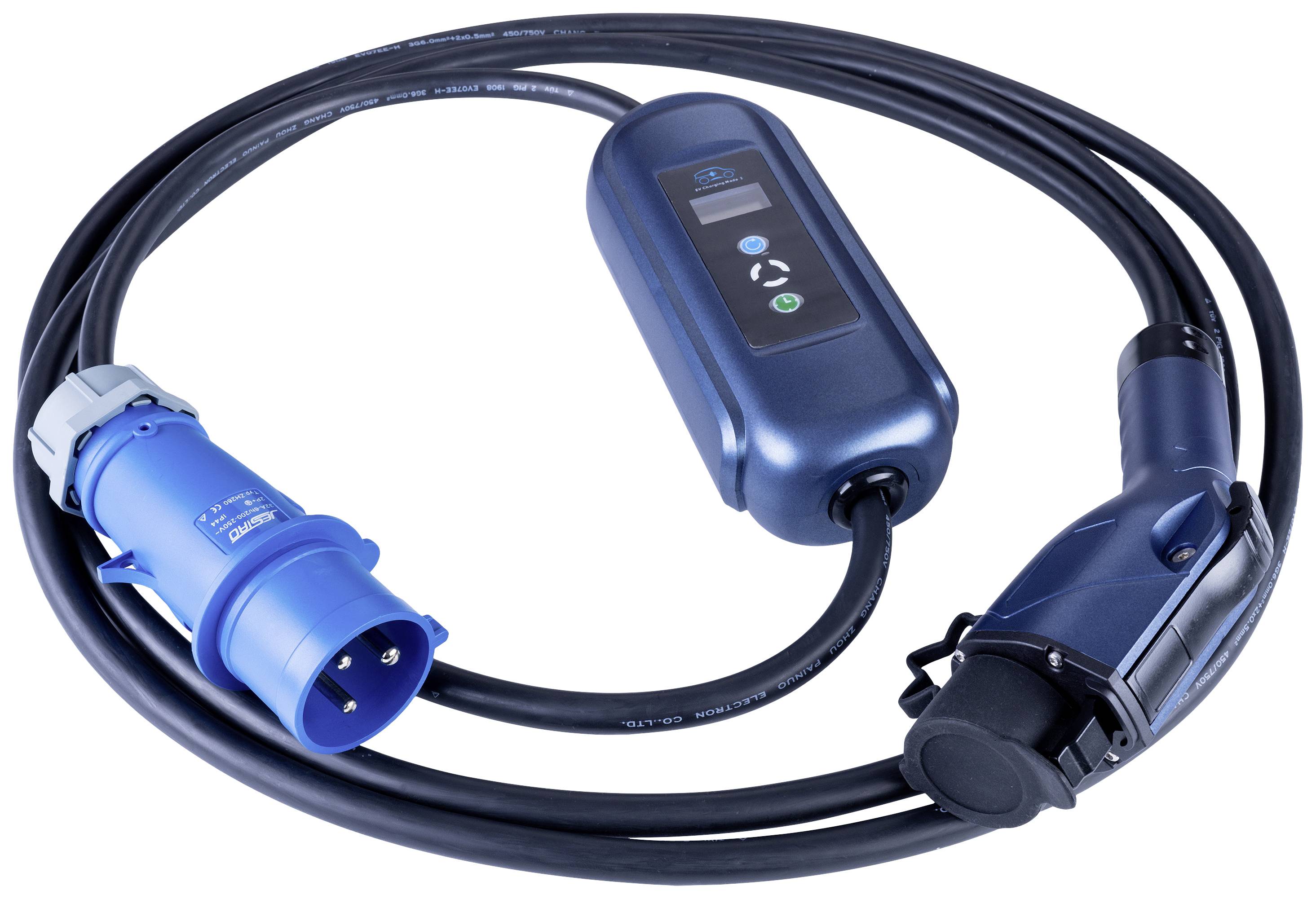

Akyga AK-EC-15 eMobility charging cable 5 m LED charging display (voltage/amperage/power)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Grounding: YesOVP fuse: YesOCP fuse: YesOPP fuse: YesOTP fuse: YesSCP fuse: YesManufacturing material: ABSProduct color: BlueDisplay: YesPackaging: Protective bagProduct dimensions (L x W x H): 5000 x 150 x 85 mmGross weight: 3.15 kgHandle on padlock: No.Cable material: CopperInsulation material TPE
- Product type
eMobility charging cable
- Type A
IEC plug
- Type B

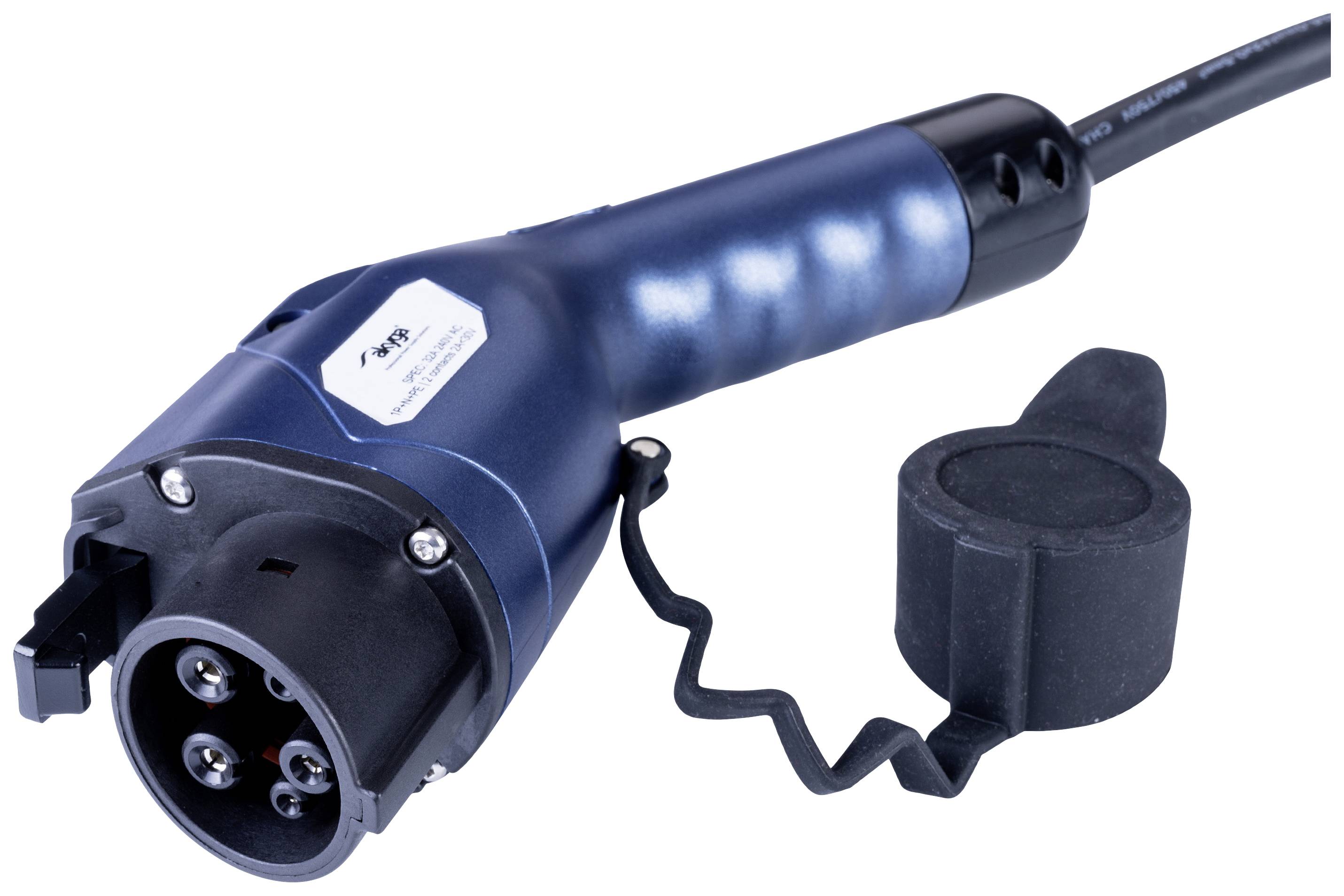

Type 1
- No. of phases
1-phase
- Cable length
5 m
- Cable features
LED charging display (voltage/amperage/power)
- Core layout
3 x 6 mm2 + 2 x 0.75 mm2
- Nominal voltage
250 V
- Nominal current
32 A
- Nominal current - rounded value
32 A
IP54
- Min. temperature
-30 °C
- Max. temperature
+50 °C
- Charging capacity
7.2 kW
- Charging current
32 A
Documents & Downloads
Datasheet
Datasheet 2588267 Akyga AK-EC-15 eMobility charging cable 5 m LED charging display (voltage/amperage/power)
User & Safety Instructions
User & Safety Instructions 2588267 Akyga AK-EC-15 eMobility charging cable 5 m LED charging display (voltage/amperage/power)
Warranty Terms
Warranty Terms 2588267 Akyga AK-EC-15 eMobility charging cable 5 m LED charging display (voltage/amperage/power)
Description

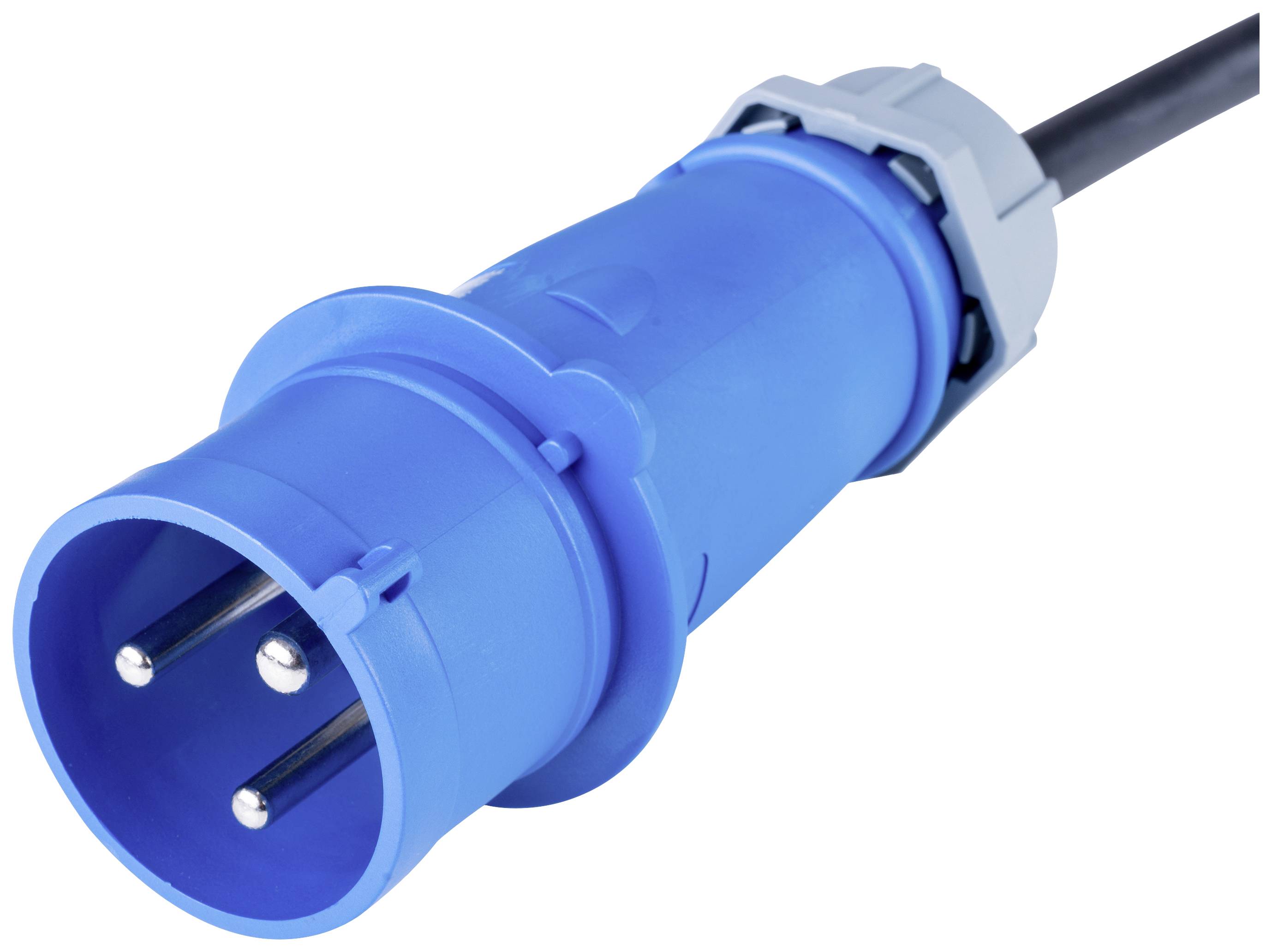

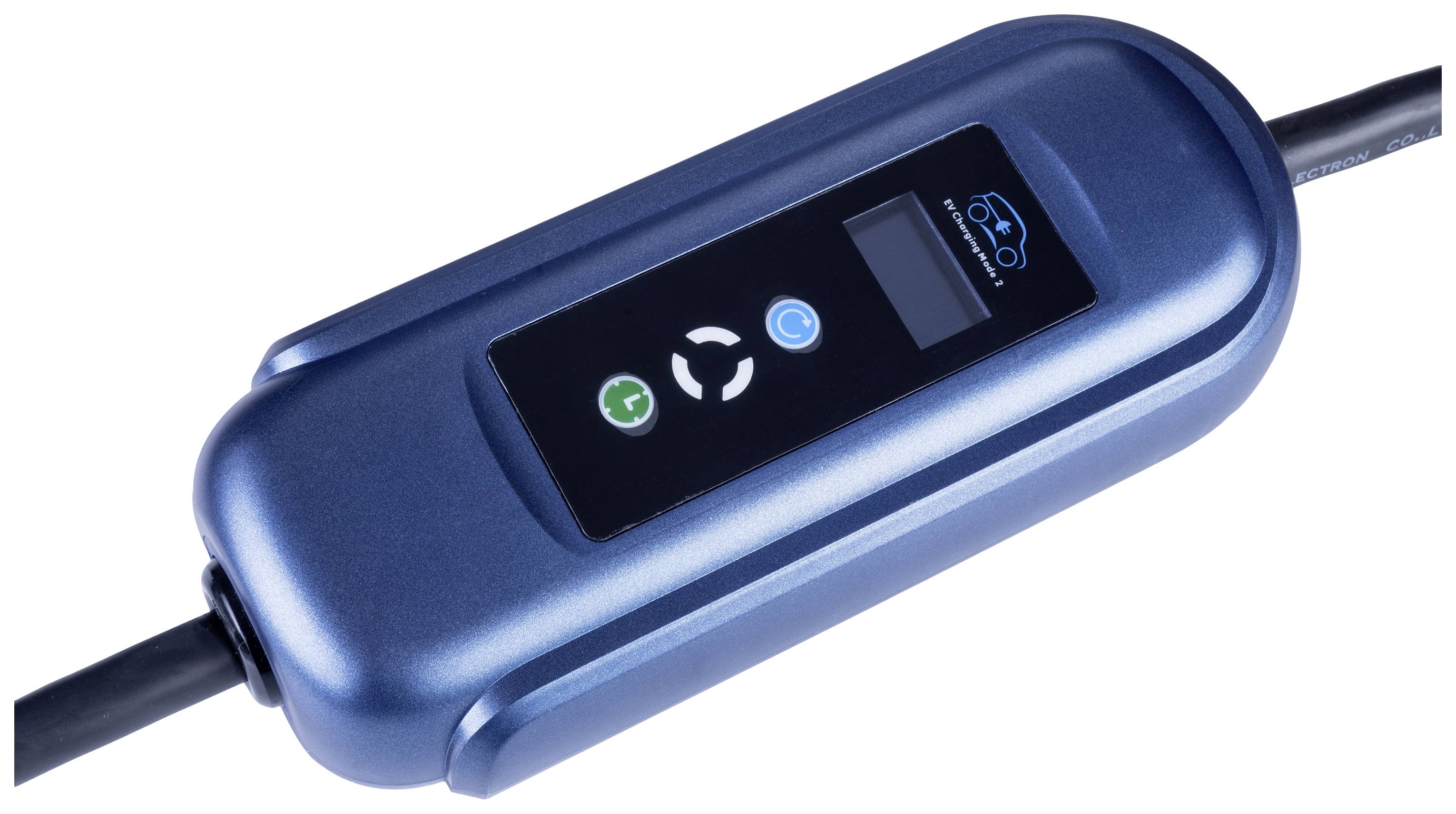

The Akyga® AK-EC-15 charger was developed for electric cars imported from America. It has a standard forThese type 1 cars are made of high-strength material. In the event of an accidental dropOr do not buy a new charger. In addition, the 5 m long cable is equipped with a special oneControlBox equipped. It is used to set the current and to monitor the current charging parameters.The built-in LED screen shows: Charging current and power, mains voltage, power consumption of the device,Charger temperature and charging time. Below these are buttons for selecting the current and for settingThe charging time limit. Five current strengths are available: 6, 10, 16, 20 and 32 A. In this wayYou can be sure that the internal charger of your electric car does not consume more power than your system can cope with.The IEC 60309 plug used for the charger is rated at 32A, was rated at up to 7.2 kWcorresponds to. In order to use the charger to its full extent, a robust electrical installation and a are therefore requiredAppropriate protection required.The product will be useful when charging the batteries of electric cars, such as: Nissan Leaf, Nissan NV200SE VAN, Citroen C-Zero, Fisker Karma, Ford Focus Electric, Ford C-Max Energi, Peugeot Ion, Peugeot Galicia, Opel Ampera,Chevrolet Volt, Smiths Edison VAN, Smiths Newton, Tata Indica Vista EV, Toyota Prius, Mistubishi I-MiEV, MitsubishiOutlander PHEV, Mia Electric Van, Mia Electric Car, Kia Soul.
