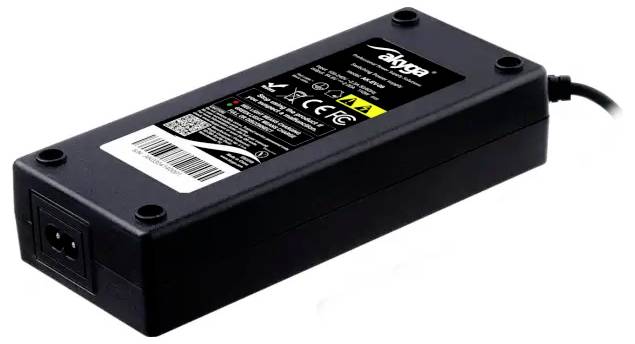

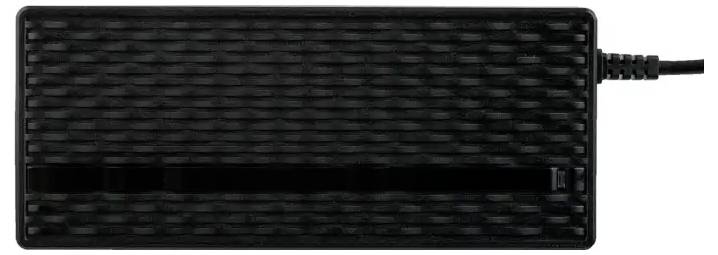

Akyga AK-EV-09 Electric bike battery charger 54.6 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Power input < 2.5 A.
- Earthing: Without (II protection class)
- OVP fuse: Yes
- OCP Backup: Yes
- OPP fuse: Yes
- SCP fuse: Yes
- Manufacturing material: ABS
- MTBF 10000 h
- Capacity: > 80%
- Output cable: Without limit
- Bolts of a socket: IEC C8
- Supply cable in set: No.
- Length of output cable 1 m.
- Illumination color: Two-colored diode
- Ferrite filter: No.
- Product type
Electric bike battery charger
- Battery voltage
54.6 V
- Weight
215 g
- Current limitation
2 A
- Factory colour
Black
IP20
- Nominal voltage
240 V AC
110 W
Documents & Downloads
Datasheet
Datasheet 3841224 Akyga AK-EV-09 Electric bike battery charger 54.6 V
User & Safety Instructions
User & Safety Instructions 3841224 Akyga AK-EV-09 Electric bike battery charger 54.6 V
Description

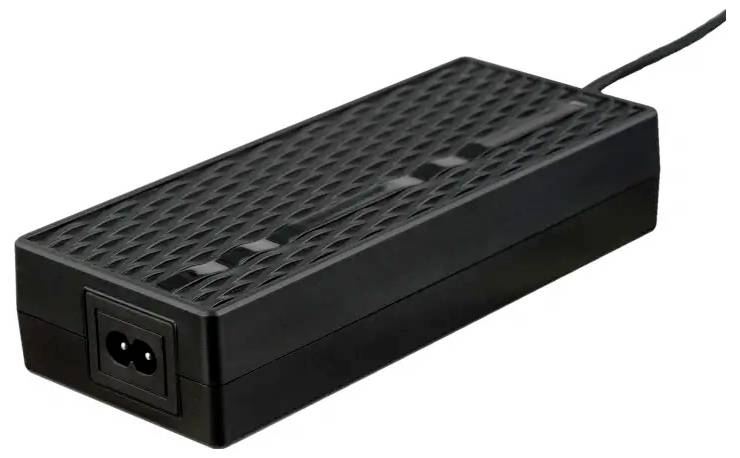

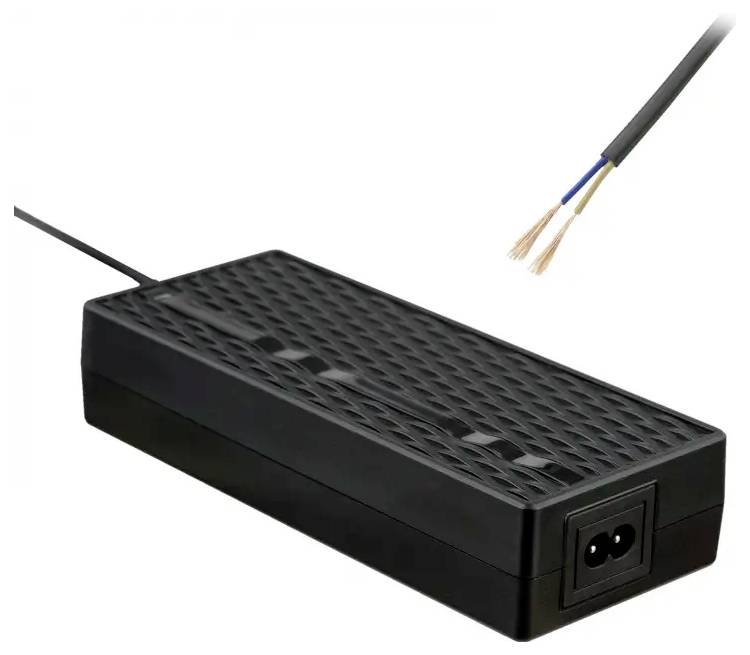

Akyga® AK-EV-09 is a power supply unit for charging electric vehicles equipped with a 48 V (13s) cell block. The product has no end on the output cable, so it is possible to install each plug that matches the device. The 1 meter long cable enables the comfortable charging of E-bikes or electric scooters. In addition, the device has been adapted to supply it with a cable with an IEC C8 connector, which is often used in the power supply area. A major advantage of the charger is its high efficiency, which is over 80%. It also features an LED light that shows the duration or the completion of the charging process. The product is available in black, packed in an Ecobox.
Warning! The power supplies are only intended for persons with appropriate qualifications. There is a risk of a fatal electric shock if used incorrectly.
This text is machine translated.
Warning! The power supplies are only intended for persons with appropriate qualifications. There is a risk of a fatal electric shock if used incorrectly.
