Akyga AK-EV-11 Electric scooter battery charger 42.0 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Power input < 2.5 A.
- Earthing: Without (II protection class)
- OVP fuse: Yes
- OCP Backup: Yes
- OPP fuse: Yes
- SCP fuse: Yes
- Manufacturing material: ABS
- MTBF 10000 h
- Capacity: > 80%

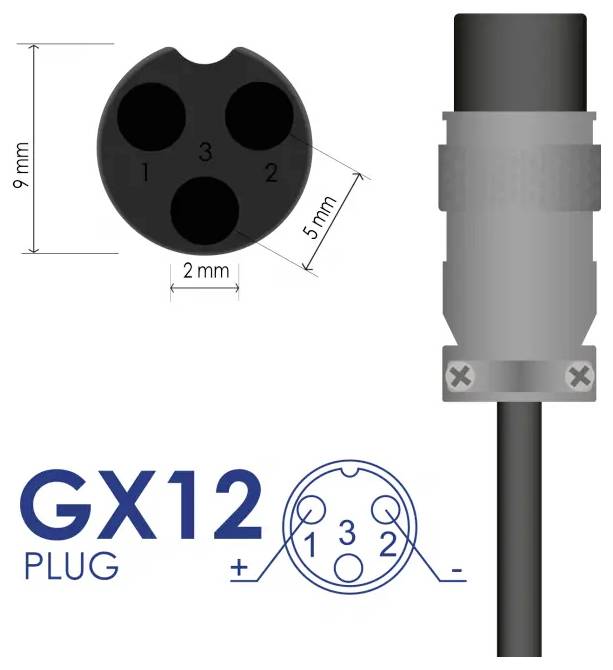

- Output cable GX12 3-pin 9mm
- Bolts of a socket: IEC C8
- Supply cable in set: No.
- Length of output cable 1 m.
- Illumination color: Two-colored diode
- Ferrite filter: No.
- Product type
Electric scooter battery charger
- Battery voltage
42.0 V
- Weight
322 g
- Current limitation
2 A
- Factory colour
Black
IP20
- Nominal voltage
240 V AC
84 W
Documents & Downloads
Datasheet
Datasheet 3841225 Akyga AK-EV-11 Electric scooter battery charger 42.0 V
User & Safety Instructions
User & Safety Instructions 3841225 Akyga AK-EV-11 Electric scooter battery charger 42.0 V
Description

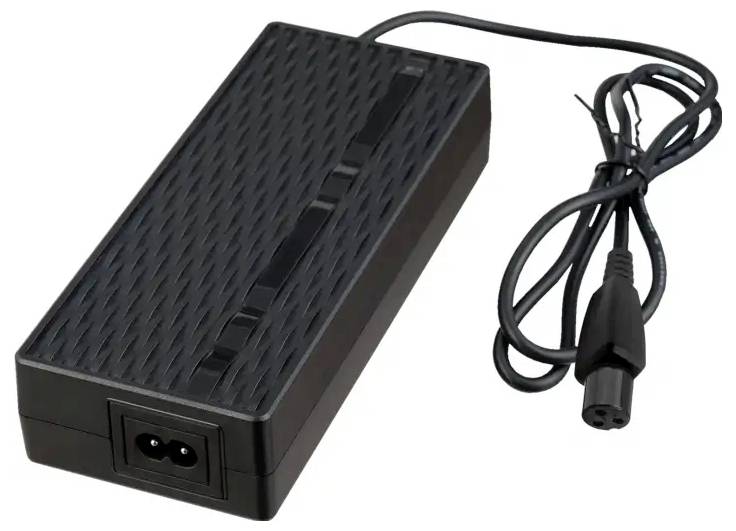

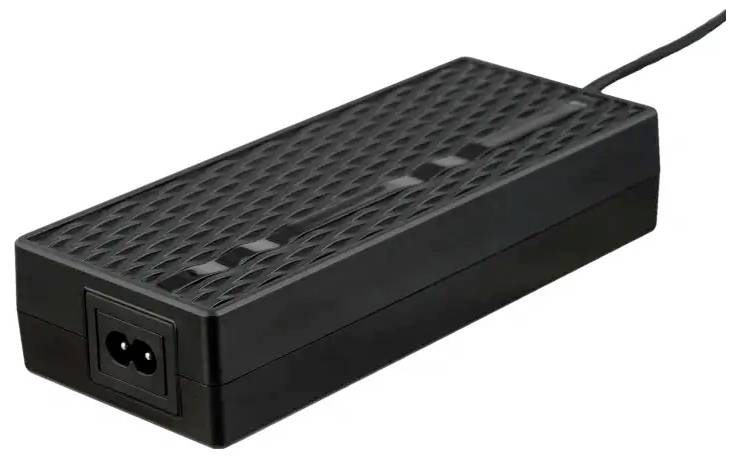

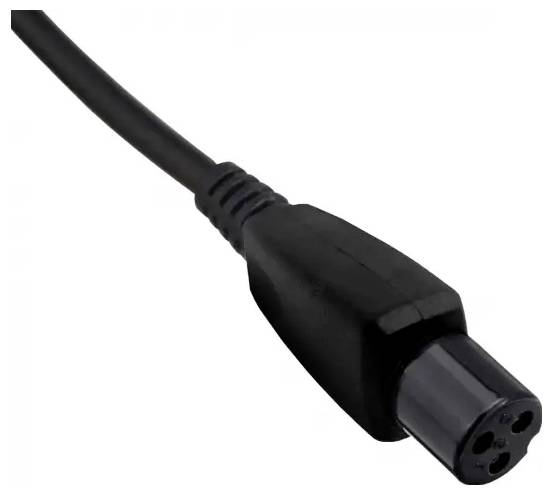

The Akyga® AK-EV-11 power supply is used to charge electric scooters and skateboards. It has a 3-pin connector, commonly known as Mini-XLR. It is a small 9 mm plug which fits among other things products of Goclever, Skymaster, Smart balance, Kawasaki, Manta or Razor. With the delivered performance parameters of 42 V / 2 A, you can charge the batteries of electric vehicles that are fitted with a 36 V Li-ion cell package. The greatest advantage of the product is its high efficiency and reliability. Moreover, the in-built LED-light enables the monitoring of the charging process, while the one meter long cable provides for a comfortable use.
