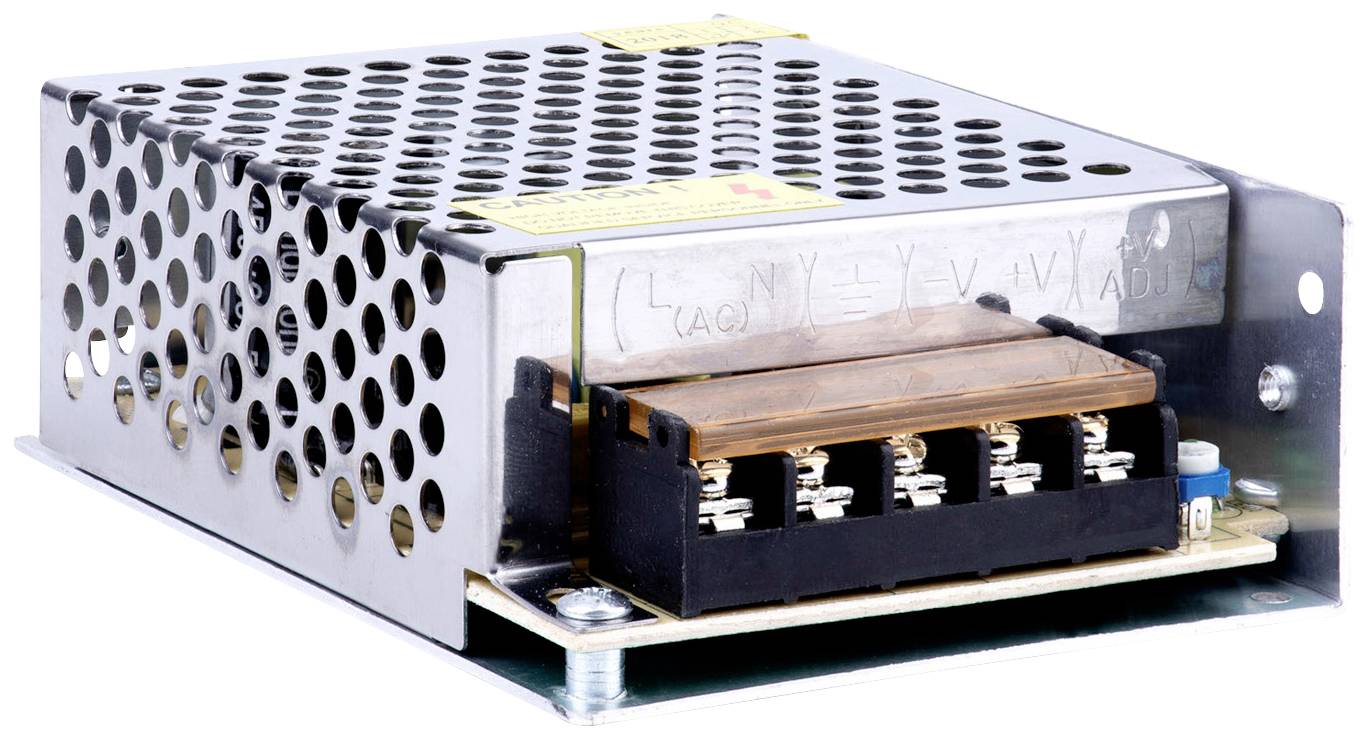

Akyga AK-L1-050 Industrial PSU 14 V DC 4.2 A 50 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 11.76
3
6% = € 0.65
€ 11.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 11.76 / piece)
€ 11.76
plus VAT.
Only 6 Piece(s) available
LED ADAPTER AK-L1-050 12V / 50W
Highlights & Details
- Output 14 V DC / 4.2 A
- Power 50 W
Technical specifications
- OVP fuse: Yes
- OCP Backup: Yes
- OPP fuse: Yes
- OTP fuse: Yes
- SCP fuse: Yes
- Operating temperature 5 °C - 50 °C
- Product dimensions (L x W x H): 110X78X37 mm
- Supply voltage 100-265 V
- IP rating: IP20
- Supply line: Screw
- Product type
Industrial PSU
- Input voltage (max.)
265 V
- Max. output current
4.2 A
- Output current (max.) - rounded
4.2 A
- Min. input voltage
100 V
- Dim
(L x W x H) 110 x 78 x 37 mm
- Output voltage (max.)
14 V DC
50 W
IP20
- Type
closed
- Operating temperature (max.)
50 °C
- Operating temperature (min.)
5 °C
- Weight
186 g
- Width
78 mm
- Height
37 mm
- Length
110 mm
- Type
AK-L1-050
- Output voltage (min.)
10.5 V DC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2865411 Akyga AK-L1-050 Industrial PSU 14 V DC 4.2 A 50 W
User & Safety Instructions
User & Safety Instructions 2865411 Akyga AK-L1-050 Industrial PSU 14 V DC 4.2 A 50 W
Description
The Akyga® AK-L1-050 is a 50W power supply unit for industrial automation systems, machine control systems and lighting based on LED technology, which is controlled by a potentiometer for power supply of LED strips, LED lamps, LED panels, RGB LED drivers and other electronic devices with 10.5 - 14V DC. The current carrying capacity of 4.2A allows , for example, a 10m LED strip with parameters of 4.8 W/m to supply.
To properly connect the power supply to the LED strip, multiply the length of the strip in meters by the thickness of the tape, and then select the power supply at a distance of min. 10% to ensure long and trouble free system operation, unless the manufacturer of the LED strip recommends otherwise.
This text is machine translated.
To properly connect the power supply to the LED strip, multiply the length of the strip in meters by the thickness of the tape, and then select the power supply at a distance of min. 10% to ensure long and trouble free system operation, unless the manufacturer of the LED strip recommends otherwise.
This text is machine translated.
