Akyga AK-L1-100 LED control gear 8.3 A 11 - 15 V DC 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 16.80
3
5% = € 0.83
€ 15.97
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 16.80 / piece)
€ 16.80
plus VAT.
14-day return policy included
Highlights & Details

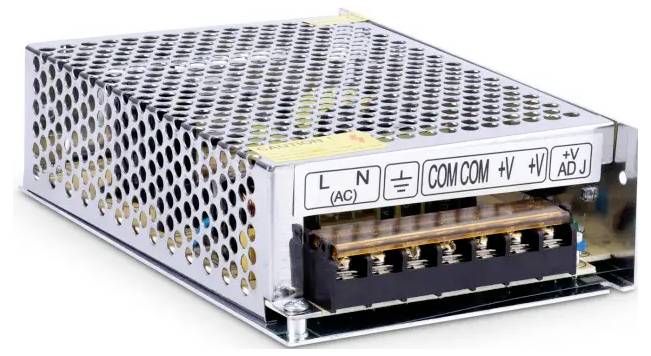

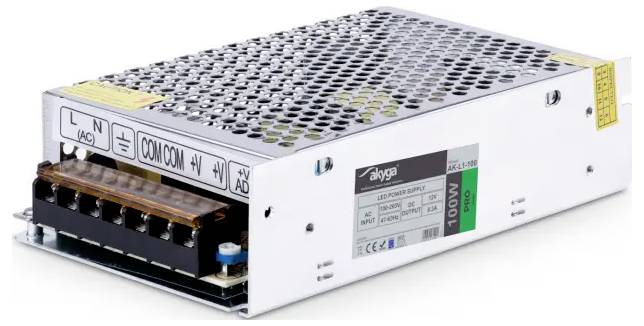

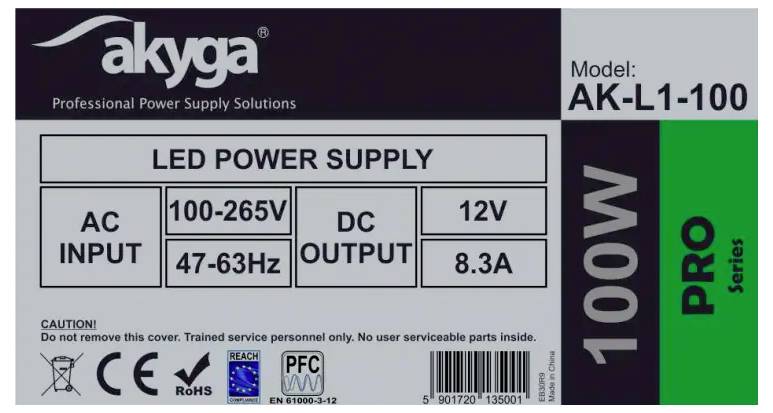

LED POWER SUPPLY AK-L1-100 12V / 100W
- 11 - 15 V DC
- 8.3 A
Technical specifications
- OVP fuse: Yes
- OCP Backup: Yes
- OPP fuse: Yes
- OTP fuse: Yes
- SCP fuse: Yes
- Product type
LED control gear
- Output voltage (max.)
15 V DC
- Output voltage (min.)
11 V DC
- Max. output current
8.3 A
- Output current (max.) - rounded
8.3 A
IP20
- Connection
Screw terminal
- No. of outputs
1 x
- Input voltage (max.)
265 V AC
- Min. input voltage
100 V AC
- Weight
338 g
- Max. temperature
50 °C
- Min. temperature
5 °C
Documents & Downloads
Datasheet
Datasheet 3841227 Akyga AK-L1-100 LED control gear 8.3 A 11 - 15 V DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3841227 Akyga AK-L1-100 LED control gear 8.3 A 11 - 15 V DC 1 pc(s)
Description
The Akyga® AK-L1-100 is a 100W power supply for industrial automation systems, machine control and lighting based on LED technology, which is controlled by a potentiometer for power supply of LED strips, LED lamps, LED panels, RGB LED drivers and other electronic devices with 11 - 15V DC. Current carrying capacity of 8.3A allows a 20m LED strip to supply 4.8 W/m. It is possible to supply two different circuits at the same time.
To properly connect the power supply to the LED strip, multiply the length of the strip in meters by the thickness of the tape, and then select the power supply at a distance of min. 10% to ensure long and trouble free system operation, unless the manufacturer of the LED strip recommends otherwise.
This text is machine translated.
To properly connect the power supply to the LED strip, multiply the length of the strip in meters by the thickness of the tape, and then select the power supply at a distance of min. 10% to ensure long and trouble free system operation, unless the manufacturer of the LED strip recommends otherwise.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
