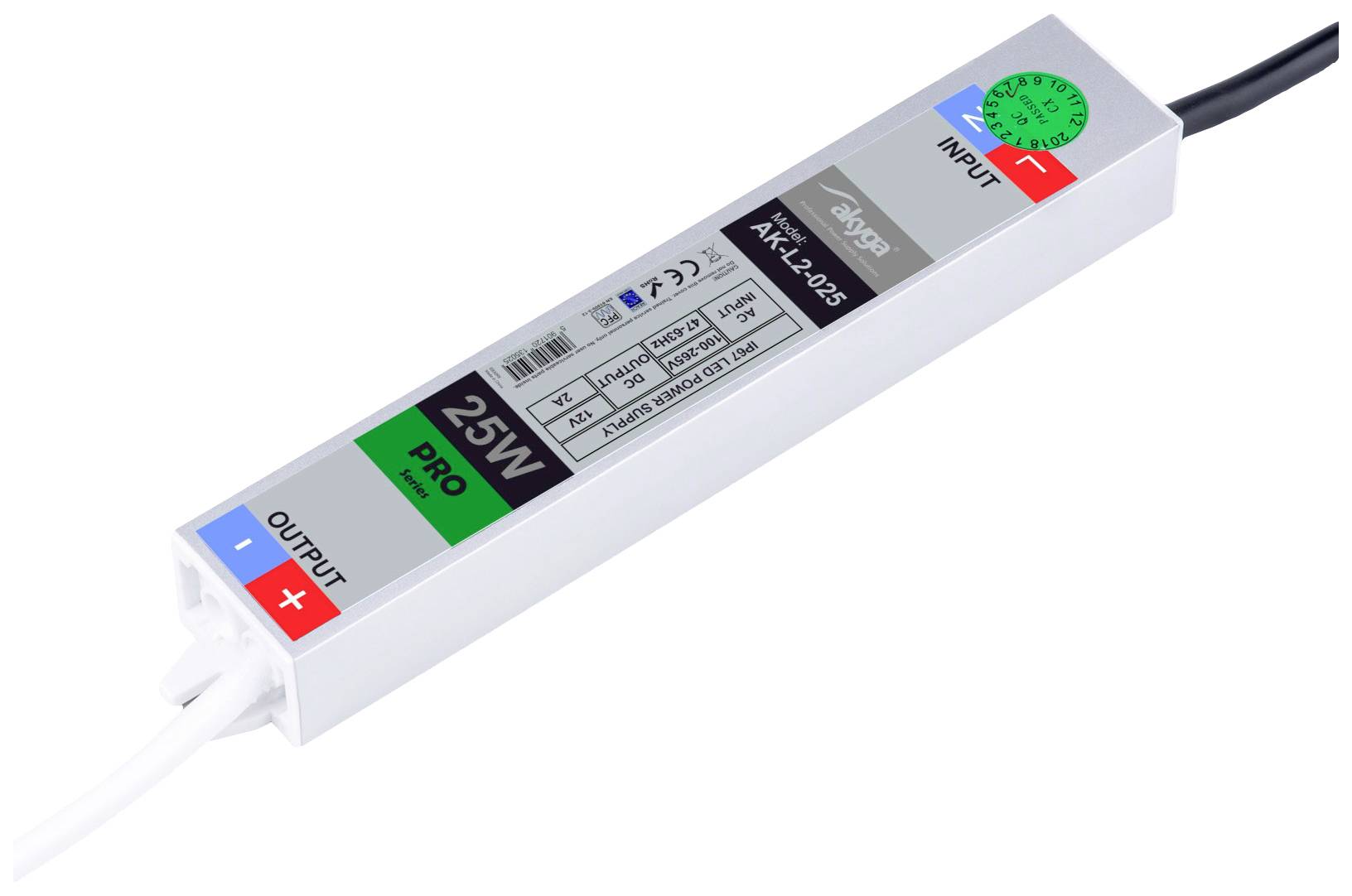

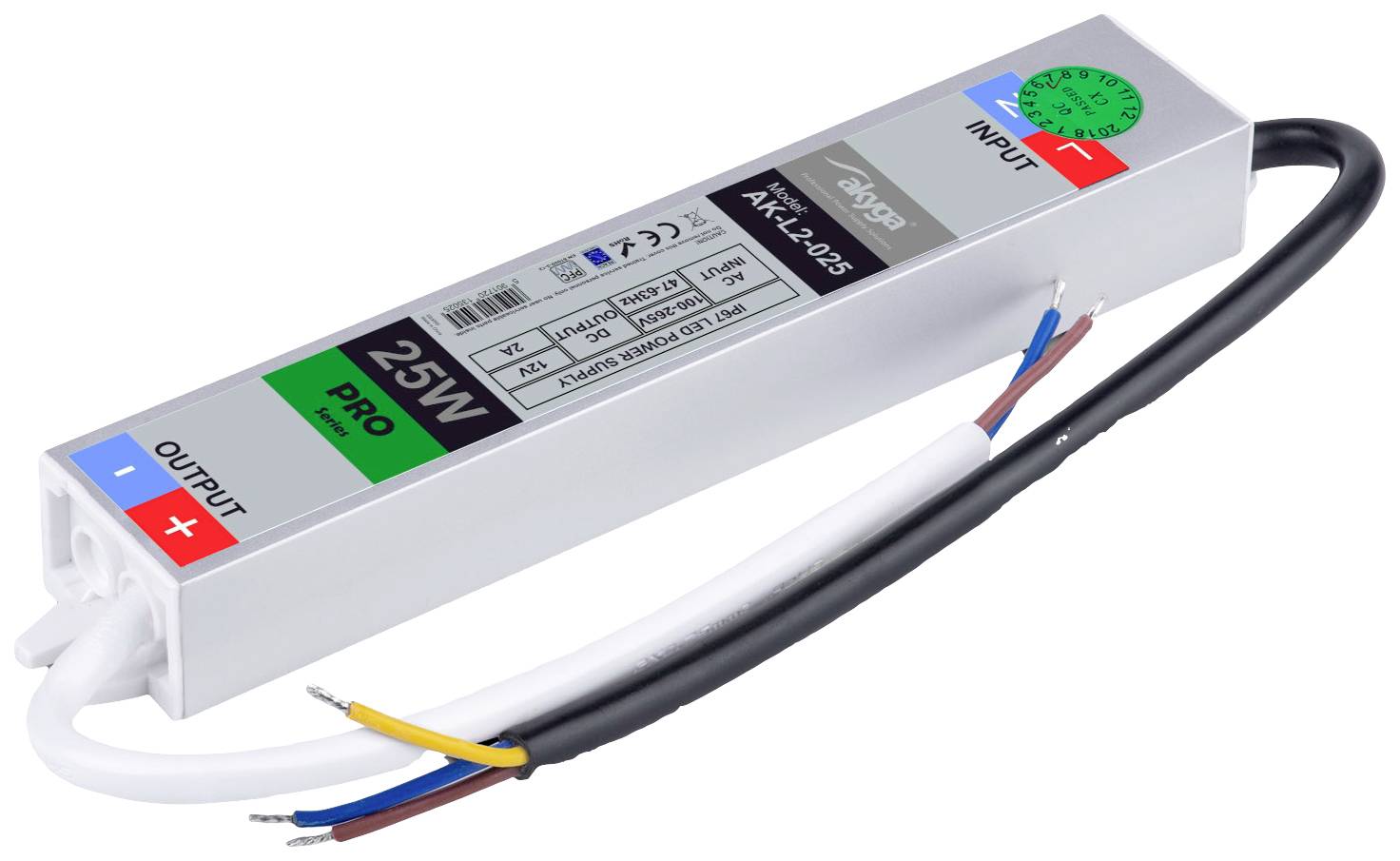

Akyga AK-L2-025 Industrial PSU 12 V DC 2 A 25 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 14.28
3
6% = € 0.79
€ 13.49
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 14.28 / piece)
€ 14.28
plus VAT.
14-day return policy included
HERMETIC LED IP67 POWER SUPPLY AK-L2-025 12V / 25W
Highlights & Details
- Output 12 V DC / 2 A
- Power 25 W
Technical specifications
- OVP fuse: Yes
- OCP Backup: Yes
- OPP fuse: Yes
- OTP fuse: Yes
- SCP fuse: Yes
- Operating temperature 5 °C - 50 °C
- Product dimensions (L x W x H): 182 x 30 x 20 mm
- Supply voltage 100-265 V
- IP rating: IP67
- Cable length 2 x 20 cm
- Product type
Industrial PSU
- Input voltage (max.)
265 V
- Max. output current
2 A
- Output current (max.) - rounded
2 A
- Min. input voltage
100 V
- Dim
(L x W x H) 182 x 30 x 20 mm
- Output voltage (max.)
12 V DC
25 W
IP67
- Type
closed
- Operating temperature (max.)
50 °C
- Operating temperature (min.)
5 °C
- Weight
183 g
- Width
30 mm
- Height
20 mm
- Length
182 mm
- Type
AK-L2-025
Documents & Downloads
Datasheet
Datasheet 2865415 Akyga AK-L2-025 Industrial PSU 12 V DC 2 A 25 W
User & Safety Instructions
User & Safety Instructions 2865415 Akyga AK-L2-025 Industrial PSU 12 V DC 2 A 25 W
Description
The Akyga® AK-L2-025 is a 25W power supply for industrial automation systems, machine control and lighting based on LED technology used to power LED strips, LED lights, LED panels, RGB LED drivers and other 12V DC-powered electronic devices, and it works both indoors and outdoors thanks to the IP67 waterproof housing. The current capacity of 2A allows the transmission of a 5m LED strip (4.8 W/m).
To properly connect the power supply to the LED strip, multiply the length of the strip in meters by the thickness of the tape, and then select the power supply at a distance of min. 10% to ensure long and trouble free system operation.
This text is machine translated.
To properly connect the power supply to the LED strip, multiply the length of the strip in meters by the thickness of the tape, and then select the power supply at a distance of min. 10% to ensure long and trouble free system operation.
