Akyga AK-SC-E22 Charging cable adapter [1x Tesla socket - 1x GB/T (20234.2-2015) plug]
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 88.23 / piece)
€ 88.23
plus VAT.
Only 5 Piece(s) available
Technical specifications
- Packaging: Cardboard box
- Connection 1: Tesla socket (NACS)
- Connection 2: GB/T (20234.2-2015) plug
- Product color: Black
- Supply voltage 110-250 V
- Number of phases: 1 phase
- Max. Current 32 A.
- Connection resistance 0.5 mΩ
- Power: 8 kW
- Flame protection UL94V-0
- IP rating: IP55
- Mounted socket: Silver
- Manufacturing material TPE
- Product type
Charging cable adapter
- Type A
Tesla socket
- Type B
GB/T (20234.2-2015) plug
- No. of phases
1-phase
- Nominal voltage
250 V AC
- Nominal current
32 A
- Nominal current - rounded value
32 A
IP55
- Min. temperature
-30 °C
- Max. temperature
50 °C
- Charging capacity
8 kW
- Charging current
32 A
- Factory colour
Black
- Height
59 mm
- Length
53 mm
- Width
160 mm
- No. of A connectors
1 x
- No. of B connections
1 x
- Weight
289 g
Documents & Downloads
Datasheet
Datasheet 3731355 Akyga AK-SC-E22 Charging cable adapter [1x Tesla socket - 1x GB/T (20234.2-2015) plug]
User & Safety Instructions
User & Safety Instructions 3731355 Akyga AK-SC-E22 Charging cable adapter [1x Tesla socket - 1x GB/T (20234.2-2015) plug]
Description

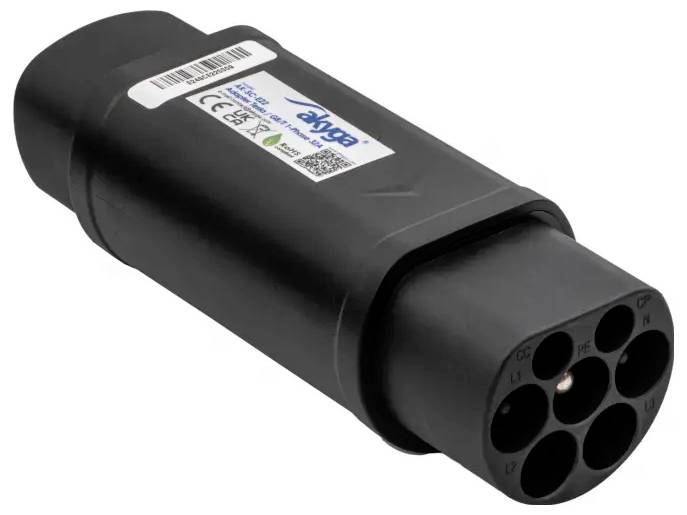

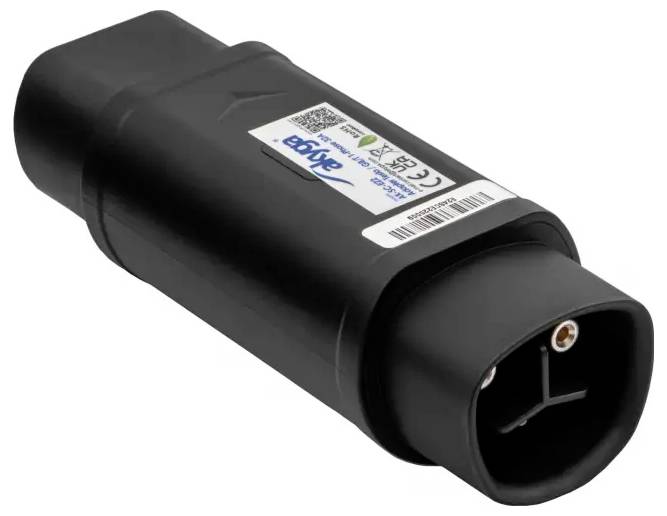

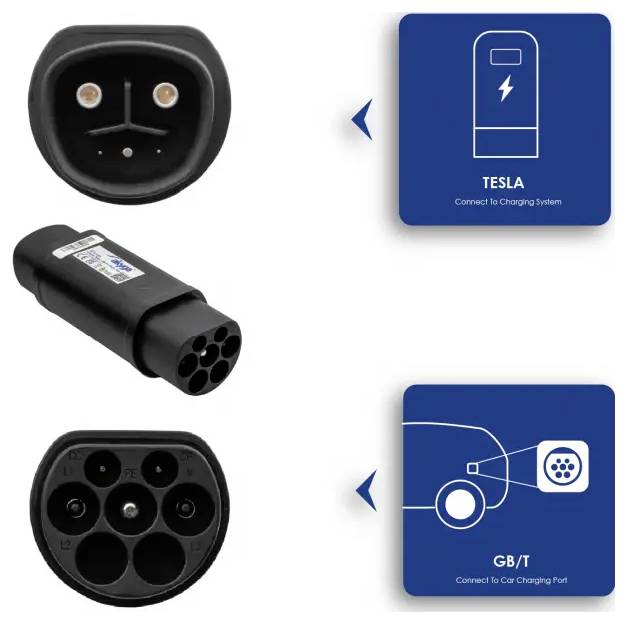

The Akyga® AK-SC-E22 adapter is a functional solution for drivers who want to charge Chinese electric cars with a GB/T socket via Tesla chargers with NACS plug. It enables the convenient and secure use of the increasingly popular Tesla infrastructure in Europe and North America. It is the perfect choice for owners of cars imported from China who expect versatility and reliability when loading their vehicles.
Versatility and compatibility with Chinese vehicles
The Tesla/GBT adapter was developed for users of electric cars by brands like BYD, NIO, XPg, Zeekr and Geely, which are equipped with the Chinese charging standard. It enables the charging of vehicles with GB/T sockets with Tesla chargers that are equipped with a North American charging standard (NACS) plug. This convenient adapter makes traveling and daily charging easier, regardless of the differences between the global plug systems.
Efficient charging of up to 32 A.
The model AK-SC-E22 supports single-phase charging with a current strength of up to 32 A, WAS guarantees a stable and safe flow of energy. Designed for maximum efficiency and minimal loss of power, the adapter allows you to effectively use the capabilities of the Tesla wall connector or other NACS chargers. This makes charging not only quick, but is also completely safe for your vehicle.
Long life and safety of the construction
The Akyga® AK-SC-E22 Tesla (NACS)/GB/T adapter is made of high-quality, heat and shock-resistant materials that ensure an exceptional durability. Silver-plated contacts provide excellent conductivity and secure connection, eliminating the risk of overheating or accidental disconnection of the connection. The adapter conforms to European safety standards and guarantees a reliable performance under all operating conditions.
This text is machine translated.
Versatility and compatibility with Chinese vehicles
The Tesla/GBT adapter was developed for users of electric cars by brands like BYD, NIO, XPg, Zeekr and Geely, which are equipped with the Chinese charging standard. It enables the charging of vehicles with GB/T sockets with Tesla chargers that are equipped with a North American charging standard (NACS) plug. This convenient adapter makes traveling and daily charging easier, regardless of the differences between the global plug systems.
Efficient charging of up to 32 A.
The model AK-SC-E22 supports single-phase charging with a current strength of up to 32 A, WAS guarantees a stable and safe flow of energy. Designed for maximum efficiency and minimal loss of power, the adapter allows you to effectively use the capabilities of the Tesla wall connector or other NACS chargers. This makes charging not only quick, but is also completely safe for your vehicle.
Long life and safety of the construction
The Akyga® AK-SC-E22 Tesla (NACS)/GB/T adapter is made of high-quality, heat and shock-resistant materials that ensure an exceptional durability. Silver-plated contacts provide excellent conductivity and secure connection, eliminating the risk of overheating or accidental disconnection of the connection. The adapter conforms to European safety standards and guarantees a reliable performance under all operating conditions.
This text is machine translated.
