Akyga AK-TB-11 Mains PSU (fixed voltage) 9 V 1 A 9 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 9.24
3
6% = € 0.53
€ 8.71
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 9.24 / piece)
€ 9.24
plus VAT.
14-day return policy included
Power supply unit
Technical specifications
- Product code: AK-TB-11
- Efficiency > 80%
- Earthing: Without (II protection class)
- Ferrite filter: No.
- ABS casing material
- MTBF: 100000 h
- Power consumption < 0.4 A

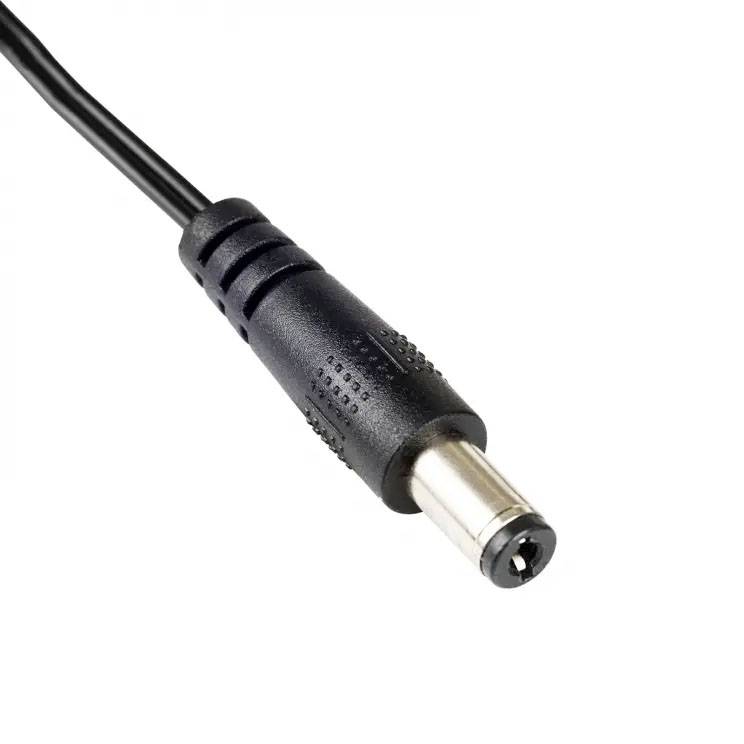

- Supply line 5.5 x 2.1 mm
- Working temperature 5 - 50 °C.
- Product type
Mains PSU (fixed voltage)
- Used at
Mains socket
- Max. output current
1 A
- Output voltage
9 V
- Output current (max.) - rounded
1 A
- Output
5.5/2.1 coaxial connector
9 W
- Dim
(L x W x H) 63 x 35 x 59 mm
- Input voltage (max.)
240 V
- Min. input voltage
110 V
- Weight
71 g
- Cable length
1.50 m
- Width
35 mm
- Height
59 mm
- Length
63 mm
- Type
AK-TB-11
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2355178 Akyga AK-TB-11 Mains PSU (fixed voltage) 9 V 1 A 9 W
User & Safety Instructions
User & Safety Instructions 2355178 Akyga AK-TB-11 Mains PSU (fixed voltage) 9 V 1 A 9 W
Warranty Terms
Warranty Terms 2355178 Akyga AK-TB-11 Mains PSU (fixed voltage) 9 V 1 A 9 W
Description

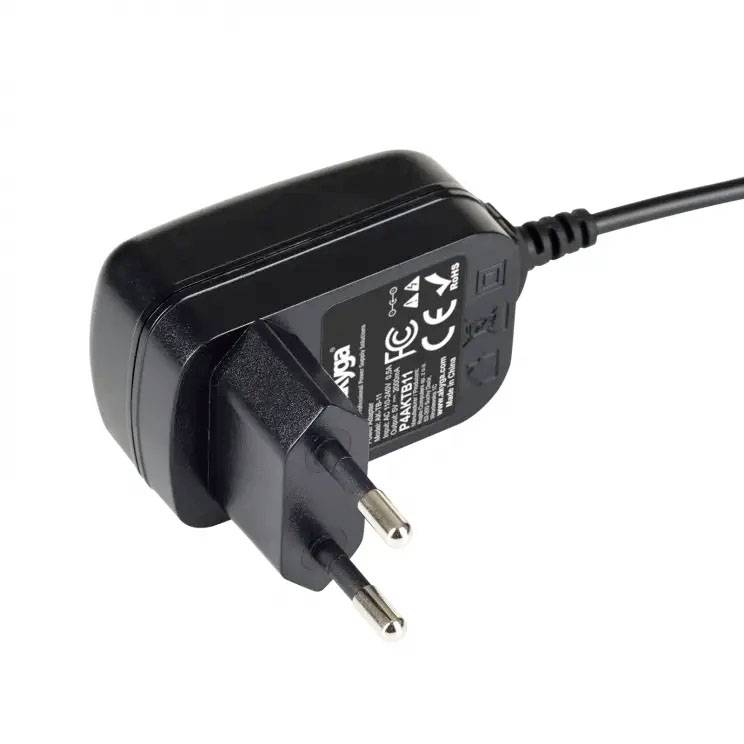

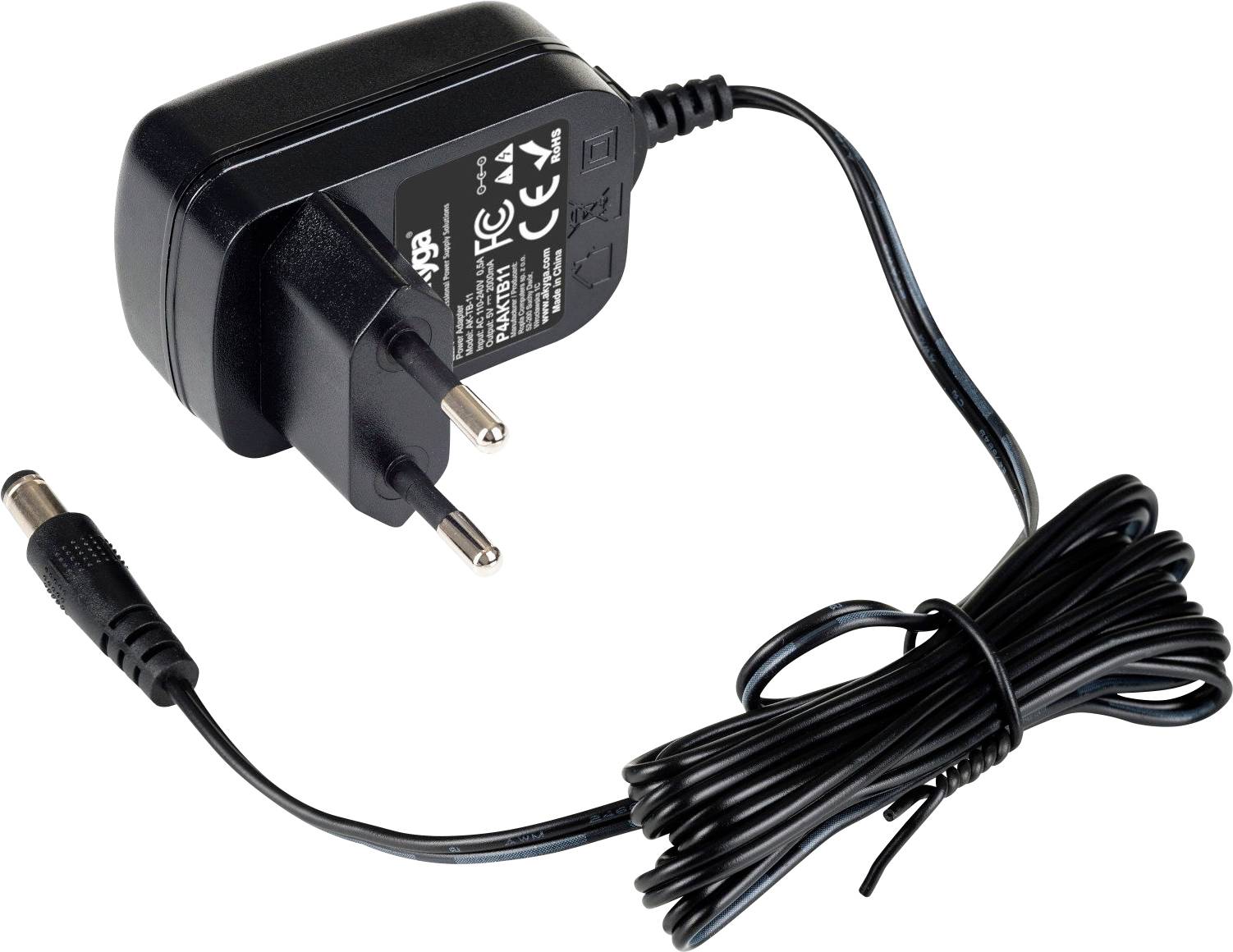

The Akyga® AK-TB-11 is a reliable power supply. Its versatility is due to the popular 5.5 x 2.1 mm plug connector and the supply parameters 9 V/1 A. They are found in many devices of daily use. This includes network devices such as modems, switches, TCP/IP gateways, or GSM. In addition, the adapter has a 1.5 m long cable, which provides freedom during installation. In addition, the power supply is equipped with a number of safety functions that ensure safe and stable operation. This applies to both supplied devices and the power supply itself
