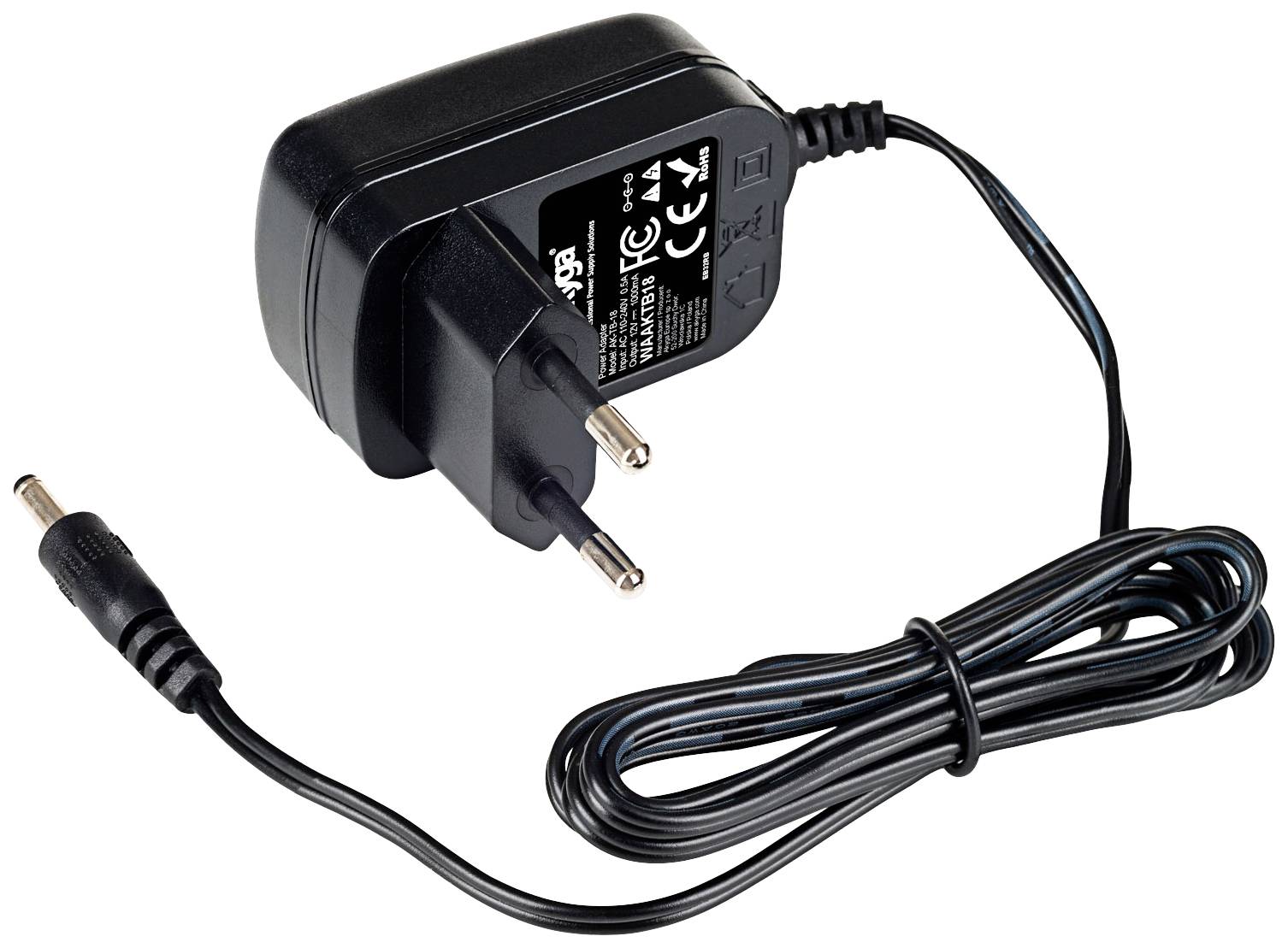

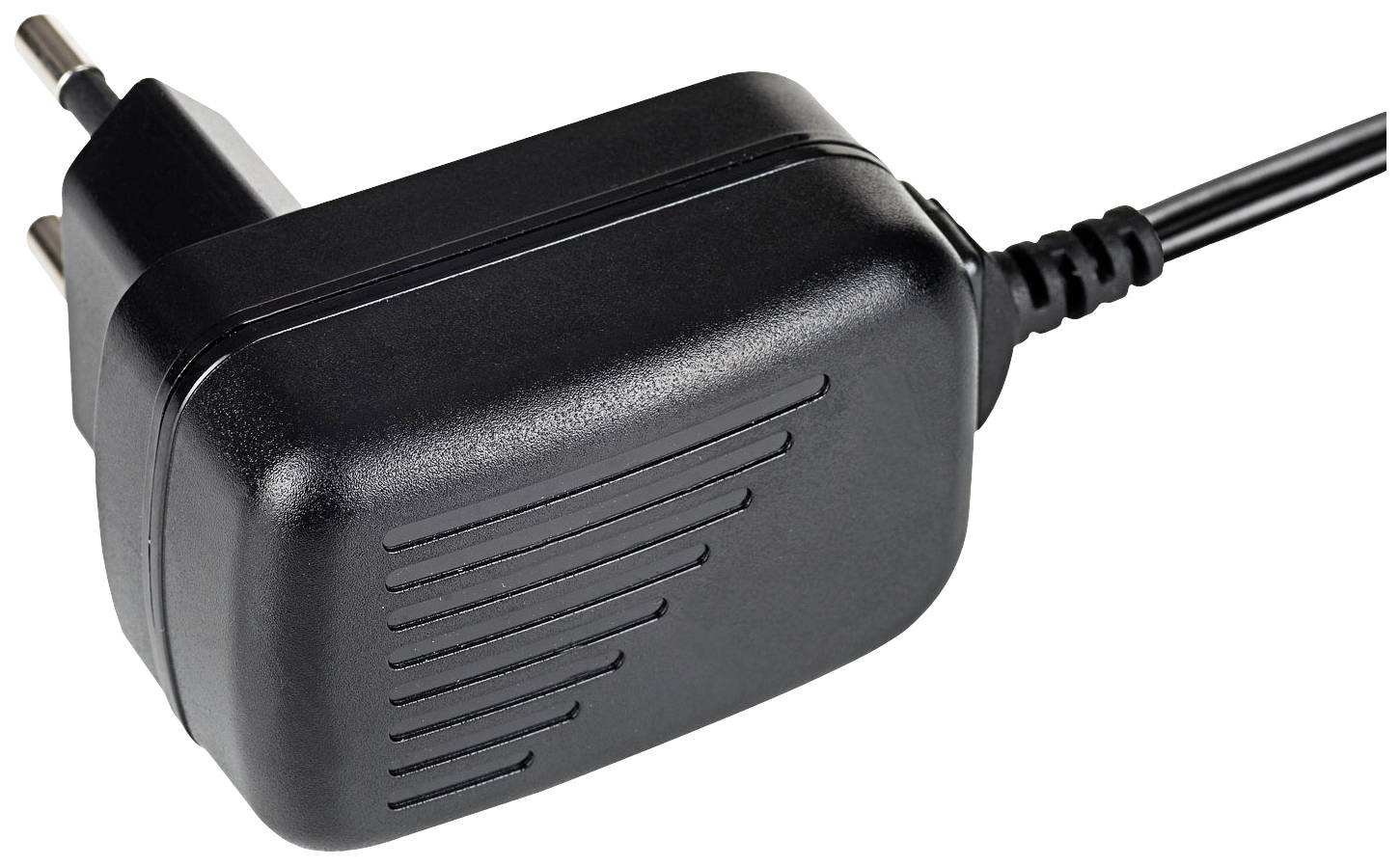

Akyga AK-TB-18 Mains PSU (fixed voltage) 5 V 1 A 5 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 11.76
3
6% = € 0.65
€ 11.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 11.76 / piece)
€ 11.76
plus VAT.
14-day return policy included

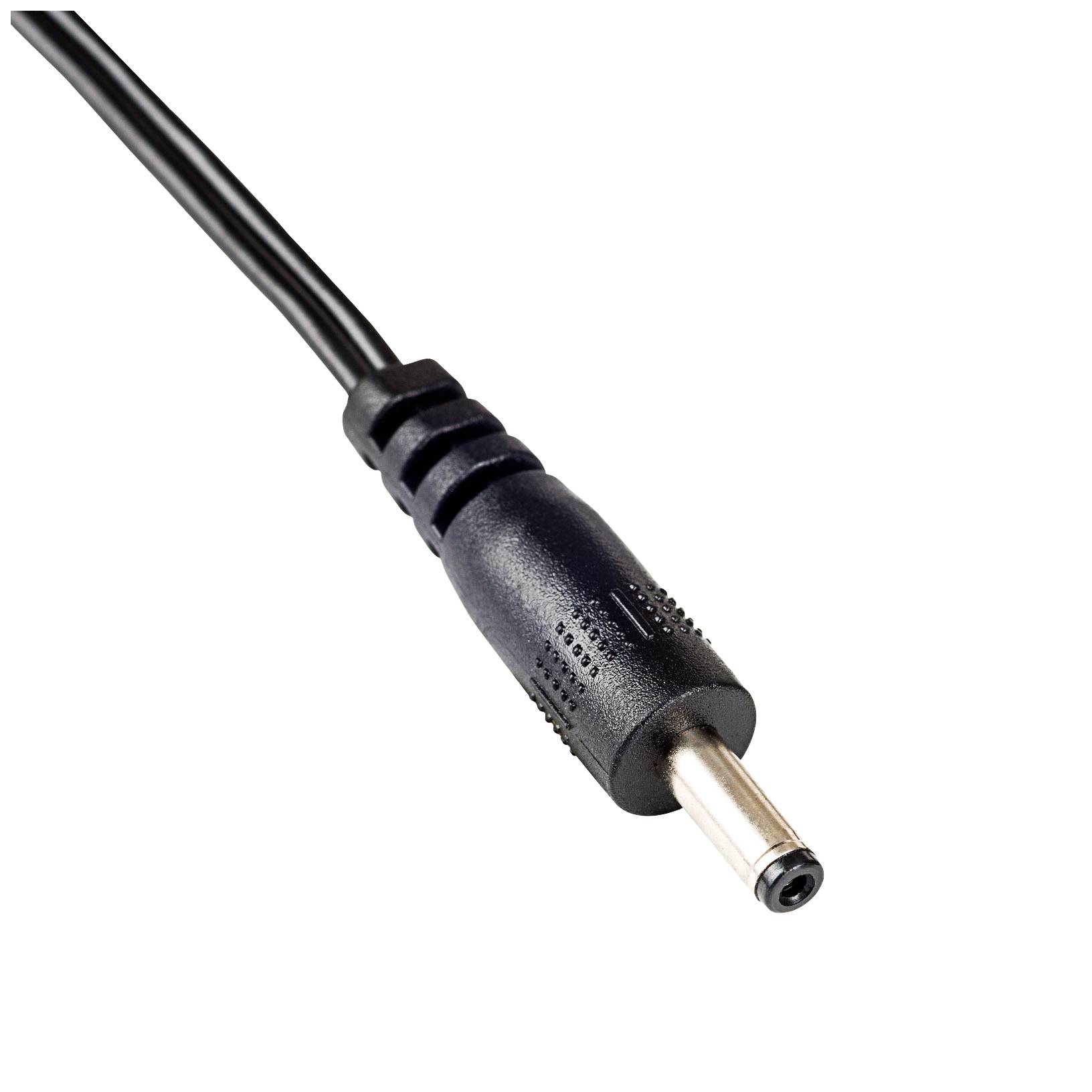

Power supply AK-TB-18 5V / 1A 5W 3.5 x 1.35 mm
Technical specifications
- OVP fuse: Yes
- OCP Backup: Yes
- OPP fuse: Yes
- OTP fuse: Yes
- SCP fuse: Yes
- Product color: Black
- Operating temperature 5 °C - 50 °C
- Product dimensions (L x W x H) 80 x 60 x 40 mm
- Supply voltage 110-240 V
- Cable length 1.4 m.
- Manufacturing material: ABS
- Power input < 0.4 A.
- Power output 5 V
- Output current 1 A
- Earthing: Without (II protection class)
- Power supply 3.5 x 1.35 mm
- Pin length 10 mm
- MTBF: 100000 h
- Product type
Mains PSU (fixed voltage)
- Max. output current
1 A
- Output voltage
5 V
- Output current (max.) - rounded
1 A
- Output
3.5/1.35 coaxial connector
5 W
- Dim
(L x W x H) 80 x 60 x 40 mm
- Input voltage (max.)
240 V AC
- Min. input voltage
110 V AC
- Weight
68 g
- Cable length
1.4 m
- Width
60 mm
- Height
40 mm
- Length
80 mm
- Type
AK-TB-18
- Factory colour
Black
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2865424 Akyga AK-TB-18 Mains PSU (fixed voltage) 5 V 1 A 5 W
User & Safety Instructions
User & Safety Instructions 2865424 Akyga AK-TB-18 Mains PSU (fixed voltage) 5 V 1 A 5 W
Description
The Akyga® AK-TB-18 is a power supply designed for a stable and reliable power supply for electronic devices with low power consumption. With a 3.5 x 1.35 mm connection the power supply can be connected to devices such as CCTV cameras, routers or alarm systems.
The AK-TB-18 AC-power supply delivers 5 V / 1 A and is thus an ideal power source for devices, which need a constant voltage. Furthermore, the power supply can be used as a tablet charger which makes WAS it a versatile device.
The AC/DC plug-in power supply AK-TB-18 is characterized by a light and robust design and a long 1.4 meter cable, as a result of which it can be transported easily from place to place and used under different conditions.
This text is machine translated.
The AK-TB-18 AC-power supply delivers 5 V / 1 A and is thus an ideal power source for devices, which need a constant voltage. Furthermore, the power supply can be used as a tablet charger which makes WAS it a versatile device.
The AC/DC plug-in power supply AK-TB-18 is characterized by a light and robust design and a long 1.4 meter cable, as a result of which it can be transported easily from place to place and used under different conditions.
This text is machine translated.
