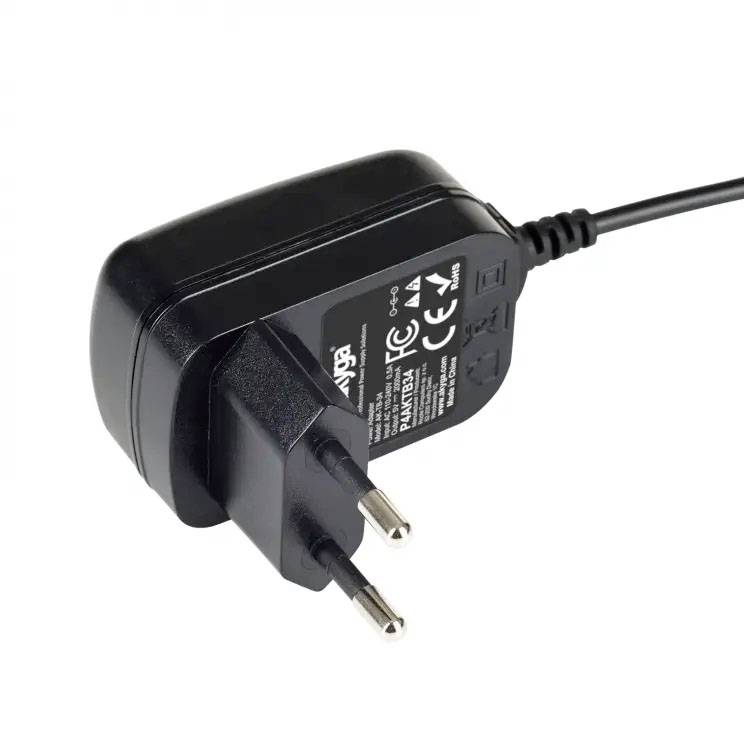

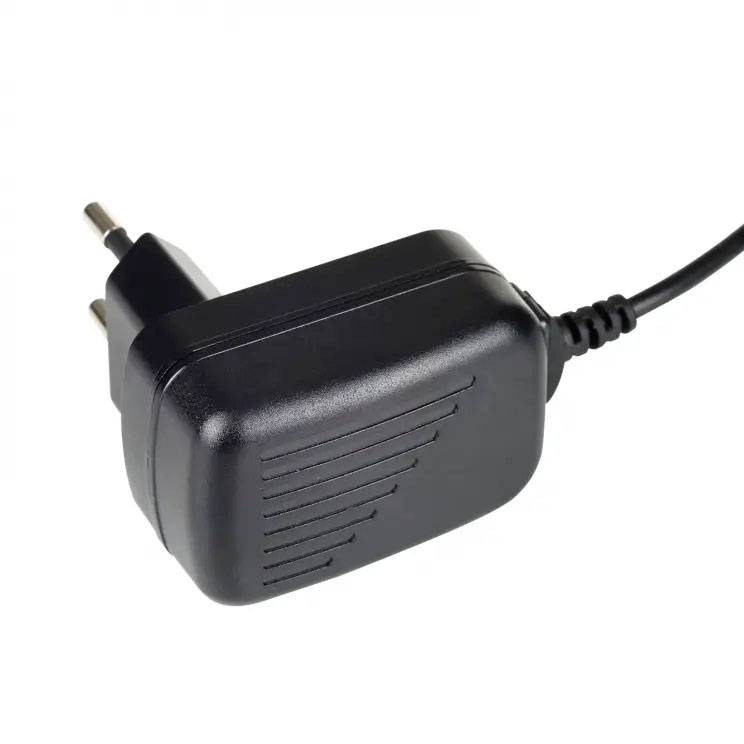

Akyga AK-TB-34 Mains PSU (fixed voltage) 5 V 2 A Surge protection
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 12.60
3
6% = € 0.70
€ 11.90
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 12.60 / piece)
€ 12.60
plus VAT.
Power supply unit
Technical specifications
- Product code: AK-TB-34
- Efficiency > 80%
- Earthing: Without (II protection class)
- Ferrite filter: No.
- ABS casing material
- MTBF: 100000 h
- Power consumption < 0.4 A

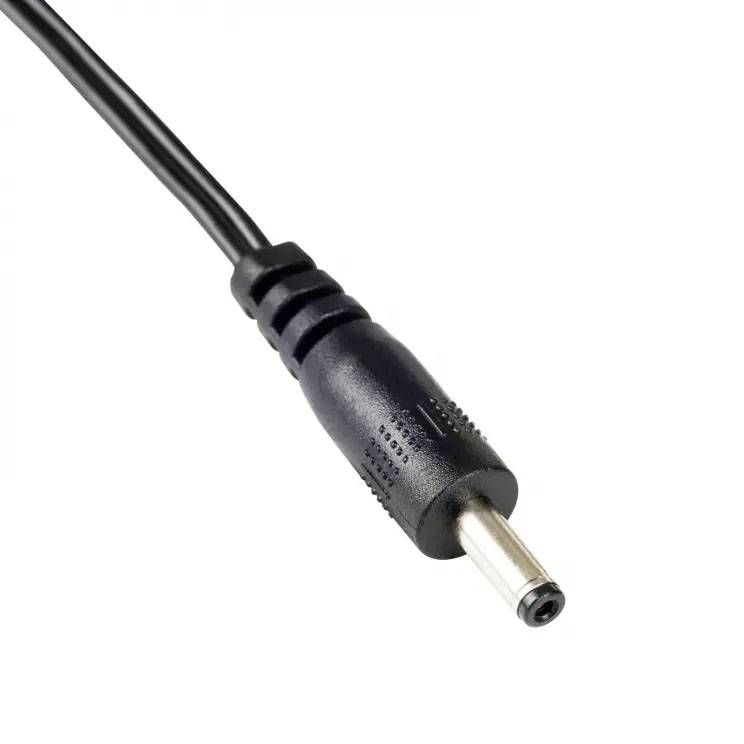

- Supply line 3.5 x 1.35 mm
- Working temperature 5 - 50 °C.
- Product type
Mains PSU (fixed voltage)
- Used at
Mains socket
- Max. output current
2 A
- Output voltage
5 V
- Output current (max.) - rounded
2 A
- Output
3.5/1.35 coaxial connector
- PSU features
Surge protection
- Dim
(L x W x H) 63 x 35 x 59 mm
- Connection
Plug
- Input voltage (max.)
240 V
- Min. input voltage
110 V
- Weight
75 g
- Cable length
1.50 m
- Width
35 mm
- Height
59 mm
- Length
63 mm
- Type
AK-TB-34
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2355185 Akyga AK-TB-34 Mains PSU (fixed voltage) 5 V 2 A Surge protection
User & Safety Instructions
User & Safety Instructions 2355185 Akyga AK-TB-34 Mains PSU (fixed voltage) 5 V 2 A Surge protection
Warranty Terms
Warranty Terms 2355185 Akyga AK-TB-34 Mains PSU (fixed voltage) 5 V 2 A Surge protection
Description
The Akyga® power supply AK-TB-34 is a universal power source. Its versatility is ensured by the common supply parameters 5 V/2 A and a 3.5 x 1.35 mm plug. It can be found in many everyday objects. Both in mobile devices, such as Tablets, as well as network devices such as a router, switch, modem or active USB hub. The product can also be used to supply LED tapes and mini-computers. In addition, the adapter is characterized not only by its great versatility, but also by its low weight and the long 1.5 m cable. This not only increases the convenience of using the device during charging, but also offers a wide range of options for mounting the power supply. In addition, the power supply is equipped with a safety package (OVP, OCP, OPP, OTP, SCP). This guarantees safe and stable operation. It affects both the supplied devices and the power supply itself
