Buy Akyga Laptop PSU 90 W 20 V DC 4.5 A

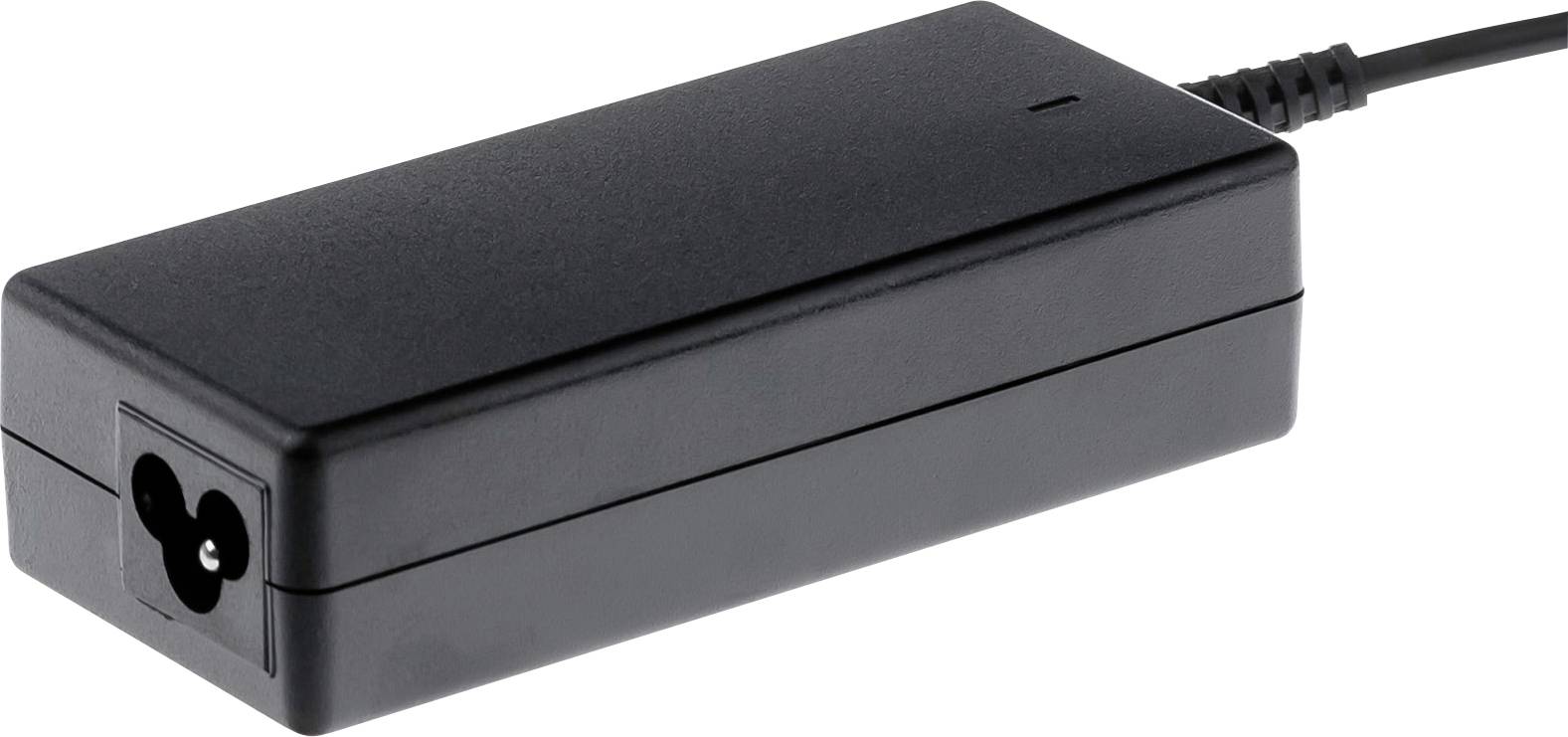

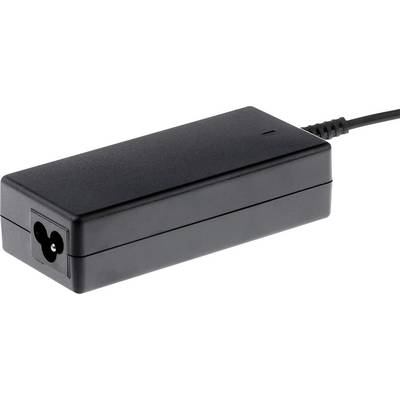

A black laptop power adapter with an integrated cable and a three-pin plug lies on a white surface.

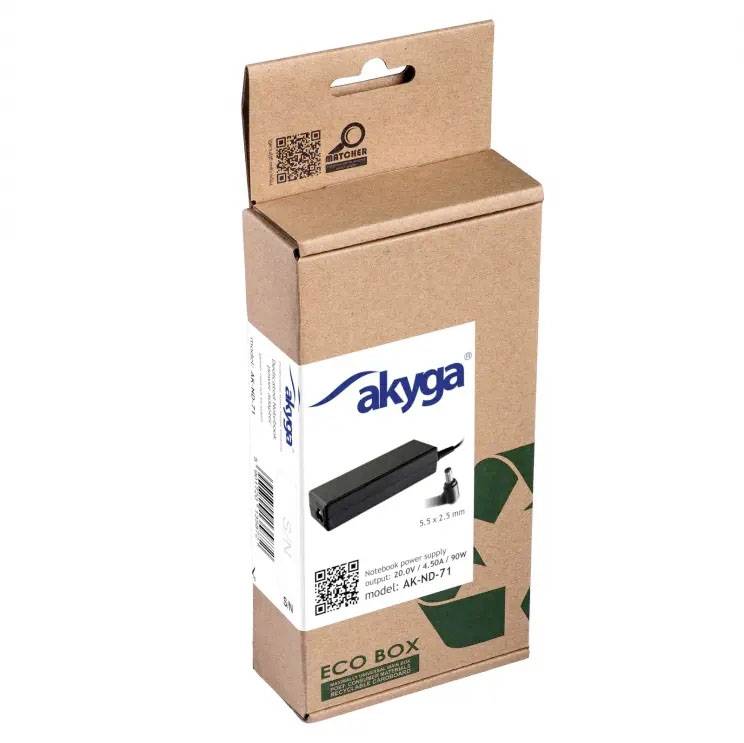

A brown cardboard box with an Akyga power supply sticker. Description: 'Akyga 45W', Model: 'AK-ND-71'. Packaging is an Eco Box.

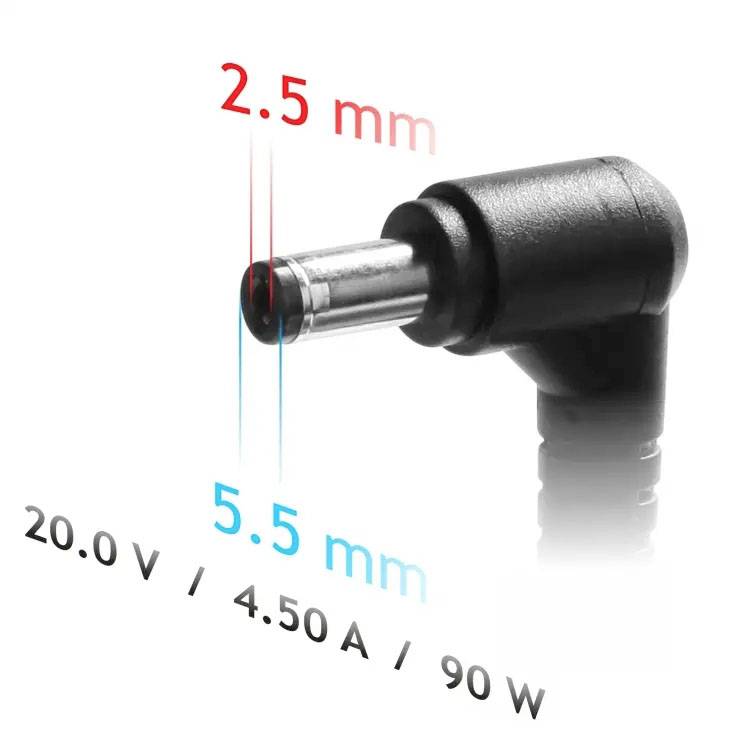

A DC plug is shown with dimensions of 2.5 mm internal diameter and 5.5 mm external diameter. Voltage specifications: 20.0 V, 4.50 A, 90 W.

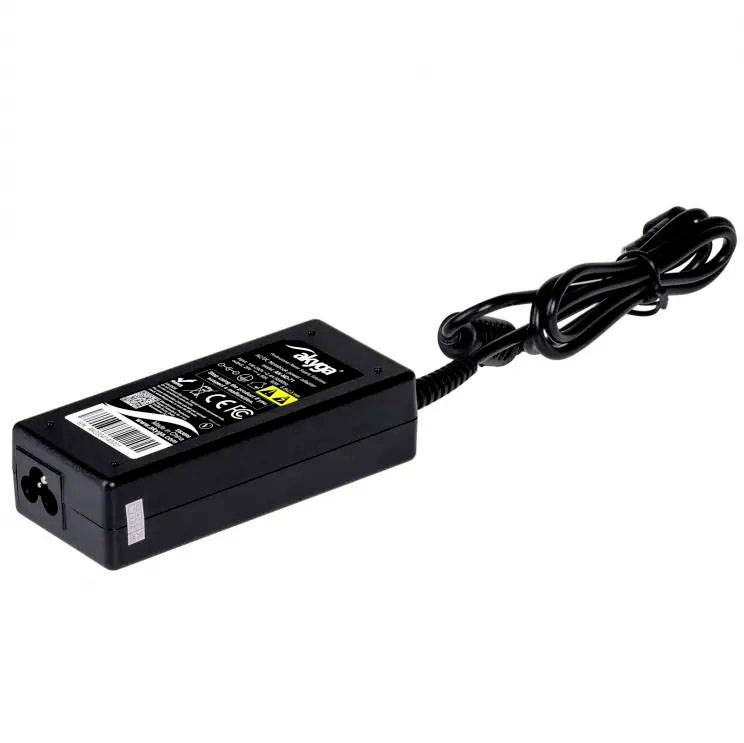

A black laptop power adapter with cable, displaying technical specifications and safety certifications on the label.

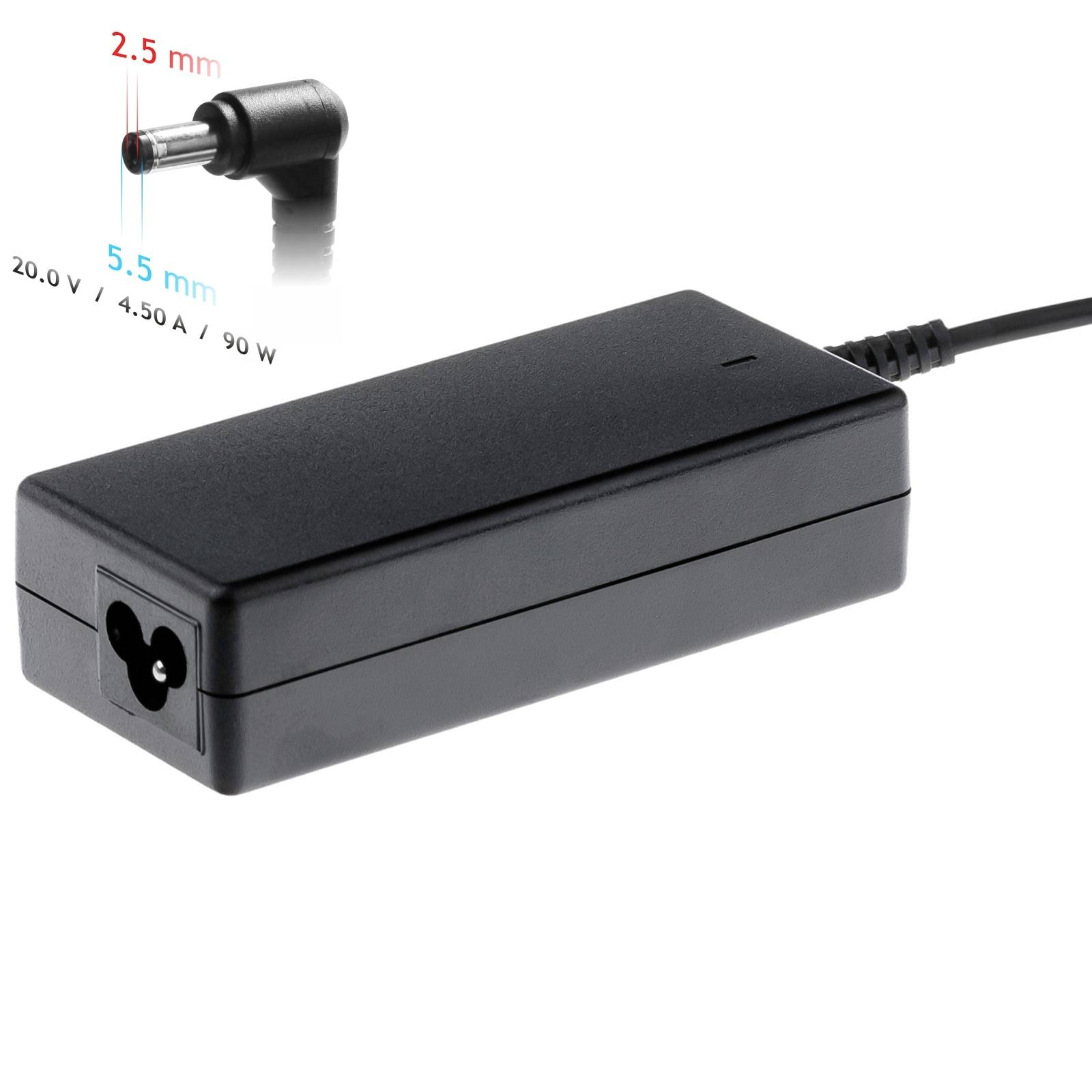

Black laptop power adapter with an angled plug. In the corner: plug details with dimensions of 5.5 mm outer and 2.5 mm inner diameter.

1/5

Datasheet (PDF)

Fast track dispatch on Fri, 2 Oct

2 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 11.76 / piece)

€ 11.76

plus VAT.

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

AC power supply for Netbook AK-ND-71

Highlights & Details

/ 4.5 A
90 W Power
Used at: Indoors, Mains socket
Input voltage range 100 -250 V AC
Suited for notebooks from

Technical specifications

Product code: AK-ND-71
Efficiency > 80%
Grounding: Yes
Ferrite filter: Yes
Supply cable in the set: No.
ABS casing material
Illumination color: Green diode
MTBF: 100000 h
Power consumption < 2.4 A.
Working temperature 5 - 50 °C.

Product type: Laptop PSU

Type: AK-ND-71

: 90 W

Input voltage: 100 -250 V AC

Output voltage: 20 V DC

Output current (max.) - rounded: 4.5 A

Max. output current: 4.5 A

Dim: (L x W x H) 131.5 x 53 x 31 mm

Length: 131.5 mm

Width: 53 mm

Height: 31 mm

Weight: 254 g

Factory colour: Black

Used at: Indoors
Mains socket

Cable length: 1:20 m

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2355167 Akyga Laptop PSU 90 W 20 V DC 4.5 A

User & Safety Instructions

User & Safety Instructions 2355167 Akyga Laptop PSU 90 W 20 V DC 4.5 A

Warranty Terms

Warranty Terms 2355167 Akyga Laptop PSU 90 W 20 V DC 4.5 A

Description

Akyga® AK-ND-71 is a 90W power supply that is compatible with Lenovo laptops. The product is equipped with a 1.2 m long cable, which is terminated with a standard mains plug (5.5 x 2.5 mm). The output parameters of the device are 20 V / 4.5 A. It is characterized by a high efficiency of over 80% and a stable operation, which is ensured by a number of protection functions such as OVP, OCP, OPP, OTP and SCP. A further advantage of the product is the equipment with a soft start technology, which protects the device against excessive power consumption at the time of start-up. Like all other Akyga® power supplies, the product is packed in an environmentally friendly Ecobox packaging. We recommend you use our search engine for laptop power supplies.

This text is machine translated.
