Buy Akyga LP103040 Battery pack x Non-standard rechargeable LiPo 3.7 V 1200 mAh

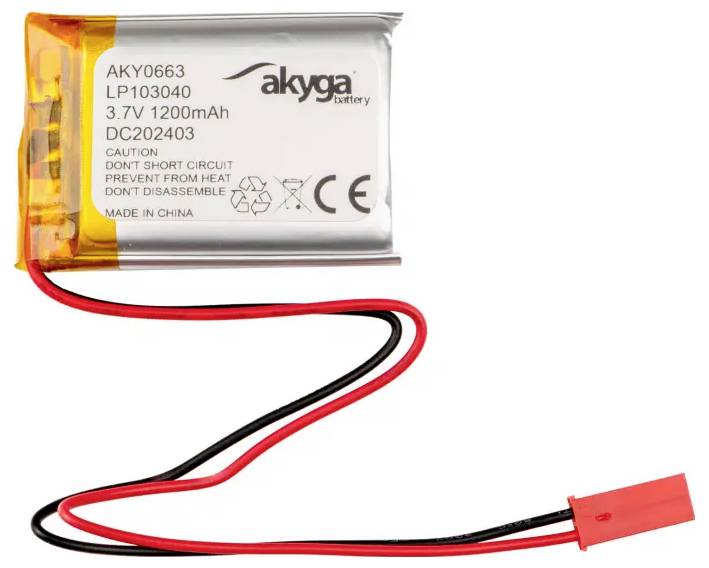

Lithium-Polymer battery by Akyga with 3.7V and 1200mAh. Warnings: Avoid short-circuiting, protect from heat, do not disassemble. Made in China.

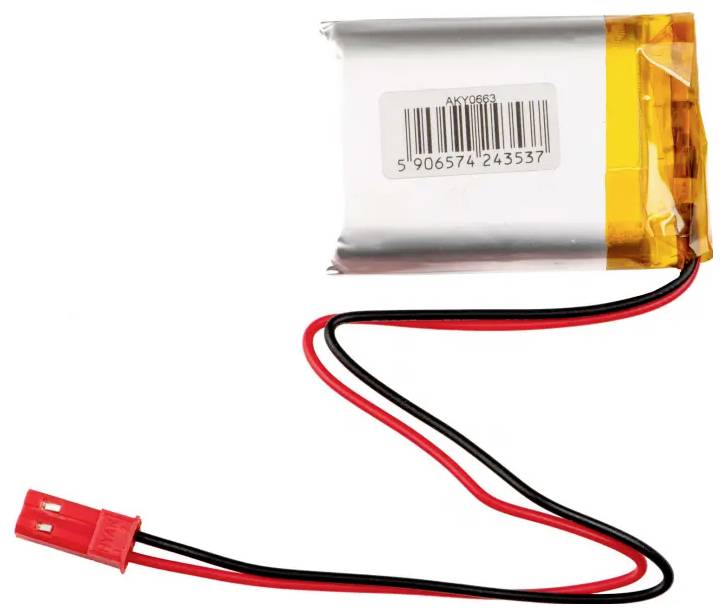

Small lithium-ion battery with red and black cables and a red connector. The battery is partially wrapped in yellow material.

Lithium-Polymer battery with red and black wires, silver label with specifications on the top surface, on a white background.

1/3

Datasheet (PDF)

Fast track dispatch on Wed, 23 Sep

25 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 11.76 / piece)

€ 11.76

plus VAT.

14-day return policy included

Report legal concerns

Li-Po battery LP103040 Akyga AKY0663 3.7V / 1200mAh PCM JST 2-pin plug 150mm

Technical specifications

Manufacturer name: LP103040
Product type: Lithium polymer battery
Voltage: 3.7 V
Capacity 1200 mAh
PCM fuse
Lead: Wires, connector + socket
Connector type 2.54 JST, 2 pin
Connector part number: JST SYP-02T-1
Cable length: 150 mm.
Length: 40 mm
Width 30 mm
Height: 1 mm
Net weight: 24 g

Product type: Battery pack

Size: Non-standard rechargeable

Voltage: 3.7 V

Capacity (mAh, Ah): 1200 mAh

Technology: LiPo

Length: 40 mm

Width: 30 mm

Height: 1 mm

Weight: 24 g

Content: 1 pc(s)

Manufacturer part #: AKY0663

Type: LP103040

Rechargeable: Yes

Dim: (L x W x H) 40 x 30 x 1 mm

Connector: JST connector

Documents & Downloads

Datasheet

Datasheet 3385851 Akyga LP103040 Battery pack x Non-standard rechargeable LiPo 3.7 V 1200 mAh

User & Safety Instructions

User & Safety Instructions 3385851 Akyga LP103040 Battery pack x Non-standard rechargeable LiPo 3.7 V 1200 mAh

Description

Akyga LP103040 Lithium Polymer Battery provides a proven and safe solution. The AKY0663 battery has a high-quality protection system that protects the battery from overloading, excessive discharge and short-circuit. It has a capacity of 1200 mAh and a nominal voltage of 3.7 V. To facilitate the installation of the battery, two cables with a length of 150 mm are drained, which are terminated with a 2.54 JST 2-pin connector.

Before using lithium-polymer batteries, familiarize yourself with the operating rules. Improper use can damage them.

This text is machine translated.
