Akyga LP401230 Battery pack x Non-standard rechargeable LiPo 3.7 V 110 mAh
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 7.55
3
5% = € 0.41
€ 7.14
5
8% = € 0.58
€ 6.97
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 7.55 / piece)
€
Technical specifications
- Manufacturer name: LP401230
- Product type: Lithium polymer battery
- Voltage: 3.7 V
- Capacity 110 mAh
- PCM fuse
- Lead: Wires, connector + socket
- Connector type 2.54 JST, 2 pin
- Connector part number: JST SYP-02T-1
- Cable length: 150 mm.
- Length: 30 mm
- Width: 12 mm
- Height: 4 mm
- Net weight: 4 g
- Size
Non-standard rechargeable
- Voltage
3.7 V
- Capacity (mAh, Ah)
110 mAh
- Technology
LiPo
- Length
30 mm
- Width
12 mm
- Height
4 mm
- Weight
4 g
- Content
1 pc(s)
- Manufacturer part #
AKY0474
- Type
LP401230
- Rechargeable
Yes
- Dim
(L x W x H) 30 x 12 x 4 mm
- Connector
JST connector
- Product type
Battery pack
Documents & Downloads
Datasheet
Datasheet 3385826 Akyga LP401230 Battery pack x Non-standard rechargeable LiPo 3.7 V 110 mAh
User & Safety Instructions
User & Safety Instructions 3385826 Akyga LP401230 Battery pack x Non-standard rechargeable LiPo 3.7 V 110 mAh
Description

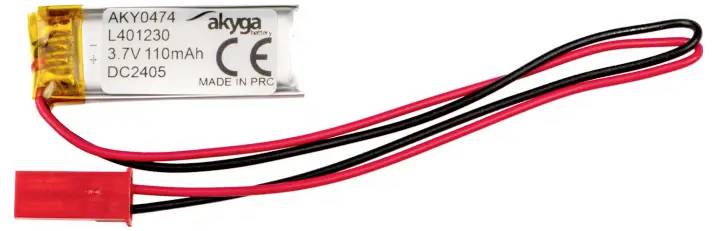

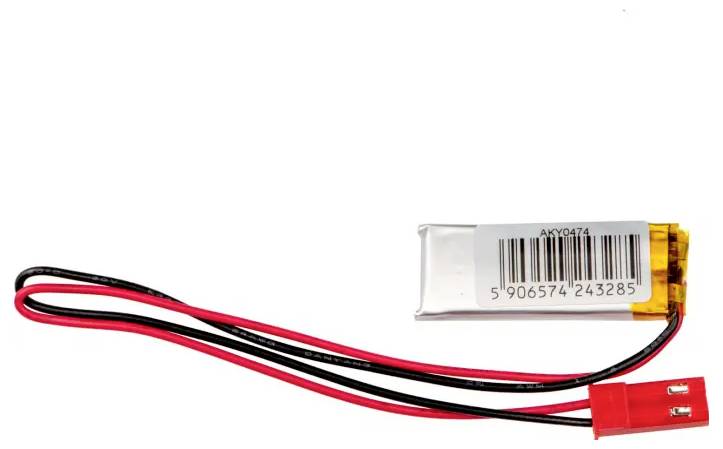

The Akyga® AKY0474 is a LP401230 3.7 V lithium polymer battery with a capacity of 110 mAh. With its extremely compact dimensions and robust design, it is Ideal for small portable devices such as intelligent gadgets, sensors and micro electronics.
Advanced lithium polymer technology
The Akyga® AKY0474 battery is designed with advanced lithium polymer technology to ensure stable and reliable performance. Thanks to its capacity of 110 mAh, it can provide small devices with efficient power, and the lack of a memory effect enables the full use of energy with every charging cycle. Through its slim design with a thickness of just 4 mm it is perfectly suitable for applications that require minimum dimensions.
PCM protection for maximum security
The LiPo battery has a PCM (Protection Circuit Module), which protects the cell from overloading, overcharging and short circuit. This reliable protection extends the life of the battery and increases the safety of the devices in which it is used.
Simple integration and quick installation
The Akyga® AKY0474 has 150 mm long cables that are terminated with a 2-pin JST connector. This configuration allows quick installation without soldering and simplifies the integration process with a variety of electronic devices.
versatile applications
Thanks to its small size, the LP401230 battery is used in a variety of devices such as smartwatches, miniature cameras, remote controls or medical devices. It is the ideal solution for projects where space is limited and lightness and performance are crucial.
Environment-friendly and reusable battery
Akyga® AKY0474 is a reusable battery that has been developed with the environment in mind. The absence of electrolytes and carbon-containing materials in design makes the cell environmentally friendly, and the low self-discharge rate allows long-term storage without loss of properties.
This text is machine translated.
