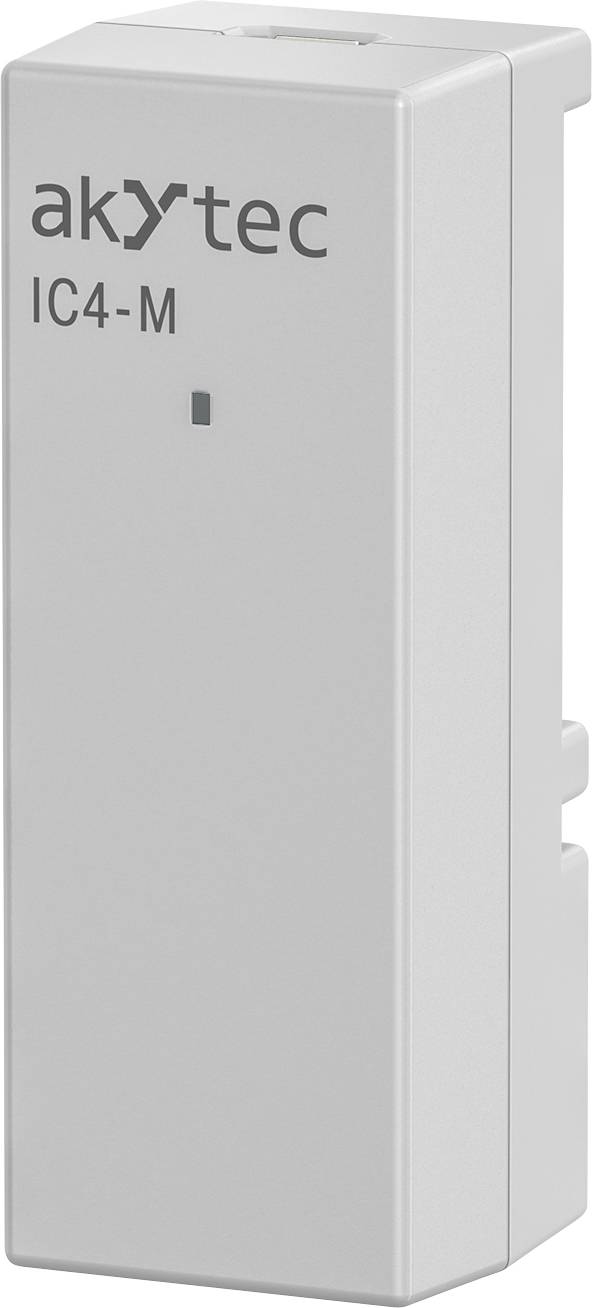

akYtec IC4-M 146869 PLC converter 5 V DC
Part number:
Item no:
Highlights & Details
IC4-M, USB-RS485 CONVERTER

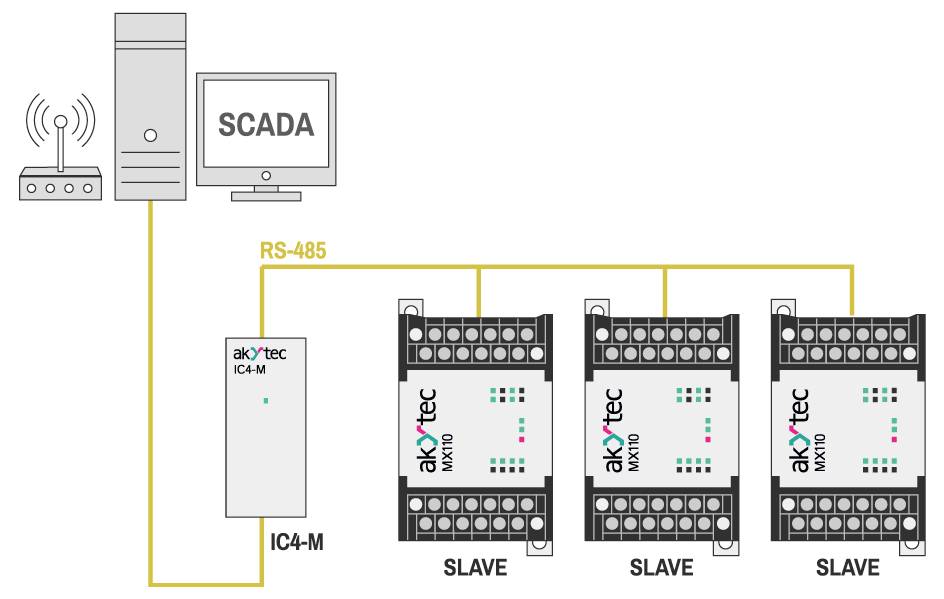

- Bidirectional data exchange (USB ↔ RS485)
- Automatic Data Direction Control (ADDC) - no flow control required
- Galvanic isolation between the interfaces
- Power supply via the USB port of the PC – no separate power supply needed
- LED indicator for operation and data transfer
Technical specifications
- Nominal operating voltage 5 V/DC
- Power supply USB (5 V)
- Protection class: IP20
- Dimensions 27 x 72.5 x 26 mm
- Weight 0.045 kg
- Galvanic isolation 1780 V
- Mounting: Rails (DIN rails)
- Housing material: Plastic
- USB type C connector
- Product type
PLC converter
- Operating voltage
5 V DC
- Height
26 mm
- Length
72.5 mm
- Width
27 mm
IP20
- Type
IC4-M
- Manufacturer part #
146869
- Dim
(L x W x H) 72.5 x 27 x 26 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3553208 akYtec IC4-M 146869 PLC converter 5 V DC
Description
The SIMATIC S7-200 family offers a broad spectrum of modules suitable for the most varied applications. The newly available CPU types and expansion modules enable universal automation concepts with 10 to 248 inputs/outputs. The products of the S7-200 family which are optimally matched to each other also make it easy to change and expand the automation solution in the future.
Area of application e.g.:small and special machines: Packaging, encompassing and wrapping machines .Food industry: kneading, cutting machines, Mixing .Laboratory: Lab mixer, steam ovens, vacuum pumps, suction mechanisms.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU through a connector.
Area of application e.g.:small and special machines: Packaging, encompassing and wrapping machines .Food industry: kneading, cutting machines, Mixing .Laboratory: Lab mixer, steam ovens, vacuum pumps, suction mechanisms.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU through a connector.
Scope of delivery
- IC4–M
- User manual
- USB cable type A – type C
- Plug-in screw terminal for RS-485
