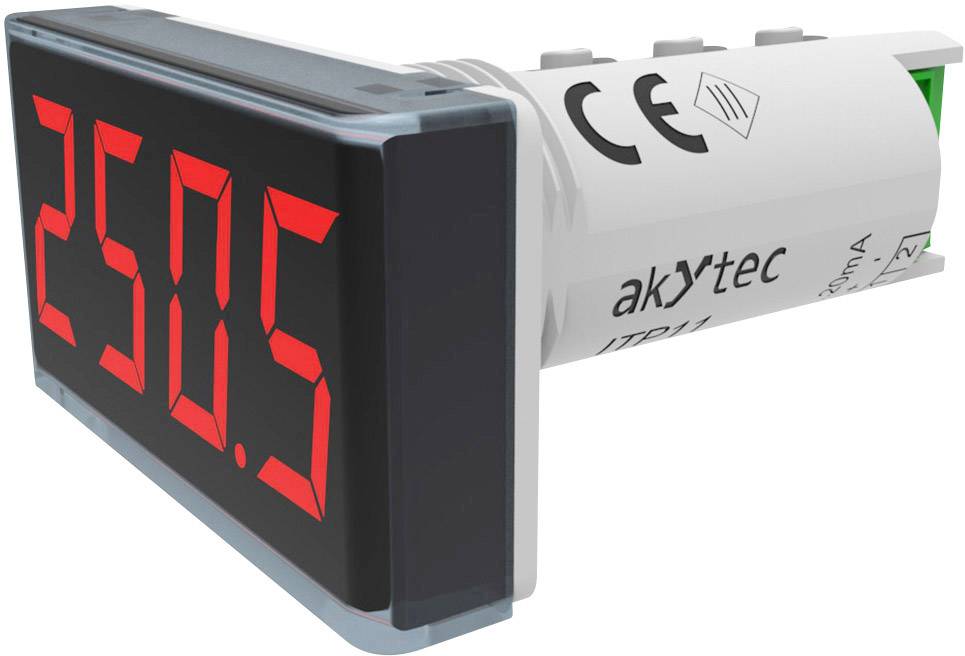

Name: akYtec ITP14 Digital rack-mount meter
Brand: akYtec
SKU: 1842446
Availability: InStock

Digital display with red number '2505', indicating a measured value. Device has CE marking, model ID 'ITP14', protection rating IP65/IP20.

A black board with a large red button and a digital display showing '250.5'.

A cylindrical device with a QR code and the inscription 'GET MANUAL'. The right side shows four exposed connector points.

1/3

Datasheet (PDF)

Fast track dispatch on Wed 14 Oct

27 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 124.99 / piece)

€ 124.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Universal process display ITP 14 (red)

Analog input 0-10V, 4-20mA and other
Measuring and displaying a process variable
Signal scaling
Adjustable decimal point position
Display range -999 … +9999
Two-point control with a NPN output
Square root function (for special transmitter)
Digital filter
Alarm function (flashing when the setpoint deviations)
Error message with a lower/exceeding the Measurement Limits
Error message in the event of wire break or short circuit

Technical specifications

Eingsngssignal: 0 to 5 mA, 0 (4) -20 mA, 0 (2) -10 V
Accuracy ± (0.2% FS + 1 digit)
Sampling time: 0.3 s
Temperature influence: ≤ 0.2%/10 °C
Input resistance: 0 to 5 mA, 0 (4) -20 mA ≤ 120 Ohm/0 (2) -10 V ≥ 250 kOhm
Ambient temperature: -40 to +60 °C.

Product type: Digital rack-mount meter

Reading type: DC current
DC voltage

Reading range (min.): 4 mA

Type: ITP14

Reading range (max.): 20 mA

Display technology: LED

: IP65 (on front)/IP20 (on back)

Display (counts): 9999

Operating voltage: 24 V DC

Dim: (Ø x H) 22.5 mm x 48 mm

Weight: 30 g

Display lighting: red

Features: selectable units

Factory colour: Red

Reading category: CAT I

Width: 26 mm

Height: 48 mm

Length: 65 mm

(Ø): 22.5 mm

Documents & Downloads

Datasheet

Datasheet 1842446 akYtec ITP14 Digital rack-mount meter

User & Safety Instructions

User & Safety Instructions 1842446 akYtec ITP14 Digital rack-mount meter

Description

The ITP14 is a universally usable process display for monitoring and control of industrial processes. The display has a digital output and a configurable analogue input. The input can either for current signals (4-20mA, 0-20mA, 0 mA) or for voltage signals (0-10V or 2-10V) can be set. This device has a compact, standardised design and fits in a standard 22.5 mm hole for signal lights. This enables a quick and easy installation and many displays can be used in a switch cabinet or in a control panel can be accommodated.
