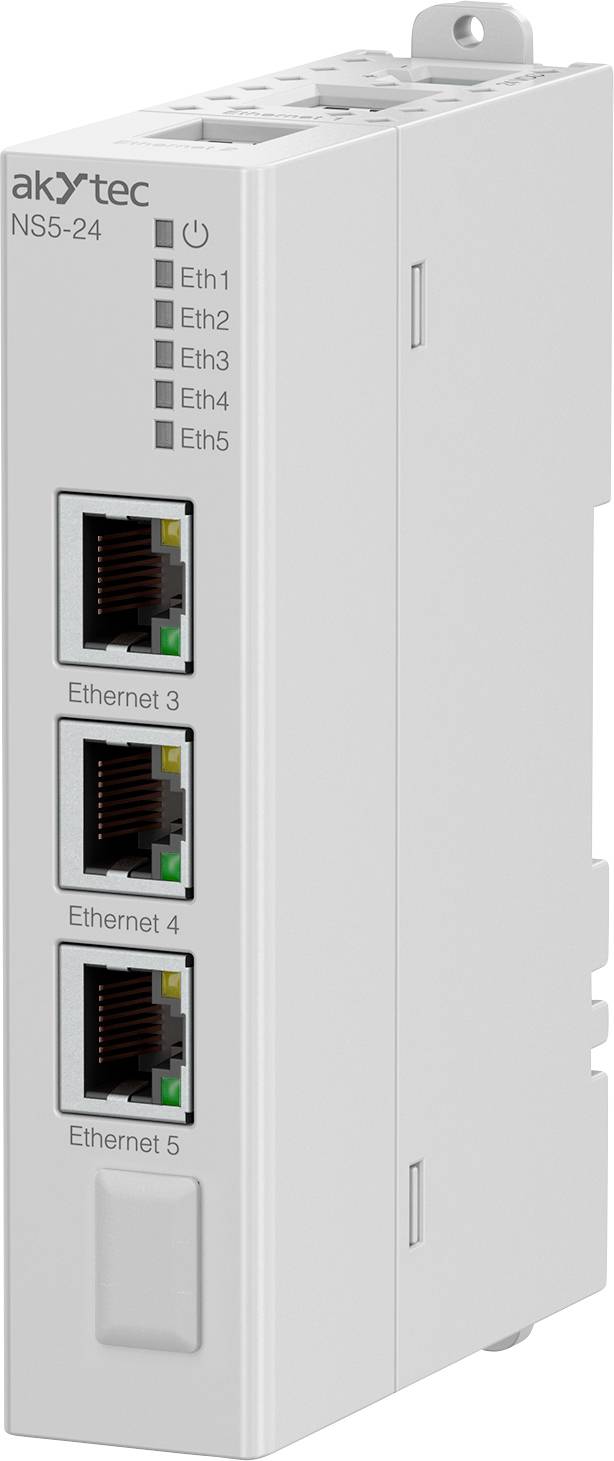

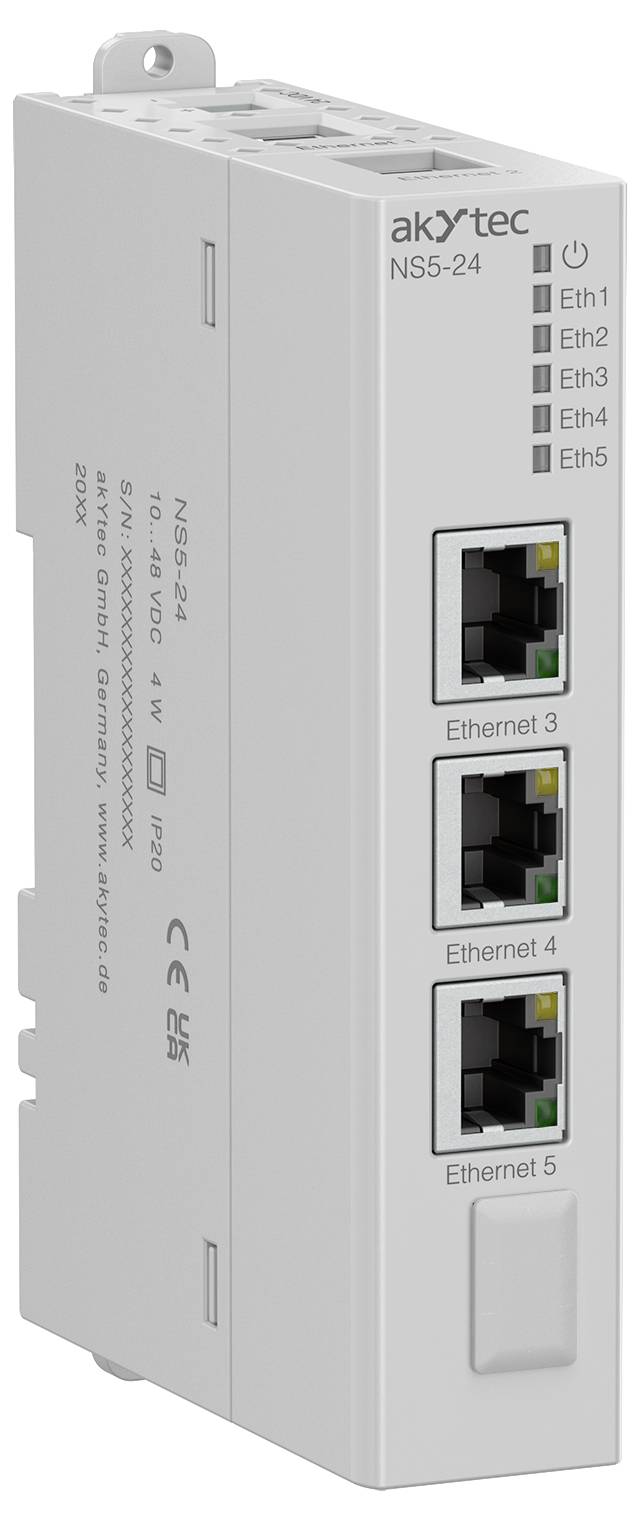

akYtec NS5-24 148567 PLC industrial ethernet switch 24 V DC
Part number:
Item no:
Highlights & Details

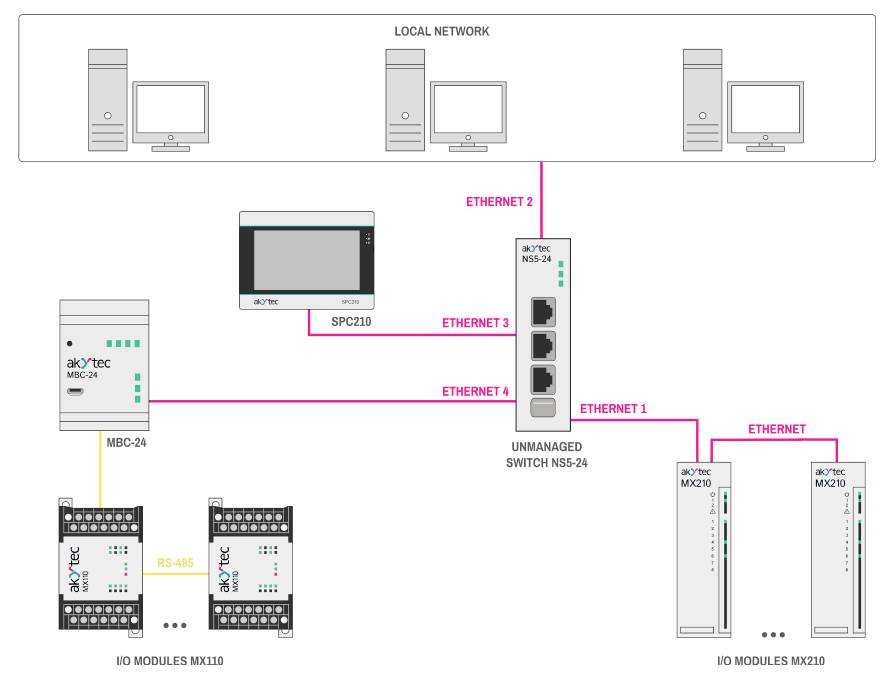

NS5-24, 5-port unmanaged switch
- Easy and reliable to use – no additional software required for installation or operation. Works according to the plug-and-play principle.
- Suitable for harsh environmental conditions – Operating temperature range from –40 °C to +55 °C.
- Wide supply voltage range – 12 to 48 VDC.
- Automatic detection of MDI/MDI-X connection types.
- Automatic identification of cable types – supports straight (568B) and crossed (568A) assignments for connected devices.
- Compact dimensions of the plastic housing – 25 × 100 × 86 mm.
- Easy mounting on top hat rail (DIN rail).
- With covers to lock unused ports.
Technical specifications
- Min Operating voltage 10 VDC
- Max. operating voltage = 48 V/DC
- Nominal operating voltage 24 V/DC
- Power supply: 24 (10...48) VDC
- Ambient temperature -40...+55 °C
- Protection class: IP20
- Dimensions 28.0 × 124.0 × 83.5 mm
- Weight 0.15 kg
- Mounting: DIN rail
- Housing material: Plastic
- Number of ports: 5
- Switch layer L2
- Product type
PLC industrial ethernet switch
- Min. operating voltage
10 V DC
- Operating voltage
10 - 48 V DC
- Max. operating voltage
48 V DC
- Operating voltage
24 V DC
IP20
- Type
NS5-24
- Manufacturer part #
148567
- Max. ambient temperature
-40 °C
- Min. ambient temperature
+55 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3553209 akYtec NS5-24 148567 PLC industrial ethernet switch 24 V DC
Description
The SIMATIC S7-200 family offers a broad spectrum of modules suitable for the most varied applications. The newly available CPU types and expansion modules enable universal automation concepts with 10 to 248 inputs/outputs. The products of the S7-200 family which are optimally matched to each other also make it easy to change and expand the automation solution in the future.
Area of application e.g.:small and special machines: Packaging, encompassing and wrapping machines .Food industry: kneading, cutting machines, Mixing .Laboratory: Lab mixer, steam ovens, vacuum pumps, suction mechanisms.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU through a connector.
Area of application e.g.:small and special machines: Packaging, encompassing and wrapping machines .Food industry: kneading, cutting machines, Mixing .Laboratory: Lab mixer, steam ovens, vacuum pumps, suction mechanisms.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU through a connector.
Scope of delivery
- NS5–24
- User manual
- Set of port covers
- Terminal clamp for power supply
