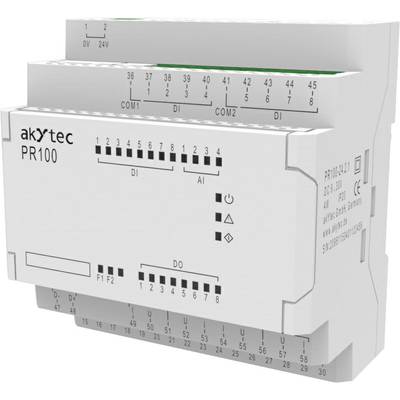

akYtec PR100-24.2.1 37C066 PLC controller 24 V DC
EAN:
Part number:
Item no:
Number
Total (€ 105.03 / piece)
€ 105.03
plus VAT.
Only 6 Piece(s) available
Technical specifications
- PR100 is a compact mini-PLC equipped with a number of 20 inputs and outputs.
- master or slave in a Modbus network via RS485
- Power consumption: max. 4 W
- Type: Relay output, NO.
- Programming interface: Micro-USB
- Galvanic isolation: In 4er groups
- Memory:
- ROM: 128 kB
- RAM: 16 kB
- Retain: 1 kB
- Network variable: 28 bytes
- Interfaces
1 x RS485
- No. of analogue inputs
4
- No. of digital inputs (max.)
8
- No. of inputs (max.)
12
- No. of outputs (max.)
8
- No. of relay outputs (max.)
8
- Supported protocols
Modbus RTU / ASCII (master / slave)
- Min. operating voltage
9 V DC
- Operating voltage
9 - 30 V DC
- Max. operating voltage
30 V DC
- Operating voltage
24 V DC
- Height
58 mm
- Length
108 mm
- Width
88 mm
- Program memory
ROM;RAM;Retain;Netzwerkvariabl kB
IP20
- Type
PR100-24.2.1
- Manufacturer part #
37C066
- Dim
(L x W x H) 108 x 88 x 58 mm
- Display
No
- Fitting type (details)
DIN rail (switchboard / distribution box)
- Real-time clock
Yes
- Max. ambient temperature
+55 °C
- Min. ambient temperature
-40 °C
- Product type
PLC controller
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2359028 akYtec PR100-24.2.1 37C066 PLC controller 24 V DC
User & Safety Instructions 2359028 akYtec PR100-24.2.1 37C066 PLC controller 24 V DC
Description
The SIMATIC S7-200 family offers a broad spectrum of modules suitable for the most varied applications. The newly available CPU types and expansion modules enable universal automation concepts with 10 to 248 inputs/outputs. The products of the S7-200 family which are optimally matched to each other also make it easy to change and expand the automation solution in the future.
Area of application e.g.:small and special machines: Packaging, encompassing and wrapping machines .Food industry: kneading, cutting machines, Mixing .Laboratory: Lab mixer, steam ovens, vacuum pumps, suction mechanisms.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU through a connector.
Area of application e.g.:small and special machines: Packaging, encompassing and wrapping machines .Food industry: kneading, cutting machines, Mixing .Laboratory: Lab mixer, steam ovens, vacuum pumps, suction mechanisms.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU through a connector.
Scope of delivery
- PR100
- Quick guide
- Terminal strips (set)
