akYtec PR103.24.3.2 138888 PLC control relay 24 V DC
Part number:
Item no:
Highlights & Details

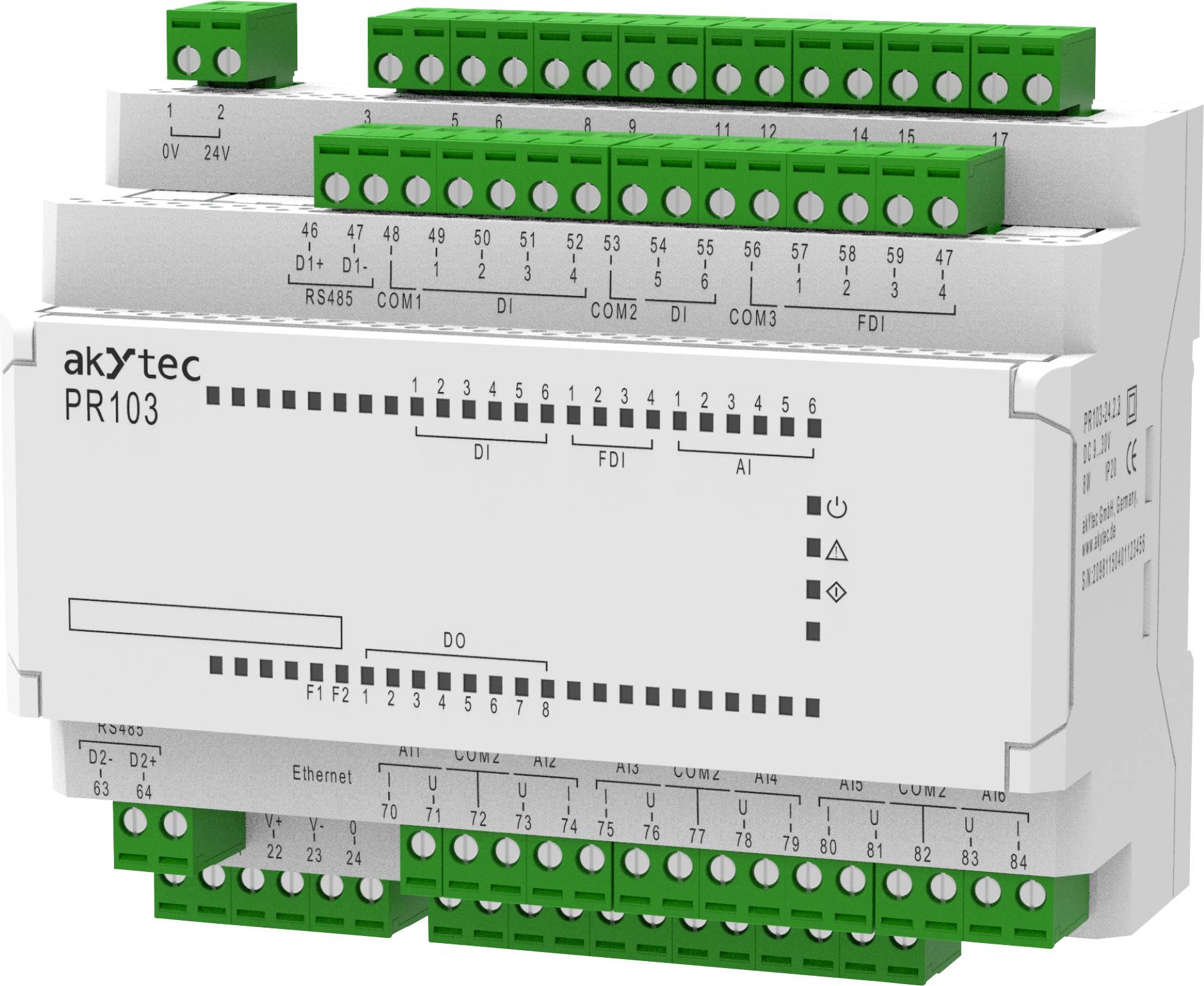

PR103.24.3.2, programmable relay
- Connection equipment:
- 10 digital inputs
- 4 fast digital inputs, up to 100 kHz
- 6 analog inputs: PT1000, NTC/PTC, 4...20 mA/ 0...10 V, discrete mode, etc.
- 10 digital outputs (e/m relays or transistor switches)
- Communication options:
- Ethernet interface, Master/slave mode:
- Direct access to the akYtecCloud cloud service. (Coming soon)
- PC connection for program configuration and recording
- Process visualization with control panels and SCADA.
- Expansion of I/O with akYtec MX210 modules
- 2 RS-485 interfaces, Master/slave mode:
- Integration with SCADA systems
- Process visualization via control panels
- Expansion of I/O with akYtec MX110 modules
- Control of external devices: Frequency converter, sensors, etc.
- Connection to a PC for configuration and program recording
- Compact modular housing with a width of 7 modules
- Removable terminal blocks for easy installation
- Quick battery change
- Operation:
- Supply voltage 24V
- Supply via the on-board power supply with 12 V.
- Expansion of I/O channels up to 32 with the help of akYtec PRM modules
- Operation in unheated rooms: -40...+55 °С
- Configuration and program recording via USB, Ethernet and RS-485.
Technical specifications
- Min Operating voltage 9 V DC
- Max. Operating voltage 30 V DC
- Operating voltage: 24 V DC
- Display: No.
- Dimensions 123 x 108 x 58 mm (L x W x H)
- Number of relay outputs (max.): 10
- Height: 58 mm
- Length 123 mm.
- Width 108 mm
- IP protection class IP20
- Manufacturer part number: 138888
- Mounting type (details): DIN rail (control panel / distribution box)
- Real-time clock: Yes
- Maximum ambient temperature: +55 °C
- Minimum ambient temperature -40°C.
- Interfaces: 1 x Ethernet, 2 x RS485
- Number of digital inputs (max.): 6
- Number of fast digital inputs (max.): 4
- Number of analogue inputs (max.) (4...20 mA, 0...10 V, Pt1000, NTC, PTC, 0...300 kOhm, etc.): 6
- Supported protocols: Modbus TCP/RTU / ASCII (Master / slave)
- Clock: Real-time clock
- Program memory: ROM 224 kB / Retain 60 kB
- Number of expansion modules: 2
- Model type: PR103.24.3.2
- Product type: PLC control
- Product type
PLC control relay
- No. of analogue inputs
6
- No. of digital inputs (max.)
6
- No. of inputs (max.)
16
- No. of outputs (max.)
10
- No. of relay outputs (max.)
10
- Supported protocols
ModBUS TCP / RTU / ASCII (Master / slave)
- Min. operating voltage
9 V DC
- Operating voltage
9 - 30 V DC
- Max. operating voltage
30 V DC
- Operating voltage
24 V DC
- Height
58 mm
- Length
123 mm
- Width
108 mm
- Program memory
224 kB
IP20
- Type
PR103.24.3.2
- Manufacturer part #
138888
- Dim
(L x W x H) 123 x 108 x 58 mm
- Display
No
- Real-time clock
Yes
- Max. ambient temperature
-40 °C
- Min. ambient temperature
+55 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3553216 akYtec PR103.24.3.2 138888 PLC control relay 24 V DC
User & Safety Instructions 3553216 akYtec PR103.24.3.2 138888 PLC control relay 24 V DC
Description
The SIMATIC S7-200 family offers a broad spectrum of modules suitable for the most varied applications. The newly available CPU types and expansion modules enable universal automation concepts with 10 to 248 inputs/outputs. The products of the S7-200 family which are optimally matched to each other also make it easy to change and expand the automation solution in the future.
Area of application e.g.:small and special machines: Packaging, encompassing and wrapping machines .Food industry: kneading, cutting machines, Mixing .Laboratory: Lab mixer, steam ovens, vacuum pumps, suction mechanisms.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU through a connector.
Area of application e.g.:small and special machines: Packaging, encompassing and wrapping machines .Food industry: kneading, cutting machines, Mixing .Laboratory: Lab mixer, steam ovens, vacuum pumps, suction mechanisms.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU through a connector.
Scope of delivery
- PR103 - Device
- Quick guide
- Terminal blocks (set)
