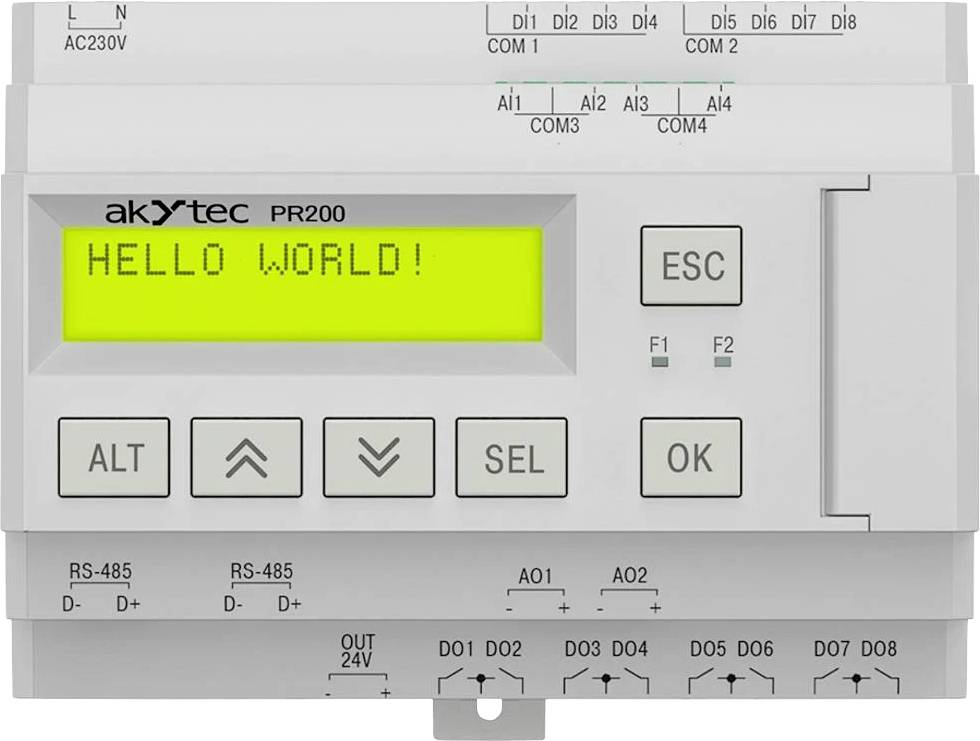

A control panel display shows 'HELLO WORLD!' in bright green text, surrounded by buttons labeled ESC, OK, ALT, SEL, and directional arrows.

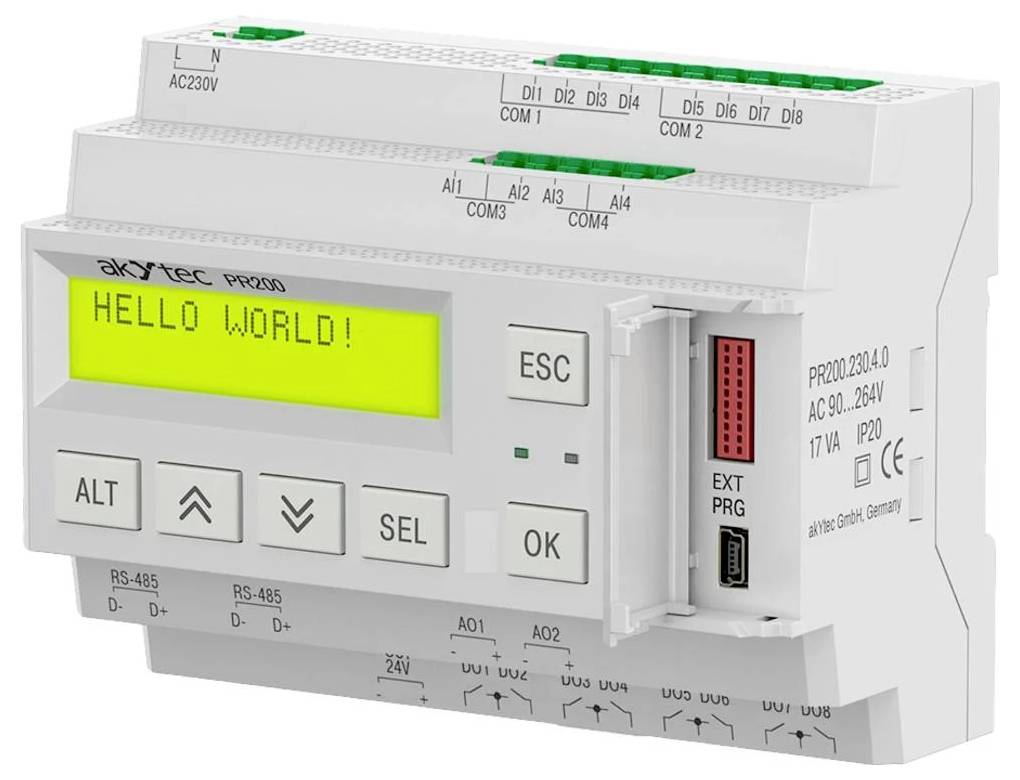

The image shows a white electronic device with a digital screen displaying 'HELLO WORLD!' and several buttons and ports for connectivity.

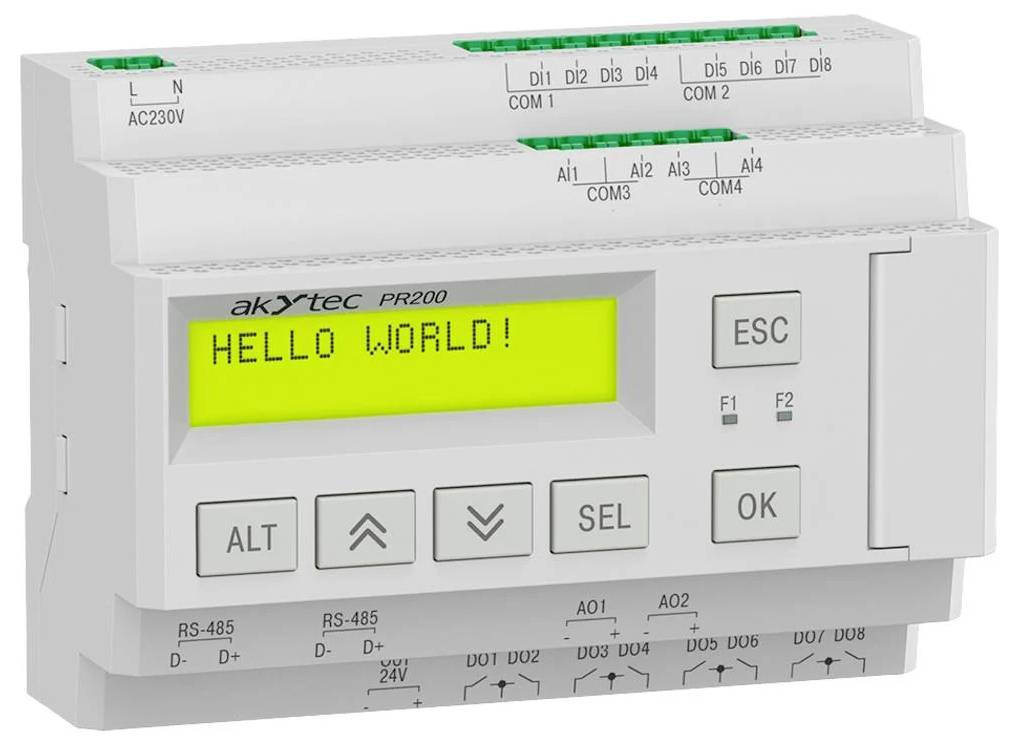

Programmable logic controller with a display showing 'HELLO WORLD!'. It features buttons labeled ALT, ESC, OK, and SEL.

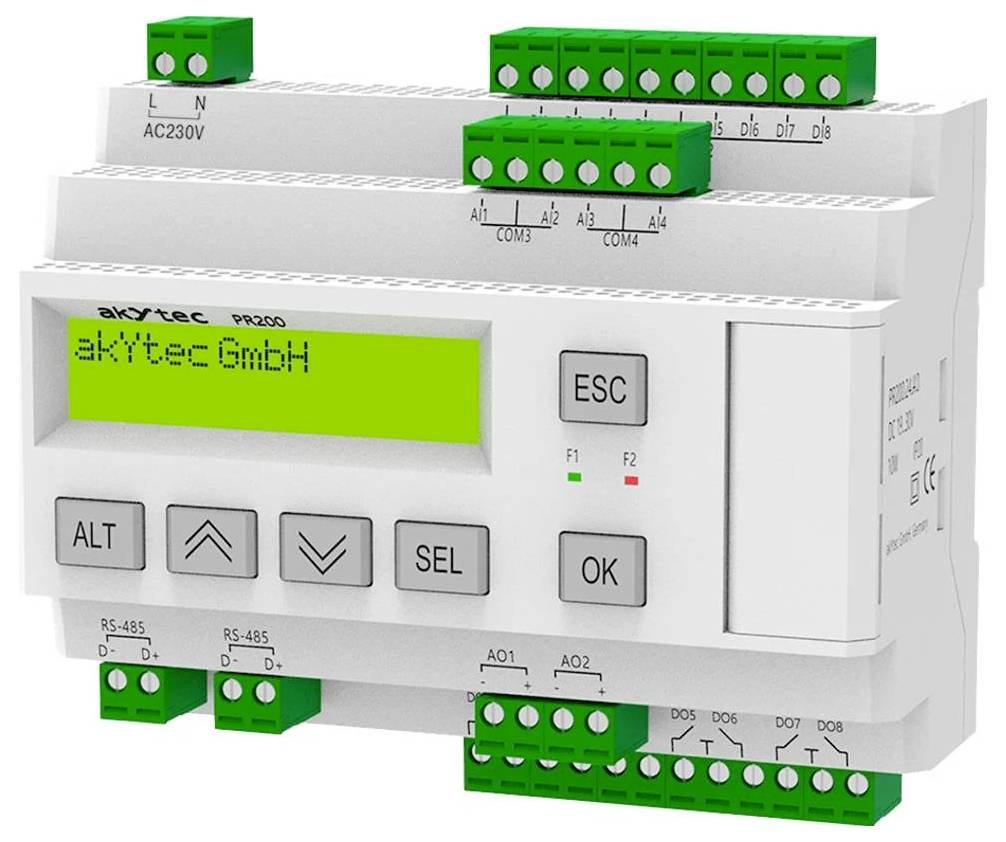

'PR200' programmable logic controller with display screen showing 'akytec GmbH'. Includes buttons and multiple connection terminals.

1/4

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PR200.230.3.2, programmable relay

Up to 24 I/O in one unit + LCD and up to 2xRS485
Connection of various sensors (4–20 mA, 0–10 V, resistance sensors (PTC, KTY thermistors, Pt1000) and actuators
Control of outputs according to the input status and the logic of the user application
Configuration via function keys or ALP software
Extensive programming of LCD-displays
2 programmable LEDs
Master and/or slave in a Modbus network
Real-time clock
Expansion modules
Removable terminal blocks
The PR200 is suitable for a wide range of applications such as building automation, lighting control, access control systems, technical equipment such as pumps, fans, compressors and presses, as well as conveyor and filling systems, etc.

Technical specifications

Min Operating voltage 90 V AC
Max. Operating voltage 264 V AC
Operating voltage 230 V AC
Type: PR200.230.3.2
Dimensions 123 x 108 x 58 mm (L x W x H)
Product type: PLC control
Height: 58 mm
Length 123 mm.
Width 108 mm
IP protection class IP20
Manufacturer part number: 148386
Real-time clock: Yes
Interfaces: 2 x RS485
Supported protocols: Modbus RTU / ASCII (Master / slave)
Clock: Real-time clock
Program memory: ROM 128 kB / Retain 32 kB
Number of expansion modules: 2
Max. Surrounding temperature +55 °C
Min Surrounding temperature -20 °C
No. of digital inputs (max.): 8
No. of analogue inputs (max.) (4...20 mA, 0...10 V, Pt1000, NTC, PTC, 0...300 kOhm etc.): 4
Number of relay outputs (max.): 8
Display: Yes
Mounting type (details): DIN rail (switch cabinet / distribution box)

Product type: PLC control relay

No. of analogue inputs: 4

No. of digital inputs (max.): 8

No. of relay outputs (max.): 8

Supported protocols: ModBus RTU / ASCII (Master / slave)

Min. operating voltage: 90 V AC

Operating voltage: 90 - 264 V AC

Max. operating voltage: 264 V AC

Operating voltage: 230 V AC

: IP20

Type: PR200.230.3.2

Manufacturer part #: 148386

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3553219 akYtec PR200.230.3.2 148386 PLC control relay 230 V AC

Description

The SIMATIC S7-200 family offers a broad spectrum of modules suitable for the most varied applications. The newly available CPU types and expansion modules enable universal automation concepts with 10 to 248 inputs/outputs. The products of the S7-200 family which are optimally matched to each other also make it easy to change and expand the automation solution in the future.
Area of application e.g.:small and special machines: Packaging, encompassing and wrapping machines .Food industry: kneading, cutting machines, Mixing .Laboratory: Lab mixer, steam ovens, vacuum pumps, suction mechanisms.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU through a connector.

Scope of delivery

PR200 device
Quick guide
Terminal clamps (set)
USB cable
