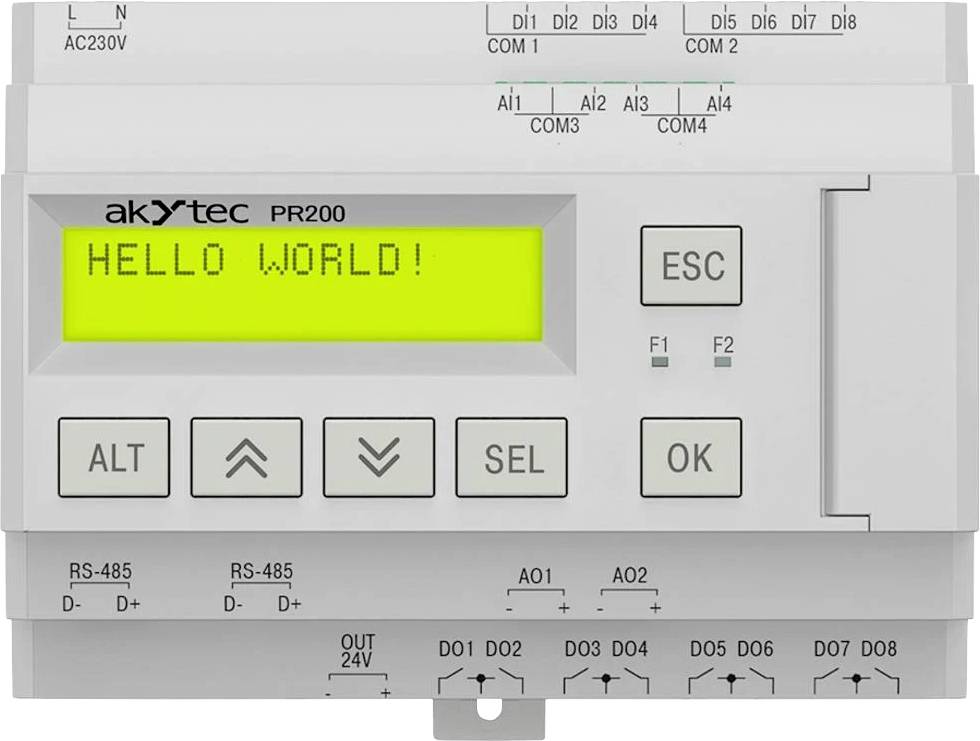

A digital panel display shows the message 'HELLO WORLD!' on a device labeled akYtec PR200. The device features various control buttons and connection ports.

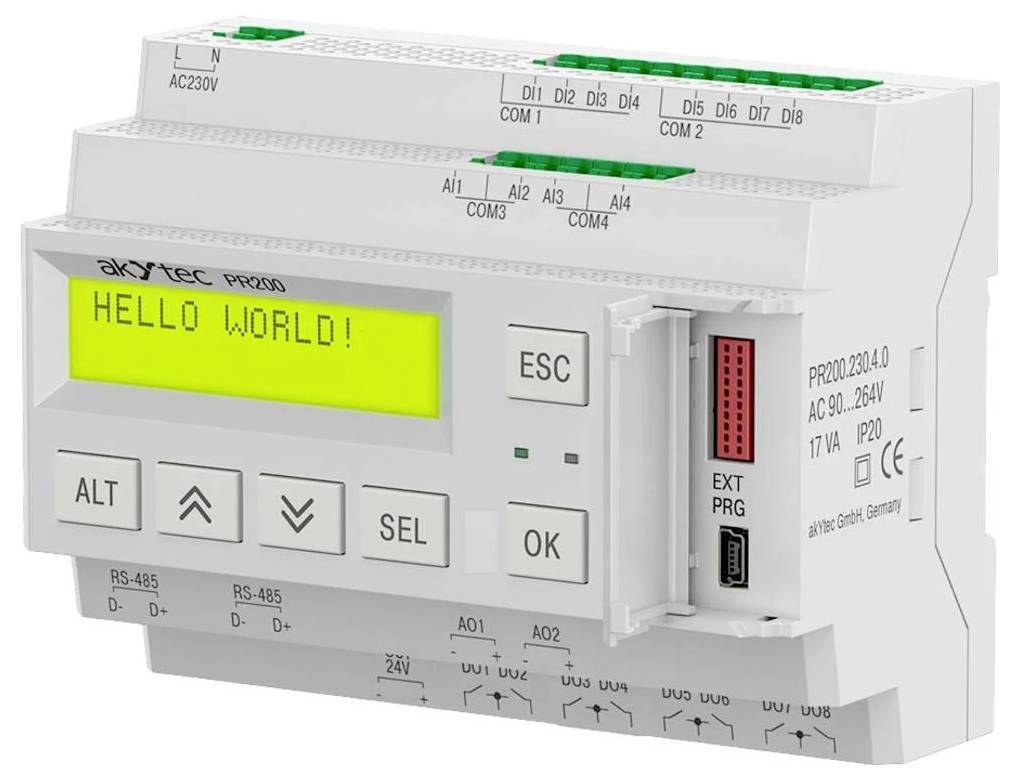

Programmable logic controller with display screen showing 'HELLO WORLD!', multiple input/output ports, and navigation buttons.

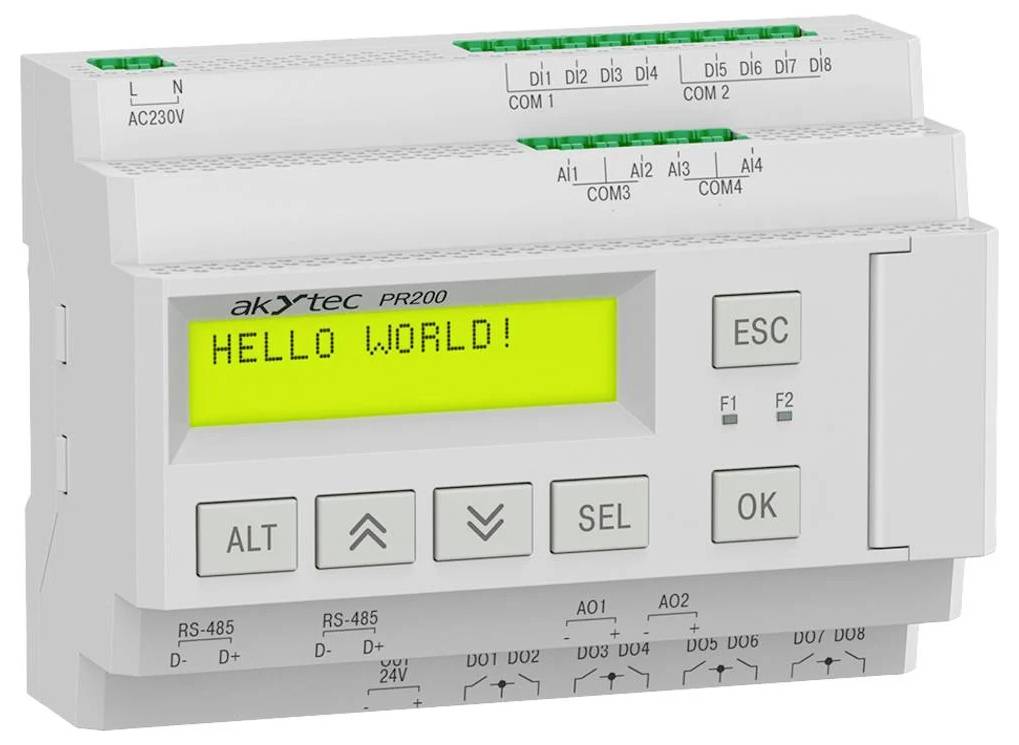

A programmable logic controller with a display showing 'HELLO WORLD!' and various buttons for navigation and control.

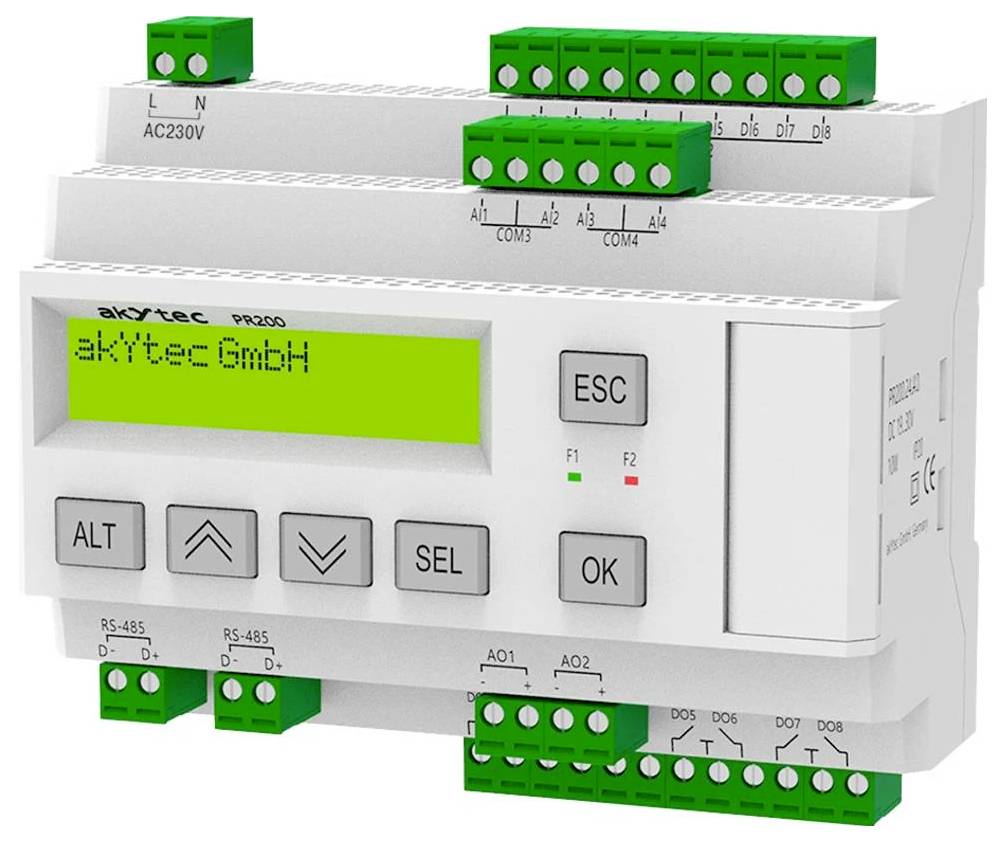

A digital controller device with multiple green ports, a display showing 'akytec GmbH', and buttons for navigation and selection.

1/4

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PR200.24.5.2, programmable relay

Up to 24 I/O in one unit + LCD and up to 2xRS485
Connection of various sensors (4–20 mA, 0–10 V, resistance sensors (PTC, KTY thermistors, Pt1000) and actuators
Control of outputs according to the input status and the logic of the user application
Configuration via function keys or ALP software
Extensive programming of LCD-displays
2 programmable LEDs
Master and/or slave in a Modbus network
Real-time clock
Expansion modules
Removable terminal blocks
The PR200 is suitable for a wide range of applications such as building automation, lighting control, access control systems, technical equipment such as pumps, fans, compressors and presses, as well as conveyor and filling systems, etc.

Technical specifications

Min Operating voltage 19 V DC
Max. Operating voltage 30 V DC
Operating voltage: 24 V DC
Type: PR200.24.5.2
Dimensions 123 x 108 x 58 mm (L x W x H)
Product type: PLC control
Height: 58 mm
Length 123 mm.
Width 108 mm
IP protection class IP20
Manufacturer part number: 148387
Real-time clock: Yes
Interfaces: 2 x RS485
Supported protocols: Modbus RTU / ASCII (Master / slave)
Clock: Real-time clock
Program memory: ROM 128 kB / Retain 32 kB
Number of transistor outputs (max.): 4
Number of expansion modules: 2
Max. Surrounding temperature +55 °C
Min Surrounding temperature -20 °C
No. of digital inputs (max.): 8
No. of analogue inputs (max.) (4...20 mA, 0...10 V, Pt1000, NTC, PTC, 0...300 kOhm etc.): 4
Number of relay outputs (max.): 8
Display: Yes
Mounting type (details): DIN rail (switch cabinet / distribution box)

Product type: PLC control relay

No. of analogue inputs: 4

No. of digital inputs (max.): 8

No. of relay outputs (max.): 8

Supported protocols: ModBus RTU / ASCII (Master / slave)

Min. operating voltage: 19 V DC

Operating voltage: 19 - 30 V DC

Max. operating voltage: 30 V DC

Operating voltage: 24 V DC

: IP20

Type: PR200.24.5.2

Manufacturer part #: 148387

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3553335 akYtec PR200.24.5.2 148387 PLC control relay 24 V DC

Description

The SIMATIC S7-200 family offers a broad spectrum of modules suitable for the most varied applications. The newly available CPU types and expansion modules enable universal automation concepts with 10 to 248 inputs/outputs. The products of the S7-200 family which are optimally matched to each other also make it easy to change and expand the automation solution in the future.
Area of application e.g.:small and special machines: Packaging, encompassing and wrapping machines .Food industry: kneading, cutting machines, Mixing .Laboratory: Lab mixer, steam ovens, vacuum pumps, suction mechanisms.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU through a connector.

Scope of delivery

PR200 device
Quick guide
Terminal clamps (set)
USB cable
