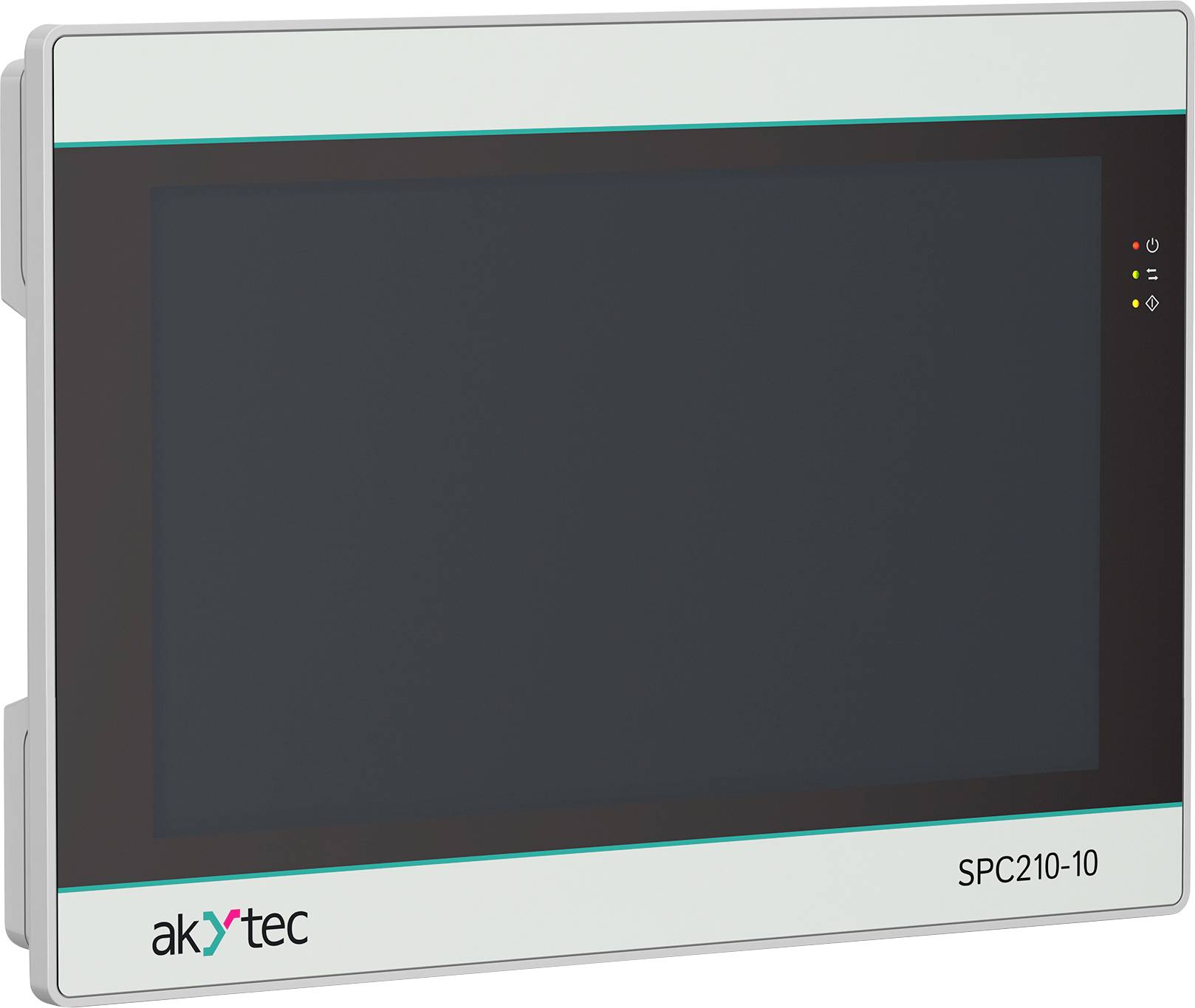

akYtec SPC210-10 150622 PLC touch panel 24 V DC
Part number:
Item no:
Highlights & Details
SPC210-10, touch screen 10"
- Available with 7” (800×480) or 10.2” (1024×600) resistive touch screen.
- Programming with CODESYS V3.5.

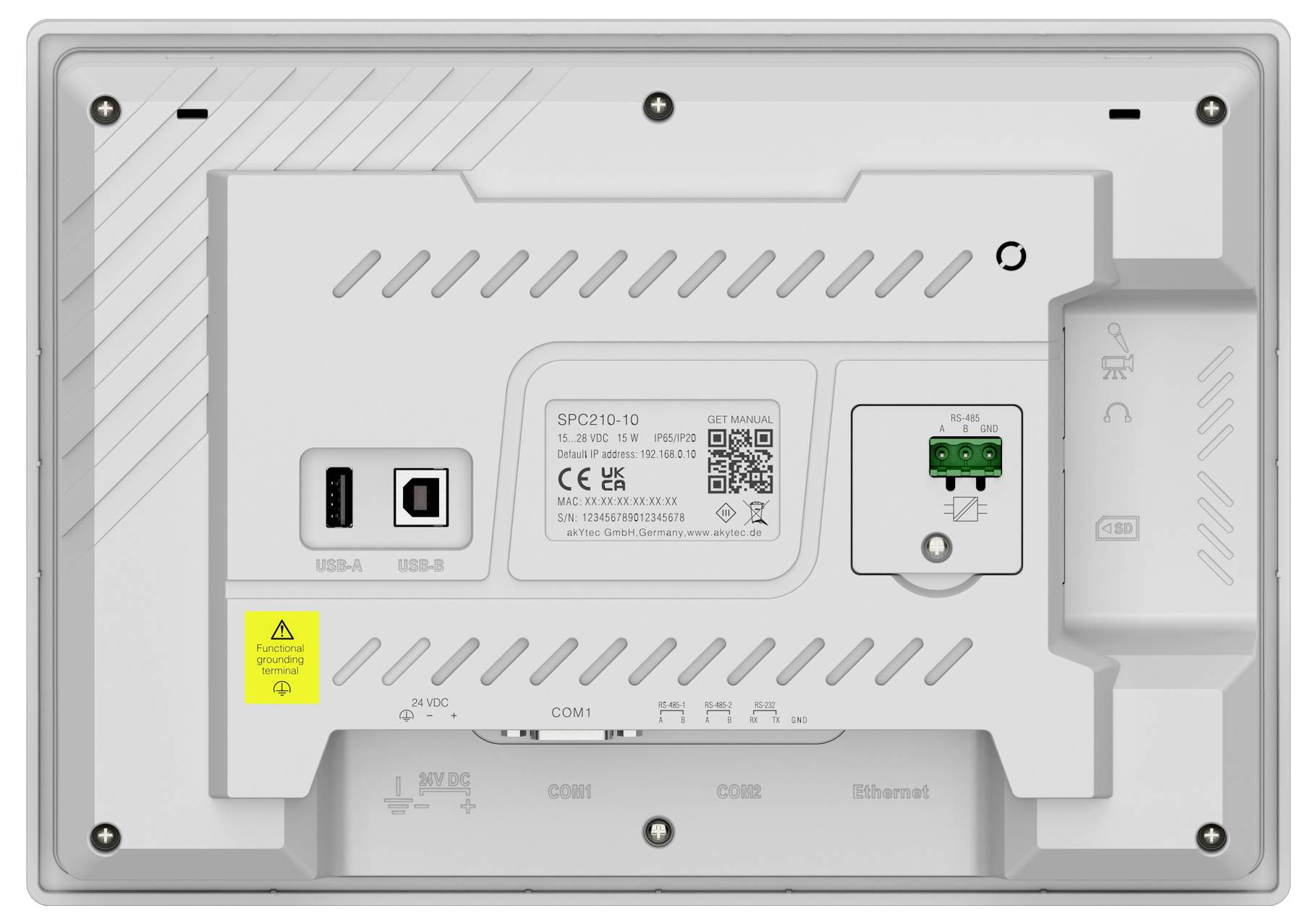

- Interfaces: Ethernet, 3×RS-485, 1×RS-232, USB host, USB device, SD card slot and one RS-485 port with galvanic separation.
- Supported protocols: Modbus (RTU, ASCII, TCP), OPC UA (server), MQTT (client), SNMP (Manager/Agent).
- Project and firmware updates via USB and SD storage media.
- Web visualization for real-time process monitoring.
- Operating system: Embedded Linux
- Adjustable watchdog timer for system reliability.
- Supported application protocols: NTP, FTP, FTPS, HTTP, HTTPS, SSH, SMTP/IMAP/POP3, OpenVPN, wire guard.
- Database connection: Compatible with MySQL, MSSQL and PostgreSQL.
- GSM/GPRS modem support for remote connection.
- Expandable I/O: Additional I/O points can be connected via any integrated interface.
- Delivery includes a DB9 to terminal adapter with built-in 120 Ohm resistors (can be activated by DIP switch).
- USB-A direct connection: Supports peripherals such as mouse and keyboard.
- IP65 protection: Ensures longevity and reliability in harsh environments.
Technical specifications
- Supply voltage 24 VDC
- Ethernet interface: 1 × Ethernet 10/100 Mbps (RJ45); supported protocols: Modbus TCP (Master/Slave), OPC UA (Server), MQTT (Client/Broker), SNMP (Manager/Agent)
- Device: SPC210-10
- Processor 4x Cortex-A35
- Clock frequency 1200 MHz
- ROM:4 GB (eMMC)
- RAM 512 MB (DDR3)
- Non-volatile variable memory (Retain): 64 KB (MRAM)
- Minimum cycle time 10 ms
- Real Time Clock (RTC): Yes
- Piezo buzzer, controllable via program
- Display type TFT LCD, resistive
- Screen size 10.0 inches
- Resolution 1024×600 pixels
- RS-interfaces: 3 × RS-485, 1 × RS-232; supported protocols: Modbus RTU (Master/Slave), Modbus ASCII (Master/Slave)
- Operating system: Linux 4.19.232-rt104
- Programming environment: CODESYS V3.5 SP17 Patch 3
- Dimensions (W×H×D) (272×191×41.5) ± 1 mm
- Mounting dimensions 260×179 mm
- Protection class (front side) IP65
- Protection class (rear) IP20
- Product type
PLC touch panel
- Operating voltage
24 V DC
- Height
191 mm
- Length
41.5 mm
- Width
272 mm
IP65
IP20
- Data storage
64 kB
- Type
SPC210-10
- Manufacturer part #
150622
- Dim
(L x W x H) 41.5 x 272 x 191 mm
- Display
Yes
- Real-time clock
Yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3553198 akYtec SPC210-10 150622 PLC touch panel 24 V DC
User & Safety Instructions 3553198 akYtec SPC210-10 150622 PLC touch panel 24 V DC
Description
The SIMATIC S7-200 family offers a broad spectrum of modules suitable for the most varied applications. The newly available CPU types and expansion modules enable universal automation concepts with 10 to 248 inputs/outputs. The products of the S7-200 family which are optimally matched to each other also make it easy to change and expand the automation solution in the future.
Area of application e.g.:small and special machines: Packaging, encompassing and wrapping machines .Food industry: kneading, cutting machines, Mixing .Laboratory: Lab mixer, steam ovens, vacuum pumps, suction mechanisms.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU through a connector.
Area of application e.g.:small and special machines: Packaging, encompassing and wrapping machines .Food industry: kneading, cutting machines, Mixing .Laboratory: Lab mixer, steam ovens, vacuum pumps, suction mechanisms.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU through a connector.
Scope of delivery
- SPC210-xx
- User manual
- Mounting set with mounting brackets
- Power supply terminal
- SPC210 adapter
