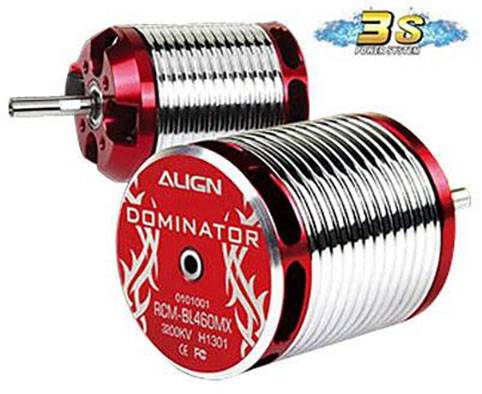

Align ALIGN Motor 460MX Brushless 3200 KV Spare part Brushless motor
EAN:
Part number:
Item no:
Technical specifications
- Number of motor poles: 6
- Outer diameter: 29.2 mm
- Input voltage: 11.1 V
- Weight: 87 g
- Length 38 mm
- Idle speed per volt: 3200 kV
- Engine type: Brushless
- Shaft diameter: 3.5 mm
- Product type
Spare part
- Spare part type
Brushless motor
- Content
1 pc(s)
- for brands
ALIGN
- Intended use
Spare part
- Range of use
Model helicopters
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2275875 Align ALIGN Motor 460MX Brushless 3200 KV Spare part Brushless motor
Description
ALIGN Motor 460MX Brushless 3200 KV
Brushless Sensorless Motor
Dimensions: 38 mm (L) x 29.2 mm (Ø)
Motor type: Brushless
idle speed per volt: 3200 kV
Brushless motor
Brushless motor is an electric motor without brushes, which is characterized by a higher degree of efficiency, lower wear and lower weight compared to the brushed motor.
Senorless
for sensorless brushless motors, the position of the rotor is determined by the counter-voltage triggered in the coils of the stator during induction, which is evaluated by the electronic control circuit. Since a minimum speed is required to evaluate the counter voltage, sensorless brushless motors will run blind until then.
