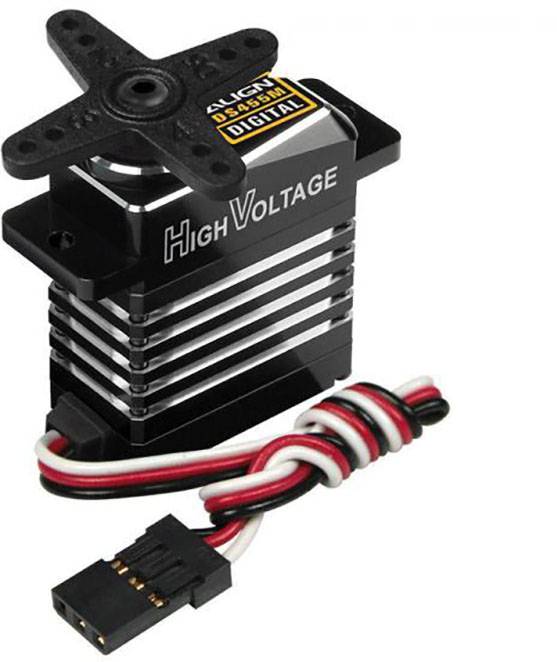

Align Micro servo Servo DS455M Digital HV Digital servo Gear box material: Metal
EAN:
Part number:
Item no:
Technical specifications
- Max. Actuating power: 2.4 kg at 8.4 V.
- Motor type: Coreless
- Servo teeth 25
- Set: No.
- Product type
Micro servo
- Model
ALIGN servo DS455M digital HV
- Dim
(L x W x H) 23 x 12 x 31.3 mm
- Length
23 mm
- Width
12 mm
- Height
31.3 mm
- Voltage
High
- Weight
20 g
- Actuation time at 6 V
0.05 s
- Gear box
Metal
- Type of bearing
Double ball bearing
- Servo technology
Digital servo
- Operating voltage
6 V (max)
- Max. operating voltage
6 V
- Manufacturer part #
HSD45501
- for brands
ALIGN
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2275314 Align Micro servo Servo DS455M Digital HV Digital servo Gear box material: Metal
Description
ALIGN Servo DS455M Digital HV
Micro Servo
gear: Metal
Max. Actuating power: 2.4 kg
Servo-size: Micro
digital servo – for exact control commands
Digital servos have a higher angular resolution compared to analogueue servos and the servo position is regulated faster and more precisely. They can also be programd frequently, allowing you to set the zero point and the speed, for example. In addition, a digital servo requires about 4 times more current than an analogueue servo.
This text is machine translated.
Micro Servo
gear: Metal
Max. Actuating power: 2.4 kg
Servo-size: Micro
digital servo – for exact control commands
Digital servos have a higher angular resolution compared to analogueue servos and the servo position is regulated faster and more precisely. They can also be programd frequently, allowing you to set the zero point and the speed, for example. In addition, a digital servo requires about 4 times more current than an analogueue servo.
This text is machine translated.
