Allnet 180817 ALL-SGO8103P Network switch 3 ports 1 GBit/s PoE
EAN:
Part number:
Item no:
Highlights & Details

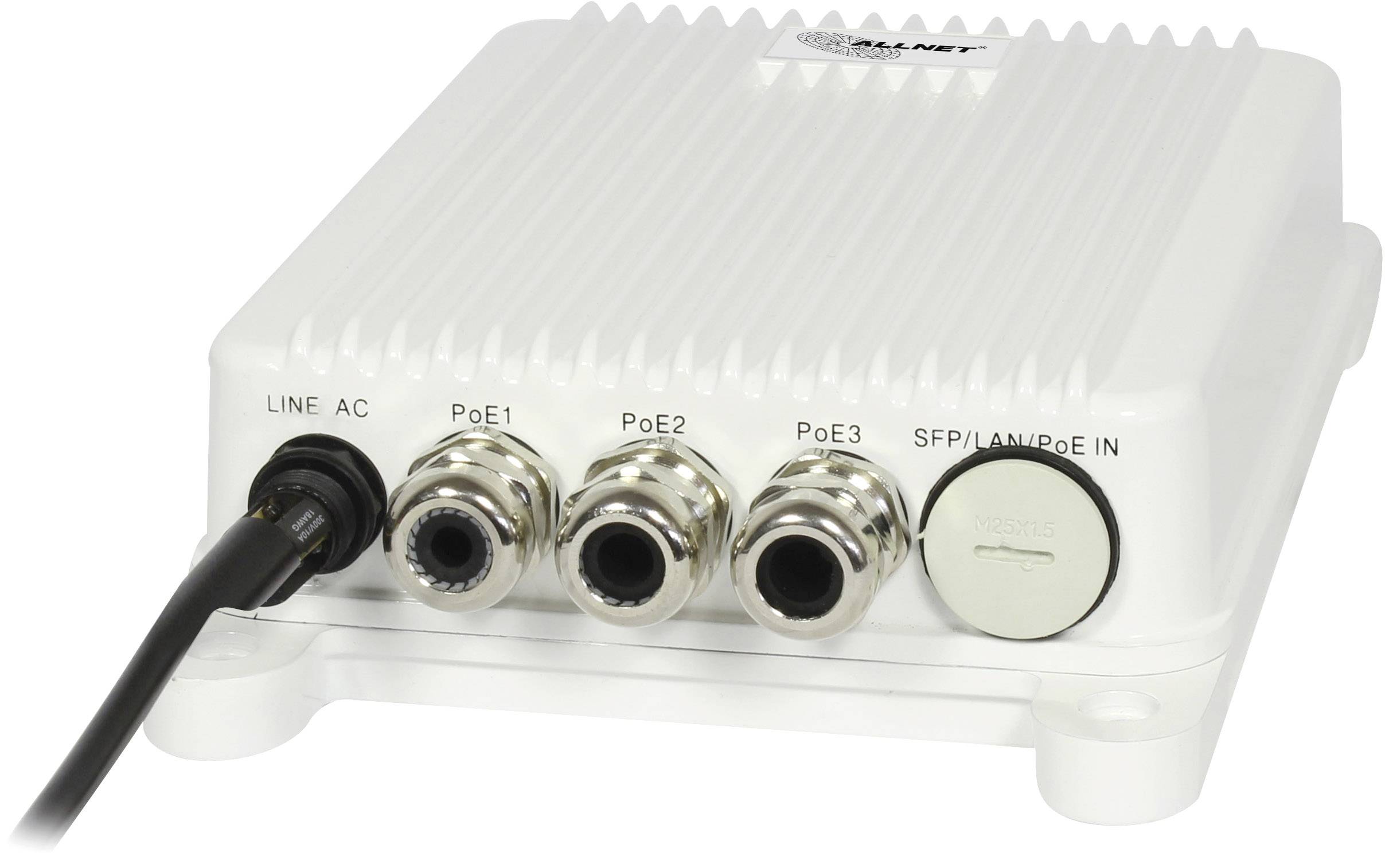

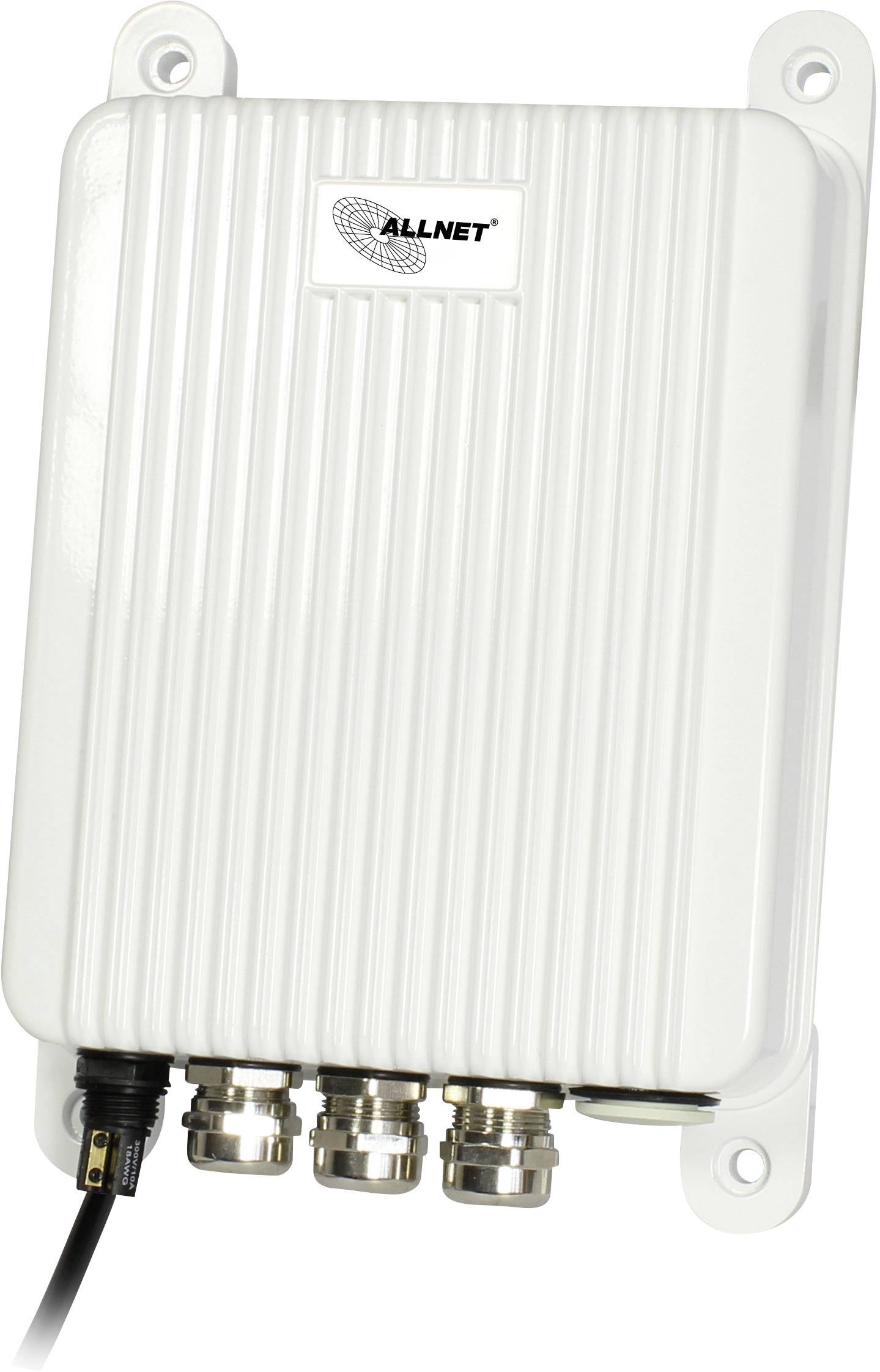

Allnet Switch unmanaged outdoor 3-port Gigabit 100W / 3x PoE+ / 1x SFP / fanless / IP67 / "ALL-SGO8103P
- Fanless metal housing with optimized heat dissipation
- Extended temperature range of -40° ~ +75°
- IP67 protection class with waterproof metal housing
- Surge protection with 6KV (10/700us)
- PoE according to IEEE802.3at (30W) and IEEE802.3af (15.4W)
- Passed Tests: IEC60068-2-6 (Vibration) / IEC60068-2-27 (Impact) / IEC60068-2-32 (Free Fall)
- This text is machine translated.
Technical specifications
- Product type
Network switch
- LAN transfer rate
1000 MBit/s
- Transfer rate
1 GBit/s
- Working principle
Unmanaged switch
- Ethernet ports
3
- IEEE 802.3af PoE
3
- PoE ports
3
- SFP ports
1 x
- No. of 100 Mbps/1Gbps/10Gbps ports
3 x
- 10/100/1000 Mbps ports
3 x
- Fibre-optic ports
1
- Router features
PoE
- Weight
2.7 kg
- Width
150 mm
- Height
50 mm
- Depth
150 mm
- Type
ALL-SGO8103P
- Interfaces
Gigabit LAN (1 Gbps)
IP67
- Factory colour
White
- Max. ambient temperature
75 °C
- Min. ambient temperature
-40 °C
- Port
3 ports
- Length
150 cm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2236192 Allnet 180817 ALL-SGO8103P Network switch 3 ports 1 GBit/s PoE
Description
Features
- Gigabit
- PoE Budget 100 W
- 3 x PoE+
- 1x SFP
- fanless
- IP67
- Outdoor
