Allnet ALL-GHN101-2wire Master Modem Network extender Two-wire Range (max.): 350 m 1 pc(s) 500 Mbps
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Allnet point-to-point modem G.hn via 2-wire
- Up to 500Mbps G.hn port as a home network backbone of one of the Existing telephone line

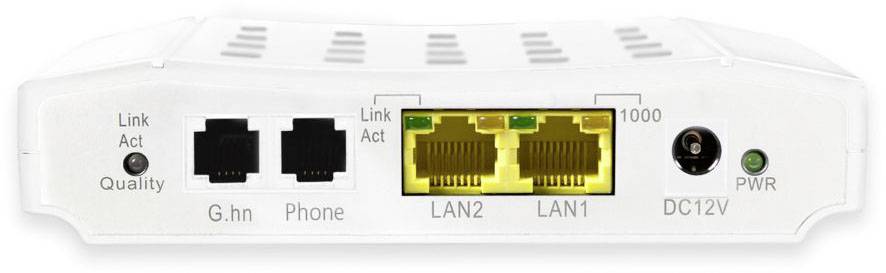

- Two 100 / 1000Mbps Gigabit Ethernet ports for FTTH, DSL / cable modem and Ethernet terminals (PC, set-top box, ...)
- Energy efficiency (green) Ethernet support
- A maximum distance of up to 350 meters over G.hn Port
- Built-in filter to eliminate radiation from telephone or PSTN line
- Indication of signal quality
- 6~76Mhz span frequency thus NOT compatible VDSL and G.HN via the same LINE.
Technical specifications
- Product type
Network extender
- Content
1 pc(s)
- Transfer type
Two-wire
- Range (max.)
350 m
- Bit rate (max.)
500 Mbps
- Interfaces
Gigabit LAN (1 Gbps)
- Width
130 mm
- Height
32 mm
- Length
95 mm
- Weight
135 g
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2352039 Allnet ALL-GHN101-2wire Master Modem Network extender Two-wire Range (max.): 350 m 1 pc(s) 500 Mbps
User & Safety Instructions
User & Safety Instructions 2352039 Allnet ALL-GHN101-2wire Master Modem Network extender Two-wire Range (max.): 350 m 1 pc(s) 500 Mbps
Description
With the G.HN Gigabit Ethernet Bridge ALL-GHN101-2WIRE, you can extend your private network at home via the existing telephone line. No further network cabling is necessary. You can easily use the existing telephone line in the wall. At a frequency of (6-76MHz), co-existence with ADSL and VDSL is NOT guaranteed. With THE ALL-GHN101-2WIRE you can expand your network quickly without new cabling and with little effort.
ATTENTION: The g.hn 2WIRE version is designed for a point-to-point solution. Multiple g.hn connections cannot be established in a multicore cable. These couples would be upset with each other. In electronics, this crosstalk/crosstalk is called. If you use multi-core bundle systems, Allnet also has a VDSL2 vectoring technology in its portfolio.
This text is machine translated.
ATTENTION: The g.hn 2WIRE version is designed for a point-to-point solution. Multiple g.hn connections cannot be established in a multicore cable. These couples would be upset with each other. In electronics, this crosstalk/crosstalk is called. If you use multi-core bundle systems, Allnet also has a VDSL2 vectoring technology in its portfolio.
This text is machine translated.
