Buy Allnet ALL-SG8428PM ALL-SG8428PM Network switch 24 + 4 ports 1000 MBit/s PoE

A network switch with 24 Ethernet ports and 4 additional ports, labelled 'ALL-SG8428PM', displays status LEDs.

A 24-port Gigabit network switch in a black and blue metal enclosure with status indicator LEDs on the front panel.

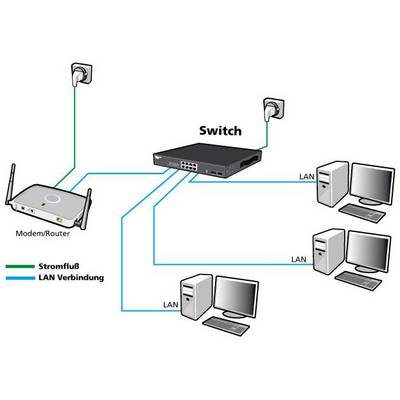

Diagram shows network setup: Modem/router with power connection links via LAN cable to switch. From there, LAN cables connect to multiple computers.

1/4

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Total (€ 352.10 / piece)

€ 352.10

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

ALLNET ALL-SG 8428 PM managed L2 Gigabit Ethernet PoE support 1U Network Switch

24-Port Gigabit non-blocking architecture
It supports NWay Auto-Negotiation Protocol (10/100/1000 Mbps) and duplex mode (half/full) Auto-detection
Supports back-pressure (half duplex), Flow Control (IEEE 802.3x and IEEE 802.3az Energy Efficient Ethernet)
Port-based VLAN:/Tagged is based
Link Aggregation (IEEE 802.3ad LACP)
IGMP Snooping (v1/v2/v3)

Technical specifications

Product type: Network switch

Transfer rate: 1000 MBit/s

IEEE 802.3af PoE: 24

PoE ports: 24

SFP ports: 4 x

10/100/1000 Mbps ports: 24 x

Router features: PoE

Power supply (LOV): mains-powered

MAC addresses: 8000

Width: 441 mm

Height: 45 mm

Depth: 270 mm

Type: ALL-SG8428PM

Interfaces: RJ45
SFP

Port: 24 + 4 ports

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1761308 Allnet ALL-SG8428PM ALL-SG8428PM Network switch 24 + 4 ports 1000 MBit/s PoE

User & Safety Instructions

User & Safety Instructions 1761308 Allnet ALL-SG8428PM ALL-SG8428PM Network switch 24 + 4 ports 1000 MBit/s PoE

Conformity certificate

Conformity certificate 1761308 Allnet ALL-SG8428PM ALL-SG8428PM Network switch 24 + 4 ports 1000 MBit/s PoE

Description

The new ALLNET ALL-SG 8428 PM switch provides a perfect base for small and medium-sized working groups with high network and data volumes and enables a fast data transfer in the network. With a total of 24 backward-compatible gigabit ports are connected reliable and powerful workstations and servers connected to each other. The all-SG 8428 PM can through the internal 450W power supply a maximum PoE budget of 390 W to the terminals.

The 24 Gigabit PoE ports support the PoE standard IEEE802.3af and IEEE 802.3at standard. In the switch on the side of 2 fans are installed by loosening of each of the 2 screws via hot-swap in the event of a fault quickly and easily changed. The sturdy casing made of metal is suitable for installation in a 19" cabinet, as well as also suitable for wall mounting.

This text is machine translated.
